HERCULES CONDENSING ABT 32 3 ErP

Floor-standing condensing boiler with built-in stainless steel storage tank of 120 litres
The customer service provides
prompt answers within 24 hours.

Technical data HERCULES CONDENSING ABT 32 3 ErP

Code 3.025494
C.H. Energy class A
D.H.W. Energy class - Stated load profile A / XL
Heat output kW 32,0
Dimensions (HxWxD) mm 1600 x 600 x 600
Type with storage tank of 120 litres
Modulating heat output 20 - 100%
D.H.W. production (∆t 30°C) Specific flow rate l/min 24,3
D.H.W. production (∆t 30°C) Continuous service l/min 15,3

Technical data HERCULES CONDENSING ABT 32 3 ErP

Code 3.025494
C.H. Energy class A
D.H.W. Energy class - Stated load profile A / XL
Heat output kW 32,0
Dimensions (HxWxD) mm 1600 x 600 x 600
Type with storage tank of 120 litres
Modulating heat output 20 - 100%
D.H.W. production (∆t 30°C) Specific flow rate l/min 24,3
D.H.W. production (∆t 30°C) Continuous service l/min 15,3

Gallery

Floor standing, condensing boiler with built-in 120-liter stainless steel storage tank, for mixed systems.
It represents the best offer for systems with one direct and one mixed zone. Through an optional kit it is possible to add a third mixed zone.
The pumps provided as standard with the boiler and the optional ones, along with the kit, are low electric consumption and  allow maximum energy savings.
The 120-liter stainless steel storage tank guarantees a great production of domestic hot water, making HERCULES CONDENSING ABT 32 3 ErP the ideal solution in those installation systems where several domestic hot water withdrawals are required at the same time and especially where Jacuzzis are installed.

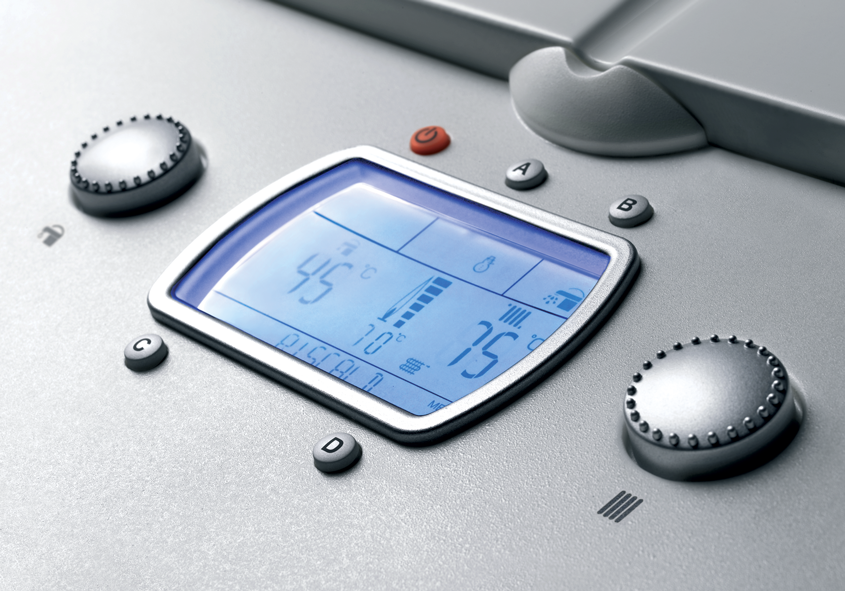

The wide and functional liquid crystals backlit display, allows an easy and immediate visualization of the main functioning information. The advanced electronics allows the coupling of the boiler with the optional kits for the climatic thermoregulation.
Thanks to low emissions of carbon monoxide (CO) and nitrogen oxide (NOX), HERCULES CONDENSING ABT 32 3 ErP belongs to class 5, the most environmentally-friendly class established by the European standards (UNI EN 297 e 483).

...

CARV2 (weekly chronothermostat and modulating remote control)   Cod.3.021395

Class of device V* or VI

Contribution to the environmental heating seasonal energy efficiency 3%* or 4%

*as standard

...

CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control)   Cod.3.021623

Class of device V* or VI

Contribution to the environmental heating seasonal energy efficiency 3%* or 4%

* as standard

...

CRONO 7 (weekly digital chronothermostat)   Cod.3.021622

ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%

* default settings

...

CRONO 7 WIRELESS (wireless weekly digital chronothermostat)   Cod.3.021624

ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating energy efficiency 2%* or 3,5%

* default settings

...

External probe   Cod.3.014083

Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.


Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%

* as standard

...

GSM telephonic control   Cod.3.017182

For buildings not equipped with telephone network. Available for all Immergas models.

...

Relay board kit   Cod.3.015350

Allows interface between zone valves and CAR V2 or SUPER CAR, to send an alarm signal, to manage external pump etc.

To be installed inside internal unit both in MAGIS COMBO V2 and MAGIS PRO V2
...

Safety thermostat kit   Cod.3.019869

For HERCULES Condensing and HERCULES Solar.

...

Super CAR (weekly thermostat and modulating remote control)   Cod.3.016577

Available for: All Superior models and VICTRIX Zeus, HERCULES, ZEUS kW, AVIO kW, NIKE Mini 28 kW Special.

Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%

* as standard

...

Telephonic control   Cod.3.013305

For buildings equipped with telephone network. Available for all Immergas models.

...

Anti-wind vertical terminal kit Ø 80   Cod.3.021721

For condensing boiler < 35 kW.

...

Concentric horizontal complete kit Ø 60/100   Cod.3.012000

Max lenght 12,9 m.
For condensing boiler < 35 kW.

...

Concentric vertical complete kit Ø 60/100 (red ocher colour)   Cod.3.016833

for condensing boilers < 35 kW.

...

HERCULES Condensing B22 - B23 terminal kit   Cod.3.020004

Per modelli non omologati per esterno e aspirazione diretta dell'aria da locale tecnico d'installazione.
Per ARES CONDENSING 32 ErP e gamma HERCULES ErP.

...

Horizontal concentric complete kit Ø 60/100 Short   Cod.3.024598

Max lenght 11,9 m.
For condensing boiler < 35 kW.

...

Horizontal concentric complete kit Ø 60/100 with swivel terminal   Cod.3.024267

Max lenght 9,9 m.
For condensing boiler < 35 kW except HP models.
...

Terminal vertical outlet kit Ø 80   Cod.3.015256

For condensing boiler < 35 kW.

...

Twin pipes complete kit Ø 80/80   Cod.3.012002

For condensing boiler < 35 kW.

...

Additional low temperature zone kit for HERCULES CONDENSING ABT 32 ErP   Cod.3.025486

Modulating low consumption pump.

...

Anti-scale kit for HERCULES Condensing ErP   Cod.3.019999





...

Clock kit for Recirculation   Cod.3.015431

To be used to manage the recirculation pump.

...

Condensate discharge pump kit   Cod.3.026841

For floor standing boilers: compact condensate drain pump kit.

...

DIM 2 ZONES ErP   Cod.3.025607

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
...

DIM 3 ZONES ErP   Cod.3.025608

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
...

DIM BASIC ErP   Cod.3.025606

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold and 1 low-consumption pump.
...

DIM H-2LT ErP   Cod.3.025610

Kit for mixed systems with 2 low temperature zones and 1 high temperature zone.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps, 2 mixing valves and electronic board.

...

DIM H-LT ErP   Cod.3.025609

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
...

Recirculation kit   Cod.3.020001

Domestic hot water pump included.
Available for: HERCULES Condensing ErP and HERCULES SOLAR 26 2 ErP.
...

Solar panel kit for HERCULES Condensing ErP   Cod.3.019998

It includes pipes and fittings. For connecting 1 Flat-Plate or Vacuum Collector.
It must be used coupled with the typical BASIC SOL TOP and BASIC SOL LUX TOP packs.

Floor standing, condensing boiler with built-in 120-liter stainless steel storage tank, for mixed systems.
It represents the best offer for systems with one direct and one mixed zone. Through an optional kit it is possible to add a third mixed zone.
The pumps provided as standard with the boiler and the optional ones, along with the kit, are low electric consumption and  allow maximum energy savings.
The 120-liter stainless steel storage tank guarantees a great production of domestic hot water, making HERCULES CONDENSING ABT 32 3 ErP the ideal solution in those installation systems where several domestic hot water withdrawals are required at the same time and especially where Jacuzzis are installed.
The wide and functional liquid crystals backlit display, allows an easy and immediate visualization of the main functioning information. The advanced electronics allows the coupling of the boiler with the optional kits for the climatic thermoregulation.
Thanks to low emissions of carbon monoxide (CO) and nitrogen oxide (NOX), HERCULES CONDENSING ABT 32 3 ErP belongs to class 5, the most environmentally-friendly class established by the European standards (UNI EN 297 e 483).

...

CARV2 (weekly chronothermostat and modulating remote control)   Cod.3.021395

Class of device V* or VI

Contribution to the environmental heating seasonal energy efficiency 3%* or 4%

*as standard

...

CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control)   Cod.3.021623

Class of device V* or VI

Contribution to the environmental heating seasonal energy efficiency 3%* or 4%

* as standard

...

CRONO 7 (weekly digital chronothermostat)   Cod.3.021622

ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%

* default settings

...

CRONO 7 WIRELESS (wireless weekly digital chronothermostat)   Cod.3.021624

ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating energy efficiency 2%* or 3,5%

* default settings

...

External probe   Cod.3.014083

Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.


Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%

* as standard

...

GSM telephonic control   Cod.3.017182

For buildings not equipped with telephone network. Available for all Immergas models.

...

Relay board kit   Cod.3.015350

Allows interface between zone valves and CAR V2 or SUPER CAR, to send an alarm signal, to manage external pump etc.

To be installed inside internal unit both in MAGIS COMBO V2 and MAGIS PRO V2
...

Safety thermostat kit   Cod.3.019869

For HERCULES Condensing and HERCULES Solar.

...

Super CAR (weekly thermostat and modulating remote control)   Cod.3.016577

Available for: All Superior models and VICTRIX Zeus, HERCULES, ZEUS kW, AVIO kW, NIKE Mini 28 kW Special.

Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%

* as standard

...

Telephonic control   Cod.3.013305

For buildings equipped with telephone network. Available for all Immergas models.

...

Anti-wind vertical terminal kit Ø 80   Cod.3.021721

For condensing boiler < 35 kW.

...

Concentric horizontal complete kit Ø 60/100   Cod.3.012000

Max lenght 12,9 m.
For condensing boiler < 35 kW.

...

Concentric vertical complete kit Ø 60/100 (red ocher colour)   Cod.3.016833

for condensing boilers < 35 kW.

...

HERCULES Condensing B22 - B23 terminal kit   Cod.3.020004

Per modelli non omologati per esterno e aspirazione diretta dell'aria da locale tecnico d'installazione.
Per ARES CONDENSING 32 ErP e gamma HERCULES ErP.

...

Horizontal concentric complete kit Ø 60/100 Short   Cod.3.024598

Max lenght 11,9 m.
For condensing boiler < 35 kW.

...

Horizontal concentric complete kit Ø 60/100 with swivel terminal   Cod.3.024267

Max lenght 9,9 m.
For condensing boiler < 35 kW except HP models.
...

Terminal vertical outlet kit Ø 80   Cod.3.015256

For condensing boiler < 35 kW.

...

Twin pipes complete kit Ø 80/80   Cod.3.012002

For condensing boiler < 35 kW.

...

Additional low temperature zone kit for HERCULES CONDENSING ABT 32 ErP   Cod.3.025486

Modulating low consumption pump.

...

Anti-scale kit for HERCULES Condensing ErP   Cod.3.019999





...

Clock kit for Recirculation   Cod.3.015431

To be used to manage the recirculation pump.

...

Condensate discharge pump kit   Cod.3.026841

For floor standing boilers: compact condensate drain pump kit.

...

DIM 2 ZONES ErP   Cod.3.025607

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
...

DIM 3 ZONES ErP   Cod.3.025608

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
...

DIM BASIC ErP   Cod.3.025606

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold and 1 low-consumption pump.
...

DIM H-2LT ErP   Cod.3.025610

Kit for mixed systems with 2 low temperature zones and 1 high temperature zone.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps, 2 mixing valves and electronic board.

...

DIM H-LT ErP   Cod.3.025609

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
...

Recirculation kit   Cod.3.020001

Domestic hot water pump included.
Available for: HERCULES Condensing ErP and HERCULES SOLAR 26 2 ErP.
...

Solar panel kit for HERCULES Condensing ErP   Cod.3.019998

It includes pipes and fittings. For connecting 1 Flat-Plate or Vacuum Collector.
It must be used coupled with the typical BASIC SOL TOP and BASIC SOL LUX TOP packs.
