VICTRIX EXA 28 1 ErP
Wall-hung compact condensing boiler
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Technical data VICTRIX EXA 28 1 ErP |
|
|---|---|
| Code | 3.025778 |
| C.H. Energy class | A |
| D.H.W. Energy class - Stated load profile | A / XL |
| Heat output C.H. kW | 23.7 |
| Heat output D.H.W. kW | 27.7 |
| Dimensions (HxWxD) mm | 763 x 440 x 303 |
| Type | Combi |
| Modulating heat output | 23 - 100% |
Technical data VICTRIX EXA 28 1 ErP |
|
|---|---|
| Code | 3.025778 |
| C.H. Energy class | A |
| D.H.W. Energy class - Stated load profile | A / XL |
| Heat output C.H. kW | 23.7 |
| Heat output D.H.W. kW | 27.7 |
| Dimensions (HxWxD) mm | 763 x 440 x 303 |
| Type | Combi |
| Modulating heat output | 23 - 100% |
Gallery
Heat output: 24 kW (central heating mode) / 28 kW (DHW production mode).
VICTRIX EXA 1 ErP is the new-generation boiler range, born for new installations and the replacemnet of existing systems. Designed to meet the new ErP and EL European Directives requirements on energy use, VICTRIX EXA 1 ErP boilers make high system efficiency classes both in central heating and DHW production easier and easier to achieve.

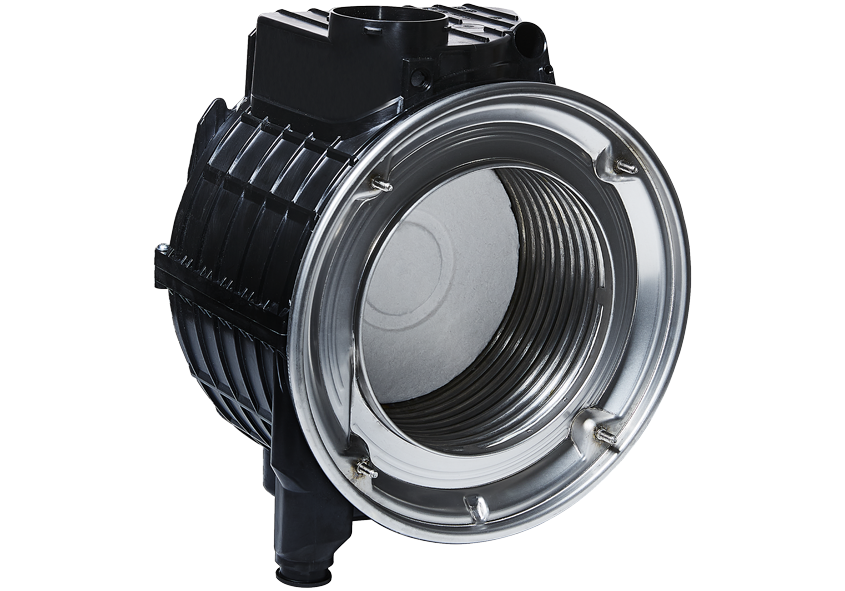

Key factors in the new range energy efficiency performances are the stainless steel condensing module and the new low energy consumption circulation pump. Power output modulation range up to 23 % of the overall capacity.

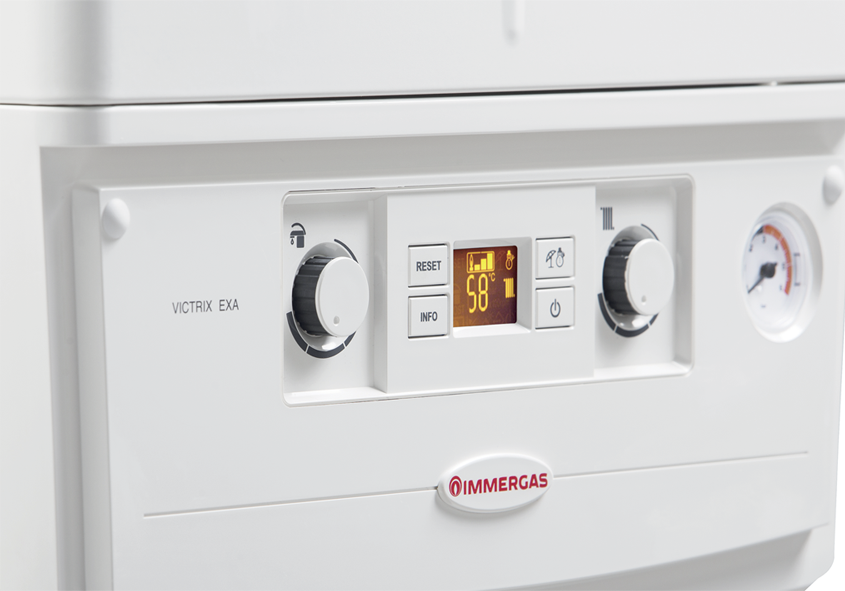

The user-friendly interface has adjustment knobs, selection buttons and LCD display, showing the operating status and any error codes. VICTRIX EXA 1 ErP boilers could be remotely controlled by means of PCs, smartphones and tablet touchscreens (DOMINUS app will be available starting from December 2015). The connection pipes covering panel is supplied as a standard, for the most harmonious integration with the whole domestic style.
Certified to be installed indoor as well as outdoor in partially sheltered places thanks to the IPX5D electric protection, the boiler is supplied with a -5°C anti-freeze kit as standard.
CARV2 (weekly chronothermostat and modulating remote control) Cod.3.021395
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
*as standard
CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control) Cod.3.021623
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%
* default settings
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating energy efficiency 2%* or 3,5%
* default settings
Control box for pumps and zone Cod.3.011668
Maximum three zones.
Available for all models except VICTRIX TERA VIP, VICTRIX TERA/X, MYTHOS HP. NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
Electrical box cover plate kit for SMARTECH PLUS Cod.3.031013
It allows the covering of the wall hole for electrical boxes type 503.
Expansion kit for SMARTECH PLUS Cod.3.030911
For controlling the temperature in several areas of the house (example living and sleeping areas).
The kit includes: additional SMART thermostat and wi-fi relay (in this case the wi-fi network is required).
External probe Cod.3.014083
Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%
* as standard
GSM telephonic control Cod.3.017182
For buildings not equipped with telephone network. Available for all Immergas models.
MINI CRD (MINI weekly chronothermostat and modulating remote control) Cod.3.020167
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
Relay board kit Cod.3.015350
Allows interface between zone valves and CAR V2 or SUPER CAR, to send an alarm signal, to manage external pump etc.
To be installed inside internal unit both in MAGIS COMBO V2 and MAGIS PRO V2
SMARTECH PLUS - SMART remote control Cod.3.030909
Hi-tech smart wireless remote control with Bluetooth technology
The kit includes:
• Chronothermostat (to be placed where you want to adjust the temperature)
• Gateway (to be connected to the boiler or to the internet network at home - power supply 230 V)
• Wall fixing base (with leveling bubble integrated)
• Table stand
• 2 power batteries (as standard)
• Functioning room temperature: 0 - +40 °C
• Protection rating IP 20
Temperature control class: V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%
*default settings.
Telephonic control Cod.3.013305
For buildings equipped with telephone network. Available for all Immergas models.
Anti-wind vertical terminal kit Ø 80 Cod.3.021721
For condensing boiler < 35 kW.
Concentric horizontal complete kit Ø 60/100 Cod.3.012000
Max lenght 12,9 m.
For condensing boiler < 35 kW.
Concentric vertical complete kit Ø 60/100 (red ocher colour) Cod.3.016833
for condensing boilers < 35 kW.
Horizontal concentric complete kit Ø 60/100 Short Cod.3.024598
Max lenght 11,9 m.
For condensing boiler < 35 kW.
Horizontal concentric complete kit Ø 60/100 with swivel terminal Cod.3.024267
Max lenght 9,9 m.
For condensing boiler < 35 kW except HP models.
Terminal vertical outlet kit Ø 80 Cod.3.015256
For condensing boiler < 35 kW.
Twin pipes complete kit Ø 80/80 Cod.3.012002
For condensing boiler < 35 kW.
Heat output: 24 kW (central heating mode) / 28 kW (DHW production mode).
VICTRIX EXA 1 ErP is the new-generation boiler range, born for new installations and the replacemnet of existing systems. Designed to meet the new ErP and EL European Directives requirements on energy use, VICTRIX EXA 1 ErP boilers make high system efficiency classes both in central heating and DHW production easier and easier to achieve.
Key factors in the new range energy efficiency performances are the stainless steel condensing module and the new low energy consumption circulation pump. Power output modulation range up to 23 % of the overall capacity.
The user-friendly interface has adjustment knobs, selection buttons and LCD display, showing the operating status and any error codes. VICTRIX EXA 1 ErP boilers could be remotely controlled by means of PCs, smartphones and tablet touchscreens (DOMINUS app will be available starting from December 2015). The connection pipes covering panel is supplied as a standard, for the most harmonious integration with the whole domestic style.
Certified to be installed indoor as well as outdoor in partially sheltered places thanks to the IPX5D electric protection, the boiler is supplied with a -5°C anti-freeze kit as standard.
CARV2 (weekly chronothermostat and modulating remote control) Cod.3.021395
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
*as standard
CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control) Cod.3.021623
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%
* default settings
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating energy efficiency 2%* or 3,5%
* default settings
Control box for pumps and zone Cod.3.011668
Maximum three zones.
Available for all models except VICTRIX TERA VIP, VICTRIX TERA/X, MYTHOS HP. NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
Electrical box cover plate kit for SMARTECH PLUS Cod.3.031013
It allows the covering of the wall hole for electrical boxes type 503.
Expansion kit for SMARTECH PLUS Cod.3.030911
For controlling the temperature in several areas of the house (example living and sleeping areas).
The kit includes: additional SMART thermostat and wi-fi relay (in this case the wi-fi network is required).
External probe Cod.3.014083
Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%
* as standard
GSM telephonic control Cod.3.017182
For buildings not equipped with telephone network. Available for all Immergas models.
MINI CRD (MINI weekly chronothermostat and modulating remote control) Cod.3.020167
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
Relay board kit Cod.3.015350
Allows interface between zone valves and CAR V2 or SUPER CAR, to send an alarm signal, to manage external pump etc.
To be installed inside internal unit both in MAGIS COMBO V2 and MAGIS PRO V2
SMARTECH PLUS - SMART remote control Cod.3.030909
Hi-tech smart wireless remote control with Bluetooth technology
The kit includes:
• Chronothermostat (to be placed where you want to adjust the temperature)
• Gateway (to be connected to the boiler or to the internet network at home - power supply 230 V)
• Wall fixing base (with leveling bubble integrated)
• Table stand
• 2 power batteries (as standard)
• Functioning room temperature: 0 - +40 °C
• Protection rating IP 20
Temperature control class: V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%
*default settings.
Telephonic control Cod.3.013305
For buildings equipped with telephone network. Available for all Immergas models.
Anti-wind vertical terminal kit Ø 80 Cod.3.021721
For condensing boiler < 35 kW.
Concentric horizontal complete kit Ø 60/100 Cod.3.012000
Max lenght 12,9 m.
For condensing boiler < 35 kW.
Concentric vertical complete kit Ø 60/100 (red ocher colour) Cod.3.016833
for condensing boilers < 35 kW.
Horizontal concentric complete kit Ø 60/100 Short Cod.3.024598
Max lenght 11,9 m.
For condensing boiler < 35 kW.
Horizontal concentric complete kit Ø 60/100 with swivel terminal Cod.3.024267
Max lenght 9,9 m.
For condensing boiler < 35 kW except HP models.
Terminal vertical outlet kit Ø 80 Cod.3.015256
For condensing boiler < 35 kW.
Twin pipes complete kit Ø 80/80 Cod.3.012002
For condensing boiler < 35 kW.
