NIKE MINI 28 kW SPECIAL
Wall-hung combi traditional boiler with "Aqua Celeris"
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Technical data NIKE MINI 28 kW SPECIAL |
|
|---|---|
| Code | 3.018921 |
| Heat output kW | 27,9 |
| Dimensions (HxWxD) mm | 740 x 450 x 310 |
| Type | combi |
| Modulating heat output | 40 - 100% |
| D.H.W. production (∆t 30°C) l/min | 13,3 |
Technical data NIKE MINI 28 kW SPECIAL |
|
|---|---|
| Code | 3.018921 |
| Heat output kW | 27,9 |
| Dimensions (HxWxD) mm | 740 x 450 x 310 |
| Type | combi |
| Modulating heat output | 40 - 100% |
| D.H.W. production (∆t 30°C) l/min | 13,3 |
Gallery

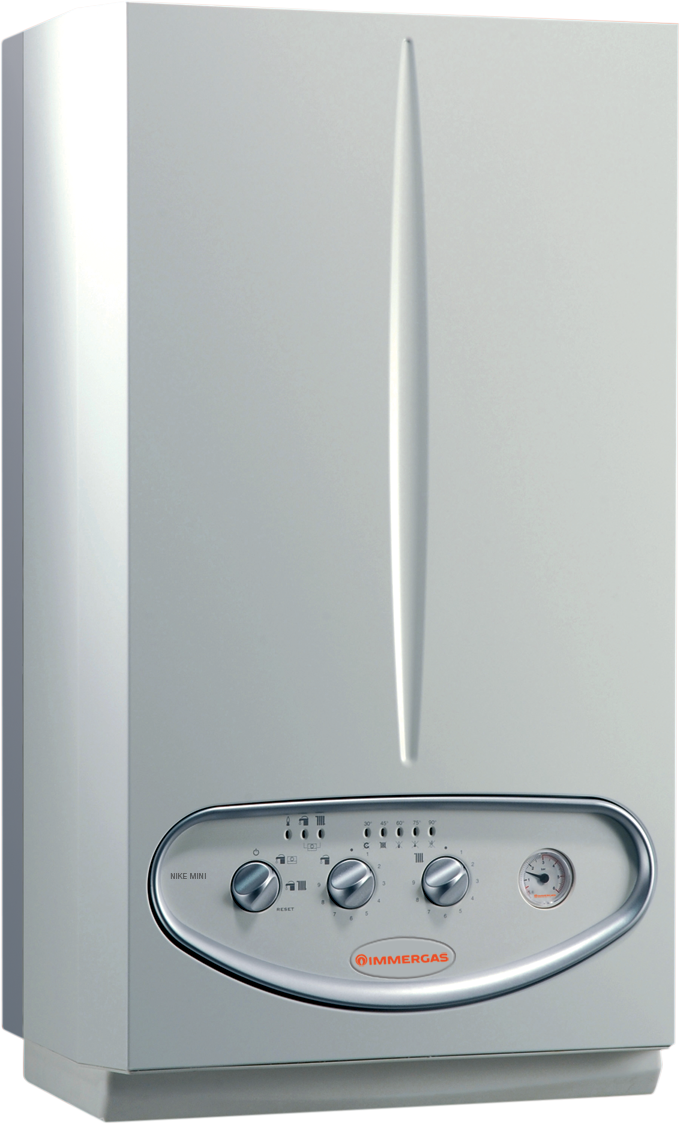

Wall-hung combi open chamber and conventional flue boiler.
The compact dimensions and the reduced weight guarantee the maximum comfort and installation ease.
Through the user-friendly knobs of the control board it is possible to set the delivery and domestic hot water temperature. Self-diagnosis led allows the visualization of the boiler's operating status or the warning of eventual error codes.
The microprocessor based electronics allows the coupling of the boiler with the optional kits for the climatic thermoregulation.
This product is not for sales in EU market.
CARV2 (weekly chronothermostat and modulating remote control) Cod.3.021395
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
*as standard
CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control) Cod.3.021623
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%
* default settings
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating energy efficiency 2%* or 3,5%
* default settings
Control box for pumps and zone Cod.3.011668
Maximum three zones.
Available for all models except VICTRIX TERA VIP, VICTRIX TERA/X, MYTHOS HP. NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
External probe Cod.3.014083
Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%
* as standard
GSM telephonic control Cod.3.017182
For buildings not equipped with telephone network. Available for all Immergas models.
Super CAR (weekly thermostat and modulating remote control) Cod.3.016577
Available for: All Superior models and VICTRIX Zeus, HERCULES, ZEUS kW, AVIO kW, NIKE Mini 28 kW Special.
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
Telephonic control Cod.3.013305
For buildings equipped with telephone network. Available for all Immergas models.
Anti-scale kit Cod.3.016305
Available for: MAIOR EOLO, NIKE Mini 28 kW Special and MINI NIKE/EOLO.
Connection kit for NIKE Mini 28 kW Special Cod.3.016671
DIM 2 ZONES ErP Cod.3.025607
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
DIM 3 ZONES ErP Cod.3.025608
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
DIM BASIC ErP Cod.3.025606
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold and 1 low-consumption pump.
Hydraulic manifold and 1 low-consumption pump.
DIM H-2LT ErP Cod.3.025610
Kit for mixed systems with 2 low temperature zones and 1 high temperature zone.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps, 2 mixing valves and electronic board.
DIM H-LT ErP Cod.3.025609
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
Solar valve Cod.3.018911
Allows the connection between combi boiler and solar system.
Available for: VICTRIX Superior TOP, VICTRIX, MAIOR EOLO, NIKE Mini 28 kW Special, MINI NIKE/EOLO and NIKE/EOLO Star.
Wall-hung combi open chamber and conventional flue boiler.
The compact dimensions and the reduced weight guarantee the maximum comfort and installation ease.
Through the user-friendly knobs of the control board it is possible to set the delivery and domestic hot water temperature. Self-diagnosis led allows the visualization of the boiler's operating status or the warning of eventual error codes.
The microprocessor based electronics allows the coupling of the boiler with the optional kits for the climatic thermoregulation.
This product is not for sales in EU market.
CARV2 (weekly chronothermostat and modulating remote control) Cod.3.021395
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
*as standard
CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control) Cod.3.021623
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%
* default settings
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating energy efficiency 2%* or 3,5%
* default settings
Control box for pumps and zone Cod.3.011668
Maximum three zones.
Available for all models except VICTRIX TERA VIP, VICTRIX TERA/X, MYTHOS HP. NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
External probe Cod.3.014083
Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%
* as standard
GSM telephonic control Cod.3.017182
For buildings not equipped with telephone network. Available for all Immergas models.
Super CAR (weekly thermostat and modulating remote control) Cod.3.016577
Available for: All Superior models and VICTRIX Zeus, HERCULES, ZEUS kW, AVIO kW, NIKE Mini 28 kW Special.
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
Telephonic control Cod.3.013305
For buildings equipped with telephone network. Available for all Immergas models.
Anti-scale kit Cod.3.016305
Available for: MAIOR EOLO, NIKE Mini 28 kW Special and MINI NIKE/EOLO.
Connection kit for NIKE Mini 28 kW Special Cod.3.016671
DIM 2 ZONES ErP Cod.3.025607
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
DIM 3 ZONES ErP Cod.3.025608
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
DIM BASIC ErP Cod.3.025606
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold and 1 low-consumption pump.
Hydraulic manifold and 1 low-consumption pump.
DIM H-2LT ErP Cod.3.025610
Kit for mixed systems with 2 low temperature zones and 1 high temperature zone.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps, 2 mixing valves and electronic board.
DIM H-LT ErP Cod.3.025609
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
Solar valve Cod.3.018911
Allows the connection between combi boiler and solar system.
Available for: VICTRIX Superior TOP, VICTRIX, MAIOR EOLO, NIKE Mini 28 kW Special, MINI NIKE/EOLO and NIKE/EOLO Star.
