BASIC SOL V2
Solar pack with forced circulation with 1 CP4 XL flat-plate collector for coupling with HERCULES Condensing ErP boilers
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Technical data BASIC SOL V2 |
|
|---|---|
| Code | 3.025641 |
| Number of collectors | 1 |
| Collector type | CP4 XL Flat-Plate |
| Solar expansion vessel (litres) | 18 |
| Tank of premixed glycol (n°) | 1 of 20 kg |
Technical data BASIC SOL V2 |
|
|---|---|
| Code | 3.025641 |
| Number of collectors | 1 |
| Collector type | CP4 XL Flat-Plate |
| Solar expansion vessel (litres) | 18 |
| Tank of premixed glycol (n°) | 1 of 20 kg |
Gallery
This solar pack, for the production of domestic hot water, includes as per standard:
- 1 CP4 XL Flat-Plate Collector (2,52 m2 of gross surface) complete with 1 aluminium support frame for one vertically installed collector
- Single low consumption pump station with safety valve 6 bar and flow rate regulator (1-6 l/min) with relative connection kit
- Solar central unit with temperature probes (Storage Tank Unit and Collector)

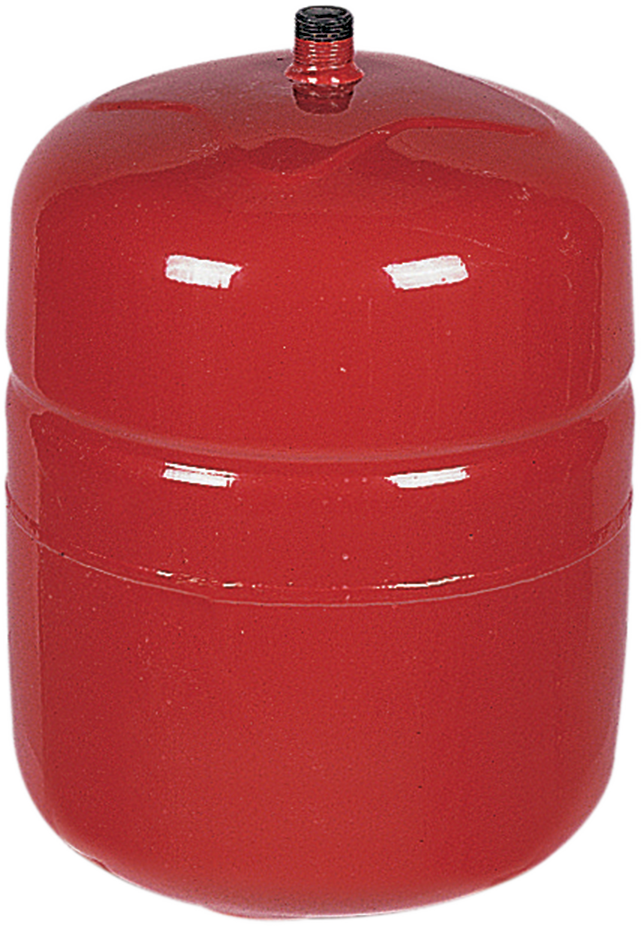

- 18 litre expansion vessel with accessories

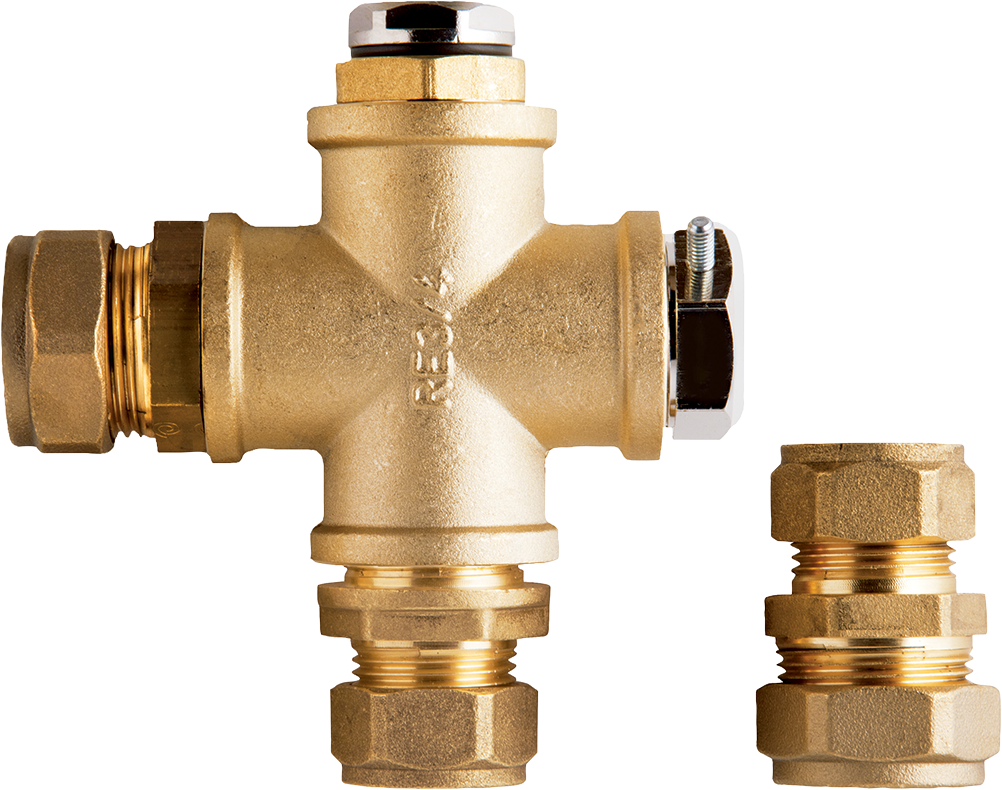

- Complete hydraulic fittings for mounting the collector

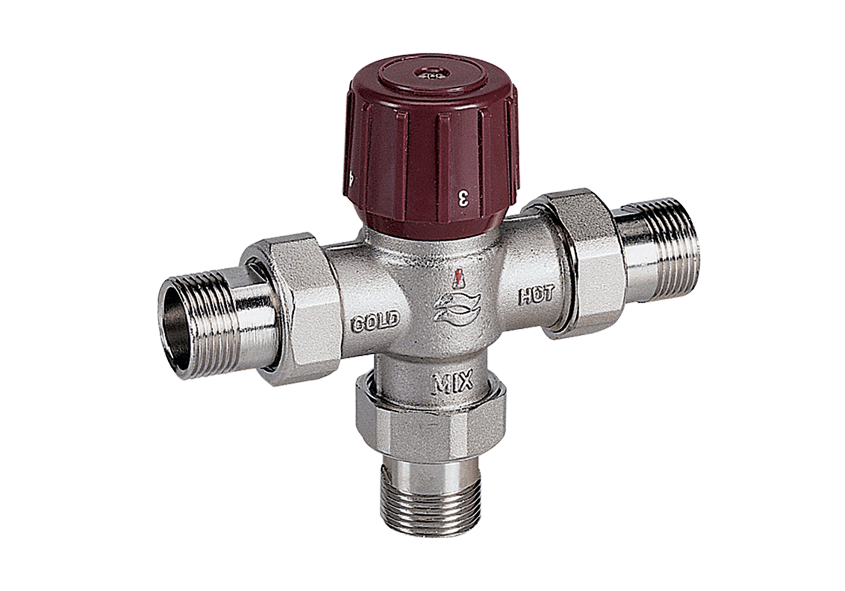

- ¾" adjustable thermostatic mixing valve

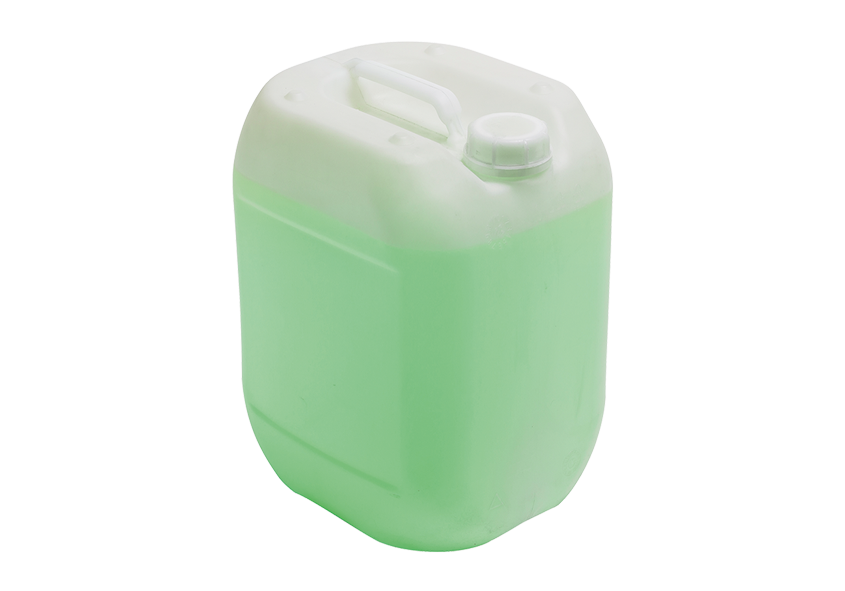

- 1 tank of 20 kg of premixed glycol

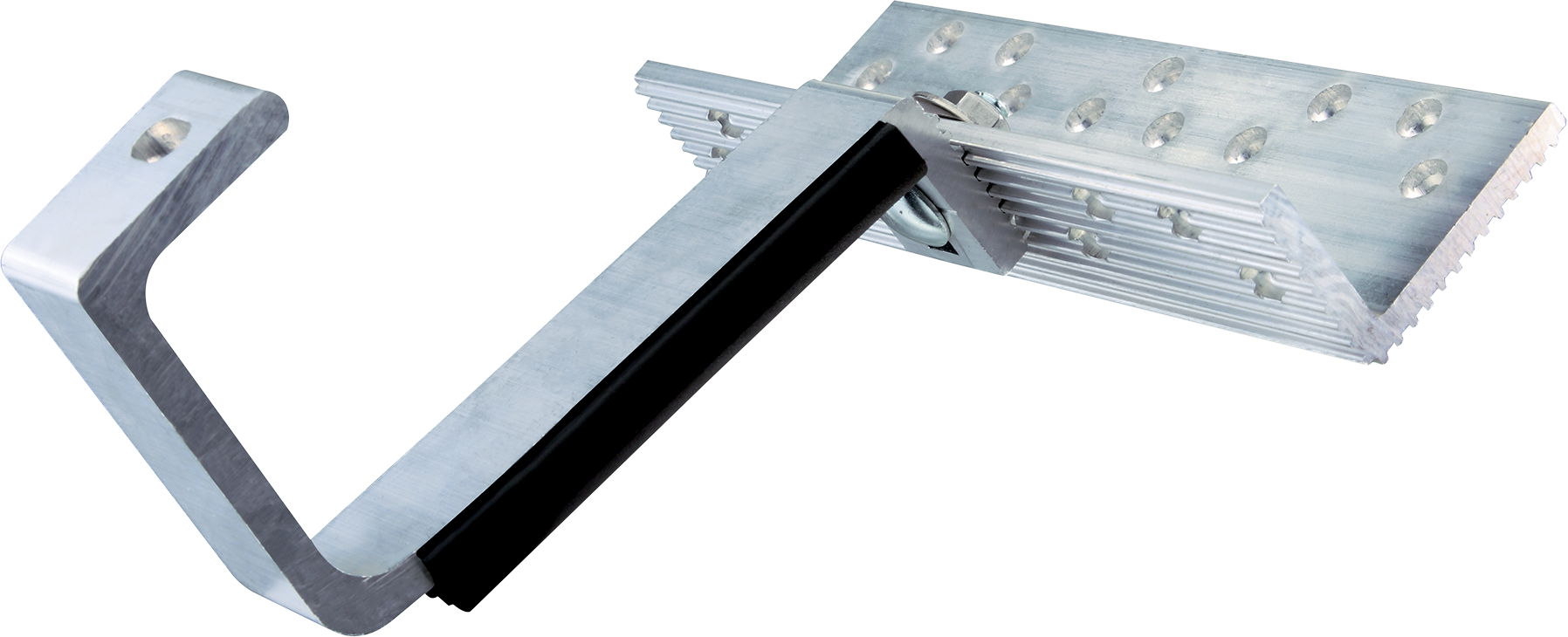

- 4 brackets for slates and tiles for planar installation on sloped roofs with relative fixing accessories
2 plug kit for CP4 XL/M Flat-Plate Collector Cod.3.020364
The kit includes: 2 mechanical sealing plugs to close fittings not used by CP4 XL/M Flat-Plate Collector.
4 "L"-shaped brackets kit for slates/tiles on smooth roofs for CP4 XL/M Flat-Plate Collector Cod.3.022776
The kit includes: 4 brackets.
It allows to fix the selector frame onto smooth roofs (for 1 collector). Always add the fixing element kit code 3.022922.
4 brackets kit for slates/tiles to be drilled for CP4 XL/M Flat-Plate Collector Cod.3.019105
The kit includes: 4 brackets.
It allows to fix the collector frame onto sloped roofs.
Always add the fixing element kit code 3.022922.
Always add the fixing element kit code 3.022922.
Basic free-standing 45° installation kit for 1 vertical CP4 XL/M Flat-Plate Collector Cod.3.022674
The kit includes: 4 profiles , 2 collector side fixing brackets.
Cover for CP4 XL Flat-Plate Collector Cod.1.033271
Allows to cover the collector to guarantee its integrity until it is filled.
DN 16 steel pipe connection kit for collectors Cod.3.019125
The kit includes:
double DN 16 insulated 15 m long steel pipe integrated cable for solar collector temperature probe.
DN 20 steel pipe connection kit for collectors Cod.3.020354
The kit includes:
double DN 20 insulated 15 m long steel pipe integrated cable for solar collector temperature probe hydraulic fittings for connections.
Frame on tiles kit for 1 horizontal CP4 XL/M Flat-Plate Collector Cod.3.022749
The kit includes: 2 horizontal profiles.
(the profiles must be shortened when using CP4 M)
Free-standing 45° installation kit for 1 Flat-Plate Collector Cod.3.022750
The kit includes: 4 profiles, 2 collector side fixing brackets.
(the horizontal profiles must be shortened when using CP4 M)
Recessed kit for 1 Flat-Plate Collector Cod.3.022213
The kit includes: special waterproof trays, perimeter frames, waterproofing sheath.
System filling pump station Cod.3.018742
Ideal for correctly filling the forced circulation solar system with the waterglycol solution.
Vent kit and fitting for Ø 22 mm pipe for horizontal CP4 XL/M Flat-Plate Collector Cod.3.022849
This kit is used in applications with horizontal CP4 XL/M Flat-Plate.
¾" nut kit for DN 16 steel pipe Cod.1.027255
For connection to solar collectors.
Ø 18 copper pipe connection kit for collectors Cod.3.019089
The kit includes:
double Ø 18 mm insulated 15 m long copper pipe integrated cable for solar collector temperature probe.
This solar pack, for the production of domestic hot water, includes as per standard:
- 1 CP4 XL Flat-Plate Collector (2,52 m2 of gross surface) complete with 1 aluminium support frame for one vertically installed collector
- Single low consumption pump station with safety valve 6 bar and flow rate regulator (1-6 l/min) with relative connection kit
- Solar central unit with temperature probes (Storage Tank Unit and Collector)
- 18 litre expansion vessel with accessories
- Complete hydraulic fittings for mounting the collector
- ¾" adjustable thermostatic mixing valve
- 1 tank of 20 kg of premixed glycol
- 4 brackets for slates and tiles for planar installation on sloped roofs with relative fixing accessories
2 plug kit for CP4 XL/M Flat-Plate Collector Cod.3.020364
The kit includes: 2 mechanical sealing plugs to close fittings not used by CP4 XL/M Flat-Plate Collector.
4 "L"-shaped brackets kit for slates/tiles on smooth roofs for CP4 XL/M Flat-Plate Collector Cod.3.022776
The kit includes: 4 brackets.
It allows to fix the selector frame onto smooth roofs (for 1 collector). Always add the fixing element kit code 3.022922.
4 brackets kit for slates/tiles to be drilled for CP4 XL/M Flat-Plate Collector Cod.3.019105
The kit includes: 4 brackets.
It allows to fix the collector frame onto sloped roofs.
Always add the fixing element kit code 3.022922.
Always add the fixing element kit code 3.022922.
Basic free-standing 45° installation kit for 1 vertical CP4 XL/M Flat-Plate Collector Cod.3.022674
The kit includes: 4 profiles , 2 collector side fixing brackets.
Cover for CP4 XL Flat-Plate Collector Cod.1.033271
Allows to cover the collector to guarantee its integrity until it is filled.
DN 16 steel pipe connection kit for collectors Cod.3.019125
The kit includes:
double DN 16 insulated 15 m long steel pipe integrated cable for solar collector temperature probe.
DN 20 steel pipe connection kit for collectors Cod.3.020354
The kit includes:
double DN 20 insulated 15 m long steel pipe integrated cable for solar collector temperature probe hydraulic fittings for connections.
Frame on tiles kit for 1 horizontal CP4 XL/M Flat-Plate Collector Cod.3.022749
The kit includes: 2 horizontal profiles.
(the profiles must be shortened when using CP4 M)
Free-standing 45° installation kit for 1 Flat-Plate Collector Cod.3.022750
The kit includes: 4 profiles, 2 collector side fixing brackets.
(the horizontal profiles must be shortened when using CP4 M)
Recessed kit for 1 Flat-Plate Collector Cod.3.022213
The kit includes: special waterproof trays, perimeter frames, waterproofing sheath.
System filling pump station Cod.3.018742
Ideal for correctly filling the forced circulation solar system with the waterglycol solution.
Vent kit and fitting for Ø 22 mm pipe for horizontal CP4 XL/M Flat-Plate Collector Cod.3.022849
This kit is used in applications with horizontal CP4 XL/M Flat-Plate.
¾" nut kit for DN 16 steel pipe Cod.1.027255
For connection to solar collectors.
Ø 18 copper pipe connection kit for collectors Cod.3.019089
The kit includes:
double Ø 18 mm insulated 15 m long copper pipe integrated cable for solar collector temperature probe.
