VICTRIX ZEUS 32

Wall-hung condensing boiler with built-in stainless steel storage tank of 45 litres
The customer service provides
prompt answers within 24 hours.
3 star marking sanitary comfort
User-friendly interface
New modern design

Technical data VICTRIX ZEUS 32

Code 3.028382
C.H. Energy class A
D.H.W. Energy class - Stated load profile A / XL
Heat output C.H. kW 28
Heat output D.H.W. kW 32
Dimensions (HxWxD) mm 900 x 580 x 410
Type storage tank of 45 litres
Modulating heat output 17 - 100%
D.H.W. production (∆t 30°C) Specific flow rate l/min 16,0
D.H.W. production (∆t 30°C) Continuous service l/min 15,1

Technical data VICTRIX ZEUS 32

Code 3.028382
C.H. Energy class A
D.H.W. Energy class - Stated load profile A / XL
Heat output C.H. kW 28
Heat output D.H.W. kW 32
Dimensions (HxWxD) mm 900 x 580 x 410
Type storage tank of 45 litres
Modulating heat output 17 - 100%
D.H.W. production (∆t 30°C) Specific flow rate l/min 16,0
D.H.W. production (∆t 30°C) Continuous service l/min 15,1

Gallery

Wall-hung condensing boiler, with integrated 45 liters stainless steel storage tank.
Nominal heat output: 32,0 kW DHW and 28,0 kW central heating.
The capacity of the 45 liters stainless steel storage tank combined with the great thermoregulation allows the best in terms of domestic hot water performances. It is therefore an ideal solution when several withdrawals of domestic hot water are needed at the same time. The compact dimensions make the installation ideal in any domestic living space, also replacing the old boiler versions with an integrated storage tank.
The wide modulating heat output, from 17% to 100% of the power output perfectly heats also homes with reduced heat demand.
Certified to be installed indoor as well as outdoor in partially sheltered places thanks to the IPX5D electric protection, the boiler is supplied with a -5°C anti-freeze kit as standard.
Thanks to low emissions of carbon monoxide (CO) and nitrogen oxide (NOX), VICTRIX ZEUS 32 belongs to class 6, the most environmentally-friendly class established by the European standards (UNI EN 297 e 483).

...

CARV2 (weekly chronothermostat and modulating remote control)   Cod.3.021395

Class of device V* or VI

Contribution to the environmental heating seasonal energy efficiency 3%* or 4%

*as standard

...

CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control)   Cod.3.021623

Class of device V* or VI

Contribution to the environmental heating seasonal energy efficiency 3%* or 4%

* as standard

...

CRD PLUS (weekly chronothermostat and modulating remote control)   Cod.3.032645

Class of device V* or VI

Contribution to the environmental heating seasonal energy efficiency 3%* or 4%

*as standard

...

CRONO 7 (weekly digital chronothermostat)   Cod.3.021622

ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%

* default settings

...

CRONO 7 WIRELESS (wireless weekly digital chronothermostat)   Cod.3.021624

ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating energy efficiency 2%* or 3,5%

* default settings

...

Control box for pumps and zone   Cod.3.011668

Maximum three zones.
Available for all models except VICTRIX TERA VIP, VICTRIX TERA/X, MYTHOS HP. NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
...

DOMINUS interface kit   Cod.3.026273

To control heat pumps, system or gas boilers and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the heat pump’s circuit board from any location.
...

Electrical box cover plate kit for SMARTECH PLUS   Cod.3.031013

It allows the covering of the wall hole for electrical boxes type 503.

...

Expansion kit for SMARTECH PLUS   Cod.3.030911

For controlling the temperature in several areas of the house (example living and sleeping areas).

The kit includes: additional SMART thermostat and wi-fi relay (in this case the wi-fi network is required).



...

External probe   Cod.3.014083

Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.


Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%

* as standard

...

GSM telephonic control   Cod.3.017182

For buildings not equipped with telephone network. Available for all Immergas models.

...

Low temperature safety thermostat kit   Cod.3.019229

For generators settled up with low temperature

...

MINI CRD (MINI weekly chronothermostat and modulating remote control)   Cod.3.020167

Class of device V* or VI

Contribution to the environmental heating seasonal energy efficiency 3%* or 4%

* as standard

...

Multi-zone electronic board   Cod.3.028444

It can manage 4 zones at the same temperature or 1 mixed and 1 direct zone by remote modulating controls (ie. CAR V2).

For VICTRIX ZEUS, VICTRIX MAIOR TT/X, VICTRIX TT ErP/X, VICTRIX EXA/X, VICTRIX TERA VIP, VICTRIX TERA/PLUS, VICTRIX OMNIA, MYTHOS HP, NIKE/AVIO ECO and NIKE STAR 24.

...

Relay board kit   Cod.3.015350

Allows interface between zone valves and CAR V2 or SUPER CAR, to send an alarm signal, to manage external pump etc.

To be installed inside internal unit both in MAGIS COMBO V2 and MAGIS PRO V2
...

SMARTECH PLUS - SMART remote control   Cod.3.030909

Hi-tech smart wireless remote control with Bluetooth technology

The kit includes:
• Chronothermostat (to be placed where you want to adjust the temperature)
• Gateway (to be connected to the boiler or to the internet network at home - power supply 230 V)
• Wall fixing base (with leveling bubble integrated)
• Table stand
• 2 power batteries (as standard)
• Functioning room temperature: 0 - +40 °C
• Protection rating IP 20


Temperature control class: V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%



*default settings.

...

Telephonic control   Cod.3.013305

For buildings equipped with telephone network. Available for all Immergas models.

...

Additional exhaust manifold kit Ø 250 with flue lock for 4 VICTRIX PRO 100/120   Cod.3.015343

Cascade installation - "Green Series" exhaust manifolds.
With installations in central heating systems, using up to 5 units in the battery, in configuration open chamber fan assisted, Immergas supplies special exhaust manifolds in PP equipped with flue lock (mechanical shutters), to prevent backflow of combustion products through the other non-functioning boilers.
The system is modular: there is an exhaust manifold kit for two boilers and one for additional boilers.

...

Additional exhaust manifold kit Ø 250 with flue lock for 4 VICTRIX PRO 100/120   Cod.3.015378

Cascade installation - "Green Series" exhaust manifolds.
With installations in central heating systems, using up to 5 units in the battery, in configuration open chamber fan assisted, Immergas supplies special exhaust manifolds in PP equipped with flue lock (mechanical shutters), to prevent backflow of combustion products through the other non-functioning boilers.
The system is modular: there is an exhaust manifold kit for two boilers and one for additional boilers.

...

Additional exhaust manifold kit Ø 250 with flue lock for 4 VICTRIX PRO 100/120   Cod.3.015345

Cascade installation - "Green Series" exhaust manifolds.
With installations in central heating systems, using up to 5 units in the battery, in configuration open chamber fan assisted, Immergas supplies special exhaust manifolds in PP equipped with flue lock (mechanical shutters), to prevent backflow of combustion products through the other non-functioning boilers.
The system is modular: there is an exhaust manifold kit for two boilers and one for additional boilers.

...

Anti-wind vertical terminal kit Ø 80   Cod.3.021721

For condensing boiler < 35 kW.

...

Concentric horizontal outlet Ø 60/100   Cod.3.016836

for condensing boilers < 35 kW.

...

Concentric vertical complete kit Ø 60/100 (red ocher colour)   Cod.3.016833

for condensing boilers < 35 kW.

...

Flanged stub-pipe + bend + extension pipe Ø 80 for flue discharge   Cod.3.016365

For condensing boilers < 35 kW.

...

Horizontal concentric complete kit Ø 60/100 Short   Cod.3.024598

Max lenght 11,9 m.
For condensing boiler < 35 kW.

...

Horizontal concentric complete kit Ø 60/100 with swivel terminal   Cod.3.024267

Max lenght 9,9 m.
For condensing boiler < 35 kW except HP models.
...

Horizontal concentric swivel outlet Ø 60/100   Cod.3.027408

for condensing boilers < 35 kW.

...

Terminal vertical outlet kit Ø 80   Cod.3.015256

For condensing boiler < 35 kW.

...

Twin pipes complete kit Ø 80/80   Cod.3.012002

For condensing boiler < 35 kW.

...

All-purpose connection kit for wall-hung combi boilers   Cod.3.011667

For wall-hung combi boilers and also for wall-hung with built-in storage tank.

...

Anti freeze protection kit -15 °C   Cod.3.017324

Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.

...

Anti freeze protection kit -15 °C   Cod.3.031804

Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.

...

Anti-scale kit   Cod.3.013499

For VICTRIX ZEUS SUPERIOR ErP, VICTRIX ZEUS and AVIO ECO 24

...

Bottom cover kit for VICTRIX ZEUS 25-32   code 3.030323   Cod.3.030323

For VICTRIX ZEUS 25-32.


...

Clock kit for Recirculation   Cod.3.015431

To be used to manage the recirculation pump.

...

Condensate discharge pump kit   Cod.3.026374

For wall-hung boilers: compact condensate drain pump kit.

...

Condensate neutralizer kit   Cod.3.019857

Necessary to neutralize the acidity of the condensation. Inclusive of granulate.
...

DIM 2 ZONES ErP   Cod.3.025607

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
...

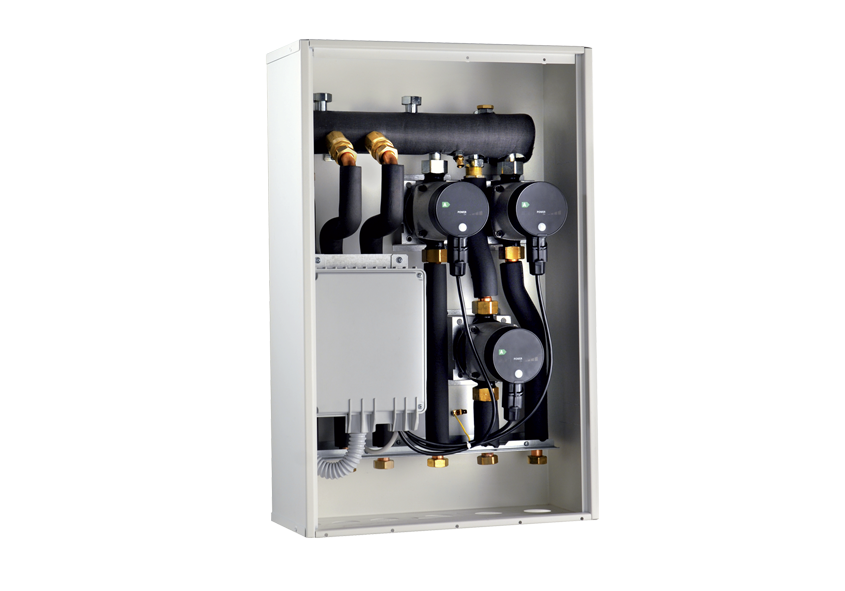

DIM 3 ZONES ErP   Cod.3.025608

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
...

DIM BASIC ErP   Cod.3.025606

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold and 1 low-consumption pump.
...

DIM H-2LT ErP   Cod.3.025610

Kit for mixed systems with 2 low temperature zones and 1 high temperature zone.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps, 2 mixing valves and electronic board.

...

DIM H-LT ErP   Cod.3.025609

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
...

Magnetic cyclone filter kit   Cod.3.024176

Magnetic cyclone filter kit to prevent system ferrous residual (only for internal installation).

Available for wall-hung condensing boilers.

...

Mixing valve kit   Cod.3.027084

For multi-zone electronic board (code 3.028444)

...

Recirculation kit   Cod.3.015380

Domestic hot water pump included.
Available for ZEUS kW, ZEUS SUPERIOR kW, VICTRIX ZEUS SUPERIOR ErP, VICTRIX ZEUS and AVIO ECO 24.
...

Recirculation kit for VICTRIX Zeus   Cod.3.012944

Only probe pipe, not pump included.
Available for VICTRIX Zeus.

...

Shut off knobs   Cod.3.5324

For wall-hung outdoor boilers.

...

Shut off knobs with filter   Cod.3.015854

For wall-hung boilers.
