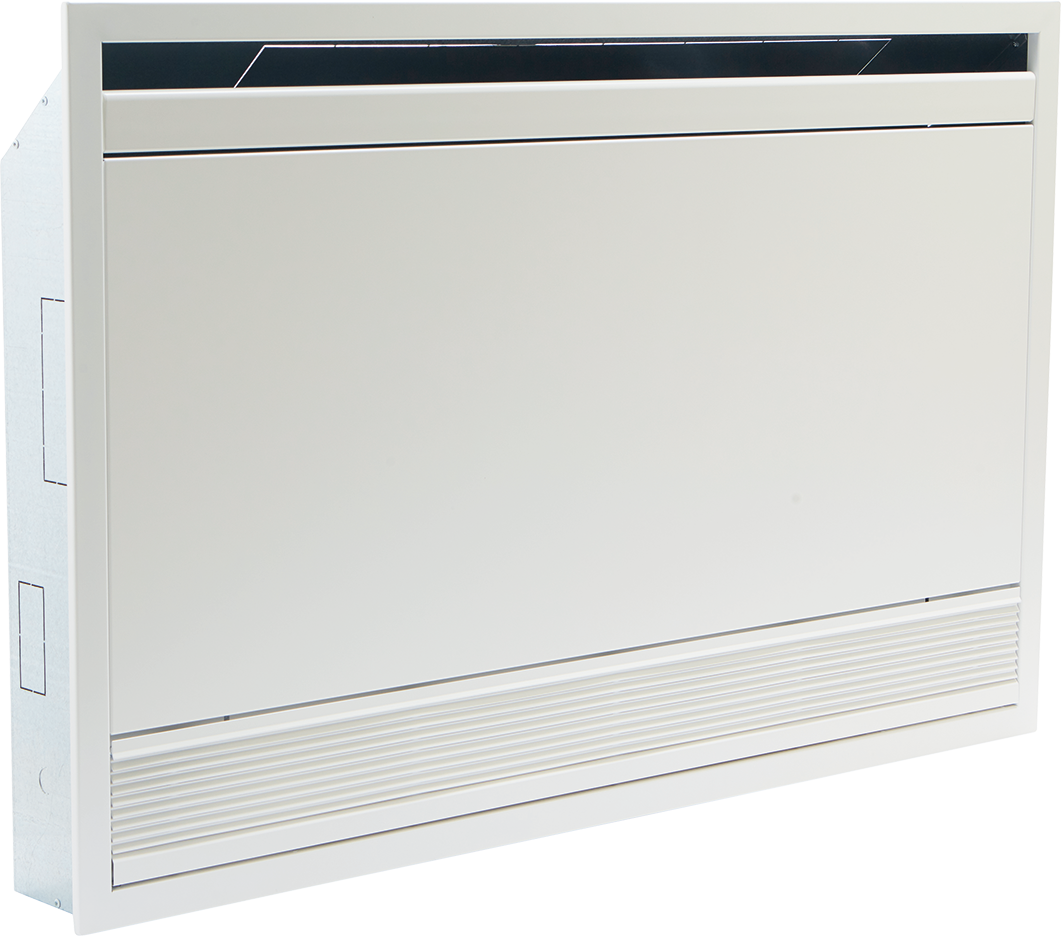

HYDRO IN 600

Wall and ceiling built-in hydronic fancoil
The customer service provides
prompt answers within 24 hours.
More internal comfort
Maximum installation flexibility
Heating and cooling

Technical data HYDRO IN 600

Code 3.029843
Heating output max speed 45/40 °C kW 3,11
Cooling output max speed 7/12 °C kW 2,89
Dimensions (HxWxD) mm 655 x 925 x 126
Flow rate 7/12 °C l/h 497
Weight (kg) 15,0

Technical data HYDRO IN 600

Code 3.029843
Heating output max speed 45/40 °C kW 3,11
Cooling output max speed 7/12 °C kW 2,89
Dimensions (HxWxD) mm 655 x 925 x 126
Flow rate 7/12 °C l/h 497
Weight (kg) 15,0

Gallery

Suitable for wall, ceiling or false ceiling built-in installation thanks to the reduced depth. They adapt in any living context, even in bedrooms, for their remarkable silence.

  • Reduced aesthetic impact
  • Flow and return connections on the left side (with possibility of inversion to the right)
  • Respond to every design requirement (on the wall, ceiling, in false ceiling)
  • Very low sound impact thanks to the tangential fan and the DC INVERTER motor
  • Flat adapters as standard and 3/4" hydraulic connections
  • Balancing valves as standard
  • Availability of numerous accessories
  • Condensate collection system for vertical or horizontal installation as standard
...

Electronic control board with 0-10 V connection   Cod.3.028512

It allows to manage the fan motor, with modulating speed.

...

On board electronic control with PID full modulating fan   Cod.3.030876

To be provided in combination with the smart touch wall controller with temperature probe code 3.030877 and 3.030878; it is installed inside the fan coil and allows the engine to be operated with continuous modulating operation.

...

Smart touch wall controller with temperature probe (black casing)   Cod.3.030877

The kit includes control panel with PI logic and room probe for control up to 30 units.
To combine with the on board electronic control with PID full modulating fan code 3.030876.
Adjustment of temperature in hot and cold at modulating speed of the engine.
...

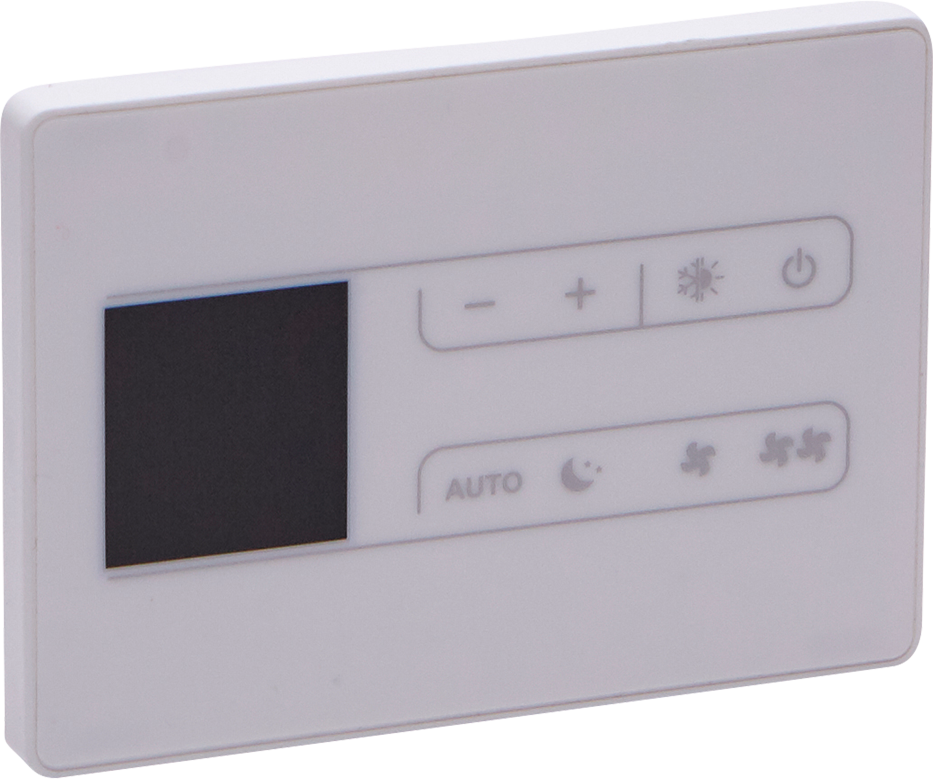

Smart touch wall controller with temperature probe (white casing)   Cod.3.030878

The kit includes control panel with PI logic and room probe for control up to 30 units.
To combine with the on board electronic control with PID full modulating fan code 3.030876.
Adjustment of temperature in hot and cold at modulating speed of the engine.


...

Universal control board for commercial thermoregulation   Cod.3.028511

For installation on the machine, allows to manage the fan motor, with fixed speeds.

...

2-way group valve kit   Cod.3.028507

Composed of automatic valve with thermoelectric head and holder to balance the plant load losses.


...

3-way group valve kit   Cod.3.028508

Composed of three-way diverter valve with thermoelectric head, by-pass tube and holder to balance plant load losses.


...

90° bended duct for HYDRO IN 600   Cod.3.029858

Kit for recessed installation in false ceiling with intake and airflow at the bottom.
Made of zinc-coated sheet and internally covered with insulation to avoid condensation. It allows to convey the air flow coming
from the terminal, towards the nozzle placed at right angles to the air outlet.




...

Air flow aluminum grill with curved profile for HYDRO IN 600   Cod.3.029893

Kit for recessed installation in false ceiling with intake and airflow at the bottom.
Made of aluminum. The geometry of the fins is designed to allow a comfortable flow of air.




...

Air flow aluminum grill with straight profile for HYDRO IN 600   Cod.3.029863

Kit for ceiling built-in and recessed installation in false ceiling with bottom air intake and horizontal throwing.
In aluminum with double row of fins for adjusting both horizontal and vertical air flow.




...

Air flow aluminum grill with straight profile for HYDRO IN 600   Cod.3.029864

Kit for ceiling built-in and recessed installation in false ceiling with bottom air intake and horizontal throwing.
In aluminum with double row of fins for adjusting both horizontal and vertical air flow.




...

Air intake aluminum grill with curved profile for HYDRO IN 600   Cod.3.029873

Kit for recessed installation in false ceiling with intake and airflow at the bottom
In aluminum. The curved profile completely masks the interior providing more elegance to the application.




...

Air intake aluminum grill with straight profile for HYDRO IN 600   Cod.3.029868

Kit for recessed installation in false ceiling with bottom air intake and horizontal throwing.





...

Air intake aluminum grill with straight profile for HYDRO IN 600   Cod.3.029869

Kit for recessed installation in false ceiling with bottom air intake and horizontal throwing.





...

Air intake suction duct for HYDRO IN 600   Cod.3.029848

Kit for recessed installation in false ceiling with bottom air intake and horizontal throwing and with intake and airflow at the bottom.




...

Casing cover panel with intake air grill for HYDRO IN 600   Cod.3.029883

Kit for wall built-in installation.
RAL 9003 opaque white colour, including air intake grill and adjustable air flow fin.
Dimensions (H x W x frame thickness) 754 x 1172 x 9 mm.




...

Ceiling casing cover panel with accessible air grill for HYDRO IN 600   Cod.3.029888

Kit for ceiling built-in installation
RAL 9003 opaque white colour, including air intake grill.
Dimensions (H x W x frame thickness) 754 x 1172 x 9 mm




...

Connection cable to shift water connections from left to right   Cod.3.029834

to be used in case of reversibility of the hydraulic pipe connections on the right side, rotating the battery 180°




...

Sheet metal casing for HYDRO IN 600   Cod.3.029878

Kit for wall built-in and ceiling built-in installation
In zinc-coated metal sheet, designed to be inserted in the ceiling in which to house HYDRO IN.
Dimensions (H x W x D) 725 x 1115 x 142 mm.



...

Variable lenght air flow duct for HYDRO IN 600   Cod.3.029853

Kit for ceiling built-in and recessed installation in false ceiling with bottom air intake and horizontal throwing.
Adjustable to adapt to the installation. Made of zinc-coated sheet and internally covered with insulation to avoid condensation.





Suitable for wall, ceiling or false ceiling built-in installation thanks to the reduced depth. They adapt in any living context, even in bedrooms, for their remarkable silence.

  • Reduced aesthetic impact
  • Flow and return connections on the left side (with possibility of inversion to the right)
  • Respond to every design requirement (on the wall, ceiling, in false ceiling)
  • Very low sound impact thanks to the tangential fan and the DC INVERTER motor
  • Flat adapters as standard and 3/4" hydraulic connections
  • Balancing valves as standard
  • Availability of numerous accessories
  • Condensate collection system for vertical or horizontal installation as standard
...

Electronic control board with 0-10 V connection   Cod.3.028512

It allows to manage the fan motor, with modulating speed.

...

On board electronic control with PID full modulating fan   Cod.3.030876

To be provided in combination with the smart touch wall controller with temperature probe code 3.030877 and 3.030878; it is installed inside the fan coil and allows the engine to be operated with continuous modulating operation.

...

Smart touch wall controller with temperature probe (black casing)   Cod.3.030877

The kit includes control panel with PI logic and room probe for control up to 30 units.
To combine with the on board electronic control with PID full modulating fan code 3.030876.
Adjustment of temperature in hot and cold at modulating speed of the engine.
...

Smart touch wall controller with temperature probe (white casing)   Cod.3.030878

The kit includes control panel with PI logic and room probe for control up to 30 units.
To combine with the on board electronic control with PID full modulating fan code 3.030876.
Adjustment of temperature in hot and cold at modulating speed of the engine.


...

Universal control board for commercial thermoregulation   Cod.3.028511

For installation on the machine, allows to manage the fan motor, with fixed speeds.

...

2-way group valve kit   Cod.3.028507

Composed of automatic valve with thermoelectric head and holder to balance the plant load losses.


...

3-way group valve kit   Cod.3.028508

Composed of three-way diverter valve with thermoelectric head, by-pass tube and holder to balance plant load losses.


...

90° bended duct for HYDRO IN 600   Cod.3.029858

Kit for recessed installation in false ceiling with intake and airflow at the bottom.
Made of zinc-coated sheet and internally covered with insulation to avoid condensation. It allows to convey the air flow coming
from the terminal, towards the nozzle placed at right angles to the air outlet.




...

Air flow aluminum grill with curved profile for HYDRO IN 600   Cod.3.029893

Kit for recessed installation in false ceiling with intake and airflow at the bottom.
Made of aluminum. The geometry of the fins is designed to allow a comfortable flow of air.




...

Air flow aluminum grill with straight profile for HYDRO IN 600   Cod.3.029863

Kit for ceiling built-in and recessed installation in false ceiling with bottom air intake and horizontal throwing.
In aluminum with double row of fins for adjusting both horizontal and vertical air flow.




...

Air flow aluminum grill with straight profile for HYDRO IN 600   Cod.3.029864

Kit for ceiling built-in and recessed installation in false ceiling with bottom air intake and horizontal throwing.
In aluminum with double row of fins for adjusting both horizontal and vertical air flow.




...

Air intake aluminum grill with curved profile for HYDRO IN 600   Cod.3.029873

Kit for recessed installation in false ceiling with intake and airflow at the bottom
In aluminum. The curved profile completely masks the interior providing more elegance to the application.




...

Air intake aluminum grill with straight profile for HYDRO IN 600   Cod.3.029868

Kit for recessed installation in false ceiling with bottom air intake and horizontal throwing.





...

Air intake aluminum grill with straight profile for HYDRO IN 600   Cod.3.029869

Kit for recessed installation in false ceiling with bottom air intake and horizontal throwing.





...

Air intake suction duct for HYDRO IN 600   Cod.3.029848

Kit for recessed installation in false ceiling with bottom air intake and horizontal throwing and with intake and airflow at the bottom.




...

Casing cover panel with intake air grill for HYDRO IN 600   Cod.3.029883

Kit for wall built-in installation.
RAL 9003 opaque white colour, including air intake grill and adjustable air flow fin.
Dimensions (H x W x frame thickness) 754 x 1172 x 9 mm.




...

Ceiling casing cover panel with accessible air grill for HYDRO IN 600   Cod.3.029888

Kit for ceiling built-in installation
RAL 9003 opaque white colour, including air intake grill.
Dimensions (H x W x frame thickness) 754 x 1172 x 9 mm




...

Connection cable to shift water connections from left to right   Cod.3.029834

to be used in case of reversibility of the hydraulic pipe connections on the right side, rotating the battery 180°




...

Sheet metal casing for HYDRO IN 600   Cod.3.029878

Kit for wall built-in and ceiling built-in installation
In zinc-coated metal sheet, designed to be inserted in the ceiling in which to house HYDRO IN.
Dimensions (H x W x D) 725 x 1115 x 142 mm.



...

Variable lenght air flow duct for HYDRO IN 600   Cod.3.029853

Kit for ceiling built-in and recessed installation in false ceiling with bottom air intake and horizontal throwing.
Adjustable to adapt to the installation. Made of zinc-coated sheet and internally covered with insulation to avoid condensation.
