TRIO PACK HYBRID 6
Split type hybrid heat pumps recessed or in-house solutions
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Ideal for new buildings
Standard thermoregulation
Heating and cooling
Technical data TRIO PACK HYBRID 6 |
|
|---|---|
| Code | 3.031710 |
| C.H. Energy class at 55 °C | A++ |
| D.H.W. Energy class - Stated load profile | A+ / L |
| DHW storage tank (litres) | 160 |
| Plant zones (n.) | 1 direct |
Technical data TRIO PACK HYBRID 6 |
|
|---|---|
| Code | 3.031710 |
| C.H. Energy class at 55 °C | A++ |
| D.H.W. Energy class - Stated load profile | A+ / L |
| DHW storage tank (litres) | 160 |
| Plant zones (n.) | 1 direct |
Gallery

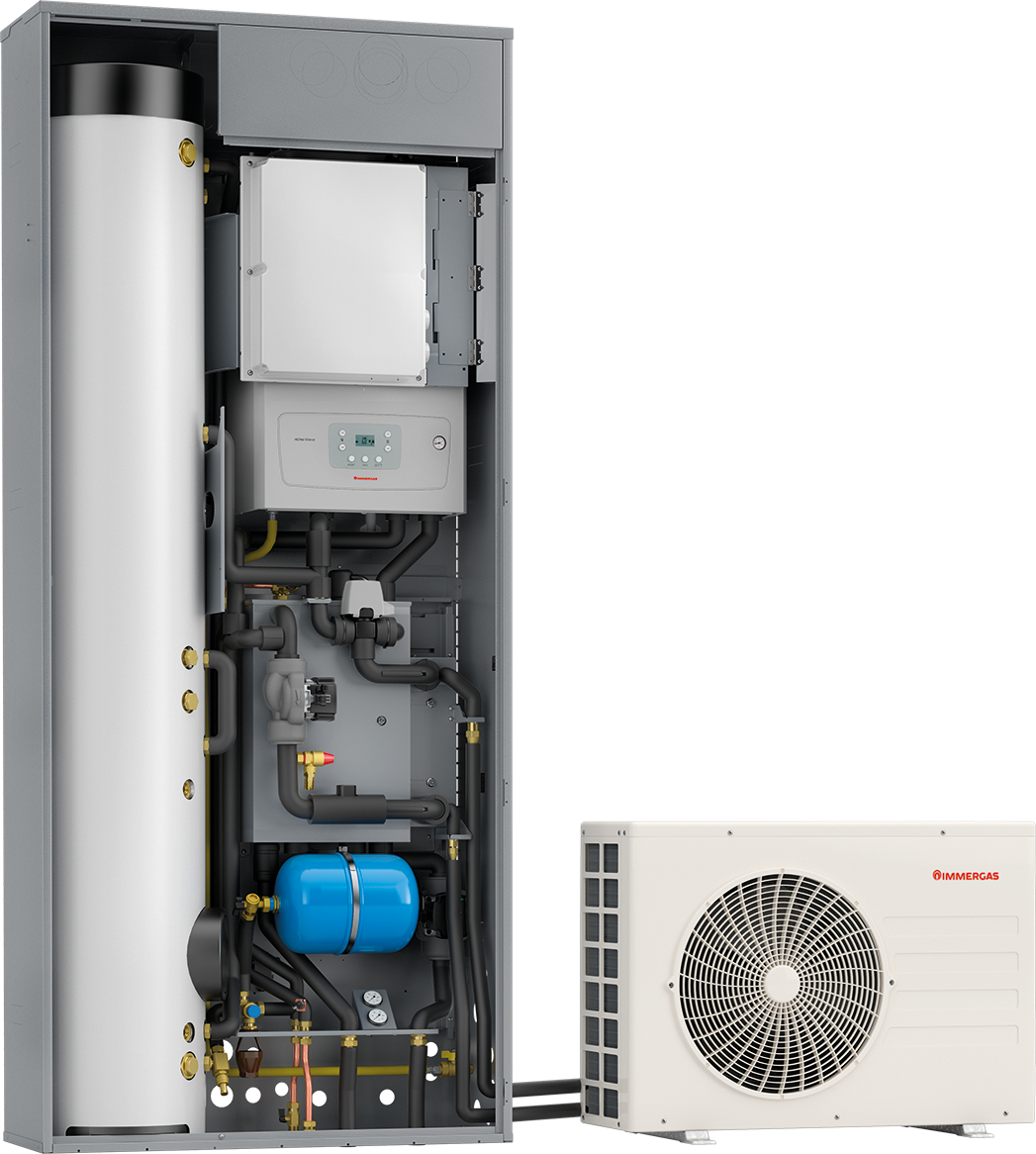

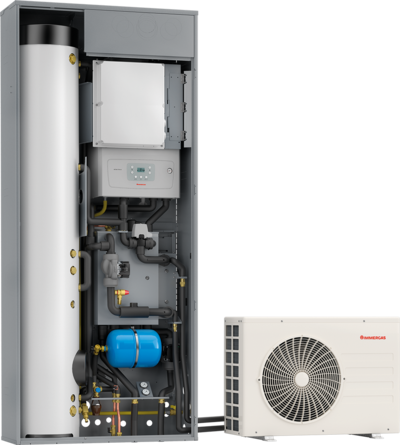

New hybrid solution “all-in-one".
Complete with split type heat pump and condensing unit (PLUS type), represents a single code system for heating/cooling systems and production of domestic hot water.
- Remote control panel (with chronothermostat function) as standard;
- 160 litre storage tank with double coil in series, in stainless steel AISI 316 L, class C, complete of 2 magnesium anodes, insulation and flange of inspection;
- Domestic hot water production with storage tank unit managed by both the heat pump and the internal condensation unit;
- 25 litres buffer tank in stainless steel with function of hydraulic separator, pump for 1 direct zone, “Y" filter, D.H.W. expansion vessel 8 litres, system flow meter, D.H.W. safety valve 8 bar;
- Hydronic group linked to the operation of the heat pump (R32 /water exchanger, circulator, 3 way valve).
2 relays board kit Cod.3.031943
For TRIO PACK, TRIO HYDRO and MAGIS HERCULES PRO MINI
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%
* default settings
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating energy efficiency 2%* or 3,5%
* default settings
DOMINUS interface kit Cod.3.026273
To control heat pumps, system or gas boilers and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the heat pump’s circuit board from any location.
Expansion kit Cod.3.031944
For TRIO PACK, TRIO HYDRO and MAGIS HERCULES PRO MINI/MINI EH
External probe Cod.3.014083
Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%
* as standard
Mod-bus temperature and humidity sensor Cod.3.030992
To be used with radiant systems that also work in cooling mode
Temperature control class V or VI*
Contribution to seasonal space heating energy efficiency
3% or 4%*
* default settings

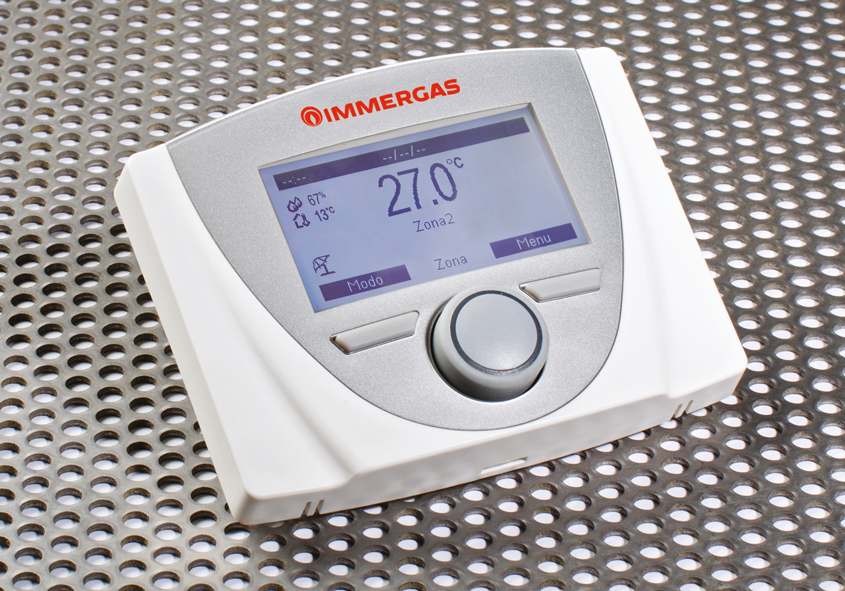

Remote Control Panel Cod.3.030863
Modulating chronotermostat, remote control with temperature/humidity sensor
Temperature control class V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%
* default settings
Room hygrostat Cod.3.023302
To be used with radiant systems that also work in cooling mode.
4 x 90° bends Ø 80 kit Cod.3.012091
For condensing boilers < 35 kW.
90° bend Ø 60/100 kit Cod.3.012093
For condensing boiler < 35 kW.
Additional exhaust manifold kit Ø 250 with flue lock for 4 VICTRIX PRO 100/120 Cod.3.015343
Cascade installation - "Green Series" exhaust manifolds.
With installations in central heating systems, using up to 5 units in the battery, in configuration open chamber fan assisted, Immergas supplies special exhaust manifolds in PP equipped with flue lock (mechanical shutters), to prevent backflow of combustion products through the other non-functioning boilers.
The system is modular: there is an exhaust manifold kit for two boilers and one for additional boilers.
Additional exhaust manifold kit Ø 250 with flue lock for 4 VICTRIX PRO 100/120 Cod.3.015378
Cascade installation - "Green Series" exhaust manifolds.
With installations in central heating systems, using up to 5 units in the battery, in configuration open chamber fan assisted, Immergas supplies special exhaust manifolds in PP equipped with flue lock (mechanical shutters), to prevent backflow of combustion products through the other non-functioning boilers.
The system is modular: there is an exhaust manifold kit for two boilers and one for additional boilers.
Additional exhaust manifold kit Ø 250 with flue lock for 4 VICTRIX PRO 100/120 Cod.3.015345
Cascade installation - "Green Series" exhaust manifolds.
With installations in central heating systems, using up to 5 units in the battery, in configuration open chamber fan assisted, Immergas supplies special exhaust manifolds in PP equipped with flue lock (mechanical shutters), to prevent backflow of combustion products through the other non-functioning boilers.
The system is modular: there is an exhaust manifold kit for two boilers and one for additional boilers.
Concentric vertical complete kit Ø 60/100 (red ocher colour) Cod.3.016833
for condensing boilers < 35 kW.
Extension pipe kit Ø 60/100 0,5 m long Cod.3.014643
For condensing boiler < 35 kW.
Flanged stub-pipe + bend + extension pipe Ø 80 for flue discharge Cod.3.016365
For condensing boilers < 35 kW.
Flanged stub-pipe kit Ø 60/100 Cod.3.012086
For condensing boiler < 35 kW.
Flanged stub-pipe kit Ø 80 Cod.3.012087
For condensing boilers < 35 kW.
Twin pipes complete kit Ø 80/80 Cod.3.012002
For condensing boiler < 35 kW.
3-way valve kit Cod.3.020632
Additional mixed 2nd zone kit for TRIO PACK Cod.3.031483
Aesthetic upper cover DOMUS CONTAINER Cod.3.027175
Anti freeze protection kit -15 °C Cod.3.017324
Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.
Connection kit for R32 circuit for TRIO PACK Cod.3.031966
For connection R32 toward the lower part of the Container
Connection kit for horizontal zones (side connection) for TRIO PACK O Cod.3.032256
including fittings, 4 shut-off knobs and predisposition to
insert the “Y" filters for zone 1 and 2
Connection kit for rear zones (rear connection) for TRIO PACK Cod.3.032258
including fittings, 4 shut-off knobs and predisposition to
insert the “Y" filters for zone 1 and 2
Connection kit for vertical zones (bottom connection) for TRIO PACK Cod.3.032257
including fittings, 4 shut-off knobs and predisposition to
insert the “Y" filters for zone 1 and 2

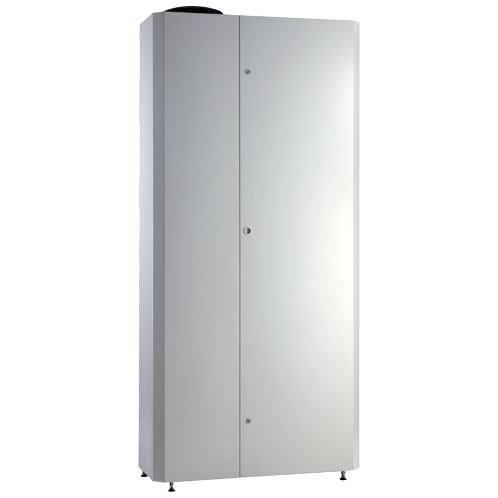

DOMUS CONTAINER (technical box) Cod.3.022167
Technical box for solutions TRIO V2 and TRIO MONO V2.
is the first of the main components of TRIO V2/TRIO MONO V2 systems for indoor installations. It allows the housing of the main components (except for the AUDAX heat pump).
It blends easily into any room and does not require no brickwork for subsequent installation of generators, hydraulic components and flues (if any).
Front opening enables total system maintenance.
Dimensions (H x W x D) mm 2110 x 975 x 365
Dehumidifier back frame kit Cod.3.022146
Dehumidifier front grille kit Cod.3.022147
Dehumidifier kit Cod.3.021529
Only for recessed installation with codes 3.022146 and 3.022147
External cover kit with acoustical insulation for ZENITAIR-MONO Cod.3.030636
Anti-insect net and anti-wind in pre-painted steel, alternative to the one available with ZENITAIR-MONO.
HYDRO 3 V2 Cod.3.033625
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO 4 V2 Cod.3.033626
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO FS 200 Cod.3.028500
Floor standing hydronic fancoil
HYDRO FS 400 Cod.3.028501
Floor standing hydronic fancoil
HYDRO FS 600 Cod.3.028502
Floor standing hydronic fancoil
HYDRO FS 800 Cod.3.028503
Floor standing hydronic fancoil
HYDRO FS 1000 Cod.3.028505
Floor standing hydronic fancoil

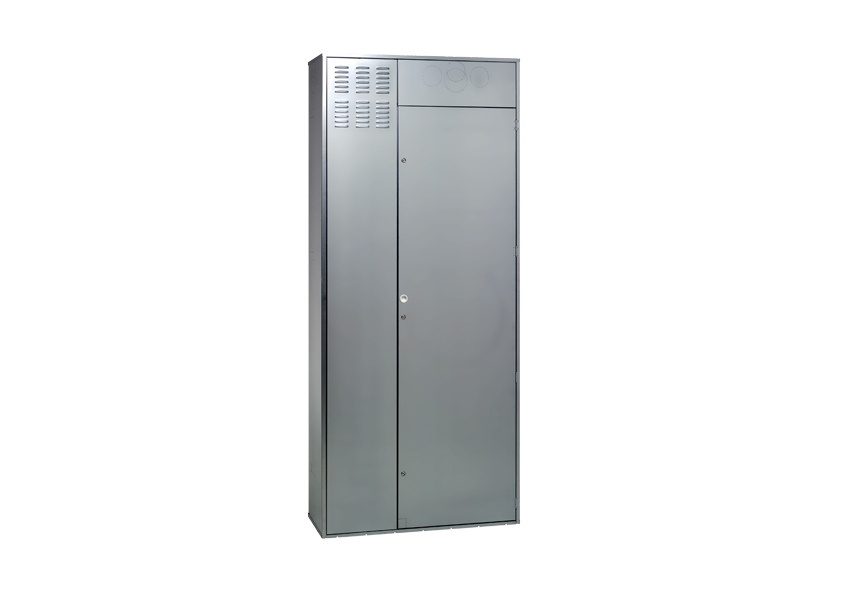

SOLAR CONTAINER (recessed frame) Cod.3.020166
Recessed frame for solutions TRIO V2 and TRIO MONO V2.
is the first of the main components of TRIO V2/TRIO MONO V2 systems.
It allows the housing of the main components (except for the AUDAX heat pump.
It can be ordered and installed during the building planning stage and provides the installer with all the system features for subsequent installation of generators, hydraulic parts and flues (if any).
Front access enables total maintenance of the system.
Dimensions (H x W x D) mm 2200 x 950 x 350
Wall mounting brackets for external unit Cod.3.034758
For outdoor unit of MAGIS COMBO 4-6-9 V2/ 4-6-9 PLUS V2, MAGIS COMBO 12-14-16 V2/ 12-14-16 PLUS V2, TRIO PACK 4-6-9, TRIO HYDRO 5-8-12, MAGIS HERCULES PRO 4-6-9-12-14-16, MAGIS PRO 4-6-9 V2 /12-14-16 V2, MAGIS HERCULES PRO MINI 6-9/6-9 EU.
ZENITAIR MONO Cod.3.030601
Decentralised mechanical ventilation unit, easy to install, with alternate flow and heat recovery core.
Multifunction remote controller, with LCD display to visualise the status of the unit supplied as standard.
New hybrid solution “all-in-one".
Complete with split type heat pump and condensing unit (PLUS type), represents a single code system for heating/cooling systems and production of domestic hot water.
- Remote control panel (with chronothermostat function) as standard;
- 160 litre storage tank with double coil in series, in stainless steel AISI 316 L, class C, complete of 2 magnesium anodes, insulation and flange of inspection;
- Domestic hot water production with storage tank unit managed by both the heat pump and the internal condensation unit;
- 25 litres buffer tank in stainless steel with function of hydraulic separator, pump for 1 direct zone, “Y" filter, D.H.W. expansion vessel 8 litres, system flow meter, D.H.W. safety valve 8 bar;
- Hydronic group linked to the operation of the heat pump (R32 /water exchanger, circulator, 3 way valve).
