VICTRIX TERA V3 24 PLUS EU
Condensing Boilers

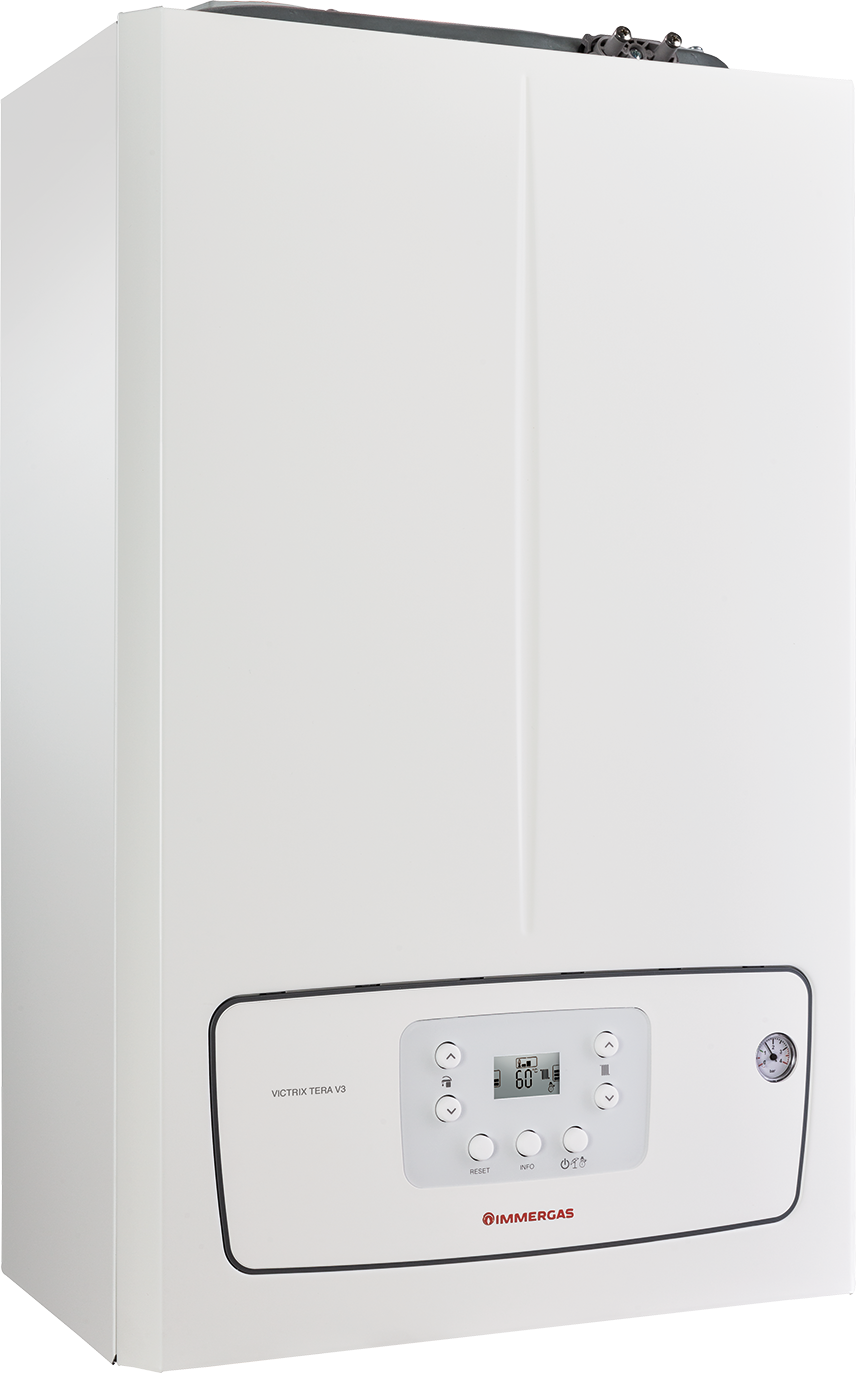

Wall-hung condensing boiler for heating only
- Compact dimensions
- Easy installation

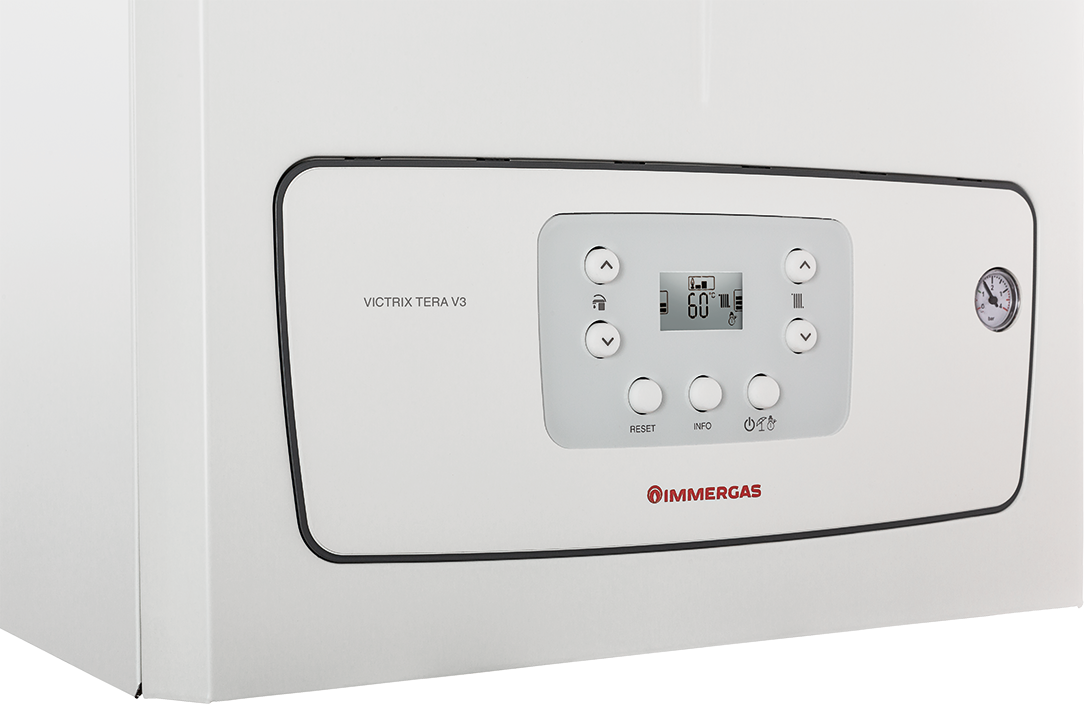

- User-friendly interface
Hydrogen Ready efficiency and technology.
The customer service provides prompt answers within 24 hours.
VICTRIX TERA V3 24 PLUS EU
Documentation
Catalogue
| Technical data VICTRIX TERA V3 24 PLUS EU | |
|---|---|
| Code | 3.036306 |
| Product plus | HYDROGEN READY 20% |
| C.H. Energy class | A |
| Heat output C.H. kW | 28,0 |
| Heat output D.H.W. kW | 24,0 |
| Dimensions (HxWxD) mm | 748 x 440 x 253 |
| Type | heating only |
| Modulating heat output | 14 - 100 % |
Product presentation

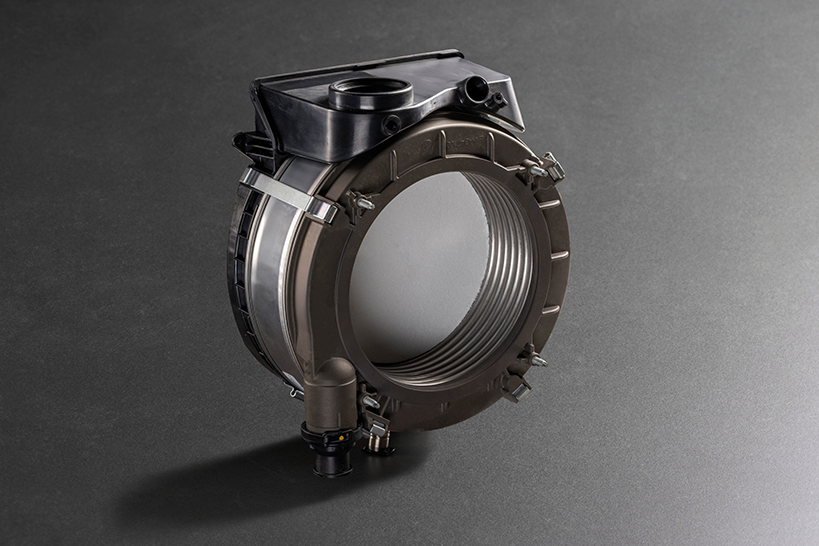

- New high-efficiency exchanger in stainless steel
- Remarkable compactness
- Aesthetics with greater attention to details
- It works with methane, LPG or 20% hydrogen blend
- 94% seasonal efficiency to reach a higher energy classification (A+) in combination with Modulating Remote Controls (ie. CARV2 or SMARTECH PLUS)
- Wide range: 3 combi versions and 2 for heating only which can be combined to storage tanks for DHW production
- It can be connected to collective flues designed in positive pressure, thanks to safety devices equipment and by using a specific kit option
- NOx class 6
- Possible connection to Immergas storage tank range
