EOLO STAR 24 4 E
Wall-hung compact traditional boiler for heating only, open chamber conventional flue
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Technical data EOLO STAR 24 4 E |
|
|---|---|
| Code | 3.027046 |
| Heat output kW | 23,8 |
| Dimensions (HxWxD) mm | 751 x 440 x 240 |
| Type | combi |
| Modulating heat output | 40 - 100% |
| D.H.W. production (∆t 30°C) l/min | 11,1 |
Technical data EOLO STAR 24 4 E |
|
|---|---|
| Code | 3.027046 |
| Heat output kW | 23,8 |
| Dimensions (HxWxD) mm | 751 x 440 x 240 |
| Type | combi |
| Modulating heat output | 40 - 100% |
| D.H.W. production (∆t 30°C) l/min | 11,1 |
Gallery

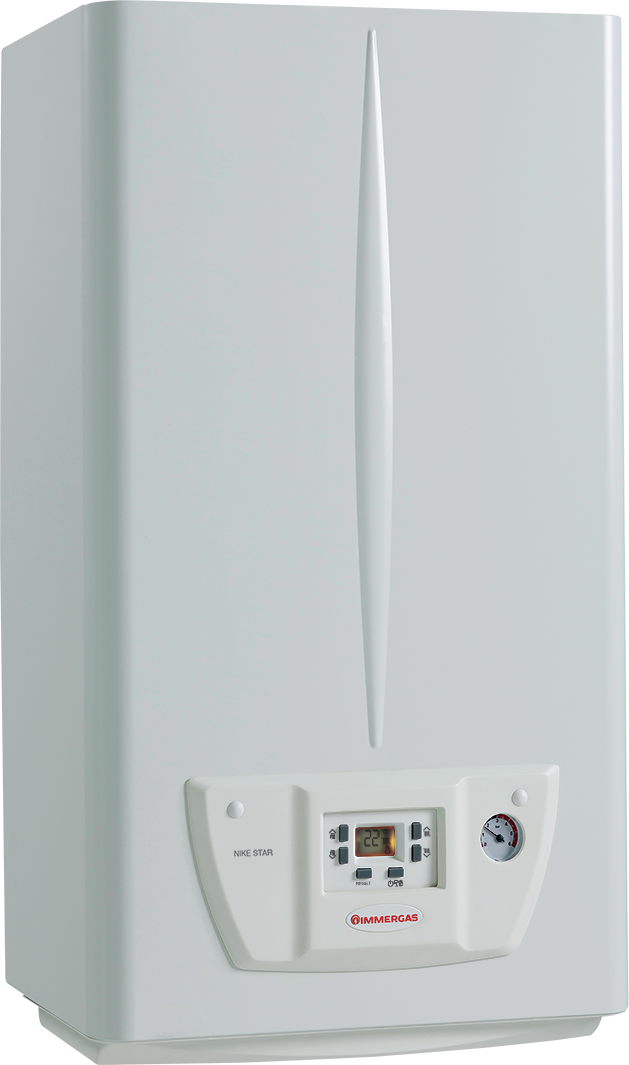

Wall-hung bithermal traditional sealed chamber boiler.
23,8 kW heat output.
It is characterized by extremely compact dimensions, modern and elegant design and by the high performances. The boiler's sober and linear aesthetics has a control panel with keys and descriptive icons and a backlit digital display that guarantees an easy and immediate use and management of the boiler's functioning mode.
The bithermal heat-exchanger allows an immediate hot water production and a remarkably simple hydraulic circuit, increasing the boiler's reliability and making its maintenance easier.
The advanced electronics allows the coupling with optional kits for the climatic thermoregulation.
EOLO Star 24 4 E is certified to be installed both indoor and outdoor in partially sheltered places thanks to the IPX5D electric protection. It is equipped with a -5°C anti-freeze kit as standard and pneumatic gas valve.
This product is not for sales in EU market.
CARV2 (weekly chronothermostat and modulating remote control) Cod.3.021395
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
*as standard
CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control) Cod.3.021623
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%
* default settings
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating energy efficiency 2%* or 3,5%
* default settings
Electrical box cover plate kit for SMARTECH PLUS Cod.3.031013
It allows the covering of the wall hole for electrical boxes type 503.
Expansion kit for SMARTECH PLUS Cod.3.030911
For controlling the temperature in several areas of the house (example living and sleeping areas).
The kit includes: additional SMART thermostat and wi-fi relay (in this case the wi-fi network is required).
External probe Cod.3.014083
Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%
* as standard
GSM telephonic control Cod.3.017182
For buildings not equipped with telephone network. Available for all Immergas models.
MINI CRD (MINI weekly chronothermostat and modulating remote control) Cod.3.020167
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
SMARTECH PLUS - SMART remote control Cod.3.030909
Hi-tech smart wireless remote control with Bluetooth technology
The kit includes:
• Chronothermostat (to be placed where you want to adjust the temperature)
• Gateway (to be connected to the boiler or to the internet network at home - power supply 230 V)
• Wall fixing base (with leveling bubble integrated)
• Table stand
• 2 power batteries (as standard)
• Functioning room temperature: 0 - +40 °C
• Protection rating IP 20
Temperature control class: V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%
*default settings.
Telephonic control Cod.3.013305
For buildings equipped with telephone network. Available for all Immergas models.
Concentric horizontal complete kit Ø 60/100 Cod.3.017736
Flue components for traditional boilers and water heaters.
All-purpose connection kit for wall-hung combi boilers Cod.3.011667
For wall-hung combi boilers and also for wall-hung with built-in storage tank.
Connection kit for VICTRIX OMNIA, MYTHOS HP, EOLO/NIKE STAR 24 and NIKE/EOLO MYTHOS Cod.3.015229
for VICTRIX OMNIA, MYTHOS HP, EOLO/NIKE STAR 24 and NIKE/EOLO MYTHOS
Shut off knobs Cod.3.5324
For wall-hung outdoor boilers.
Solar valve Cod.3.018911
Allows the connection between combi boiler and solar system.
Available for: VICTRIX Superior TOP, VICTRIX, MAIOR EOLO, NIKE Mini 28 kW Special, MINI NIKE/EOLO and NIKE/EOLO Star.
Wall-hung bithermal traditional sealed chamber boiler.
23,8 kW heat output.
It is characterized by extremely compact dimensions, modern and elegant design and by the high performances. The boiler's sober and linear aesthetics has a control panel with keys and descriptive icons and a backlit digital display that guarantees an easy and immediate use and management of the boiler's functioning mode.
The bithermal heat-exchanger allows an immediate hot water production and a remarkably simple hydraulic circuit, increasing the boiler's reliability and making its maintenance easier.
The advanced electronics allows the coupling with optional kits for the climatic thermoregulation.
EOLO Star 24 4 E is certified to be installed both indoor and outdoor in partially sheltered places thanks to the IPX5D electric protection. It is equipped with a -5°C anti-freeze kit as standard and pneumatic gas valve.
This product is not for sales in EU market.
CARV2 (weekly chronothermostat and modulating remote control) Cod.3.021395
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
*as standard
CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control) Cod.3.021623
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%
* default settings
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating energy efficiency 2%* or 3,5%
* default settings
Electrical box cover plate kit for SMARTECH PLUS Cod.3.031013
It allows the covering of the wall hole for electrical boxes type 503.
Expansion kit for SMARTECH PLUS Cod.3.030911
For controlling the temperature in several areas of the house (example living and sleeping areas).
The kit includes: additional SMART thermostat and wi-fi relay (in this case the wi-fi network is required).
External probe Cod.3.014083
Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%
* as standard
GSM telephonic control Cod.3.017182
For buildings not equipped with telephone network. Available for all Immergas models.
MINI CRD (MINI weekly chronothermostat and modulating remote control) Cod.3.020167
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
SMARTECH PLUS - SMART remote control Cod.3.030909
Hi-tech smart wireless remote control with Bluetooth technology
The kit includes:
• Chronothermostat (to be placed where you want to adjust the temperature)
• Gateway (to be connected to the boiler or to the internet network at home - power supply 230 V)
• Wall fixing base (with leveling bubble integrated)
• Table stand
• 2 power batteries (as standard)
• Functioning room temperature: 0 - +40 °C
• Protection rating IP 20
Temperature control class: V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%
*default settings.
Telephonic control Cod.3.013305
For buildings equipped with telephone network. Available for all Immergas models.
Concentric horizontal complete kit Ø 60/100 Cod.3.017736
Flue components for traditional boilers and water heaters.
All-purpose connection kit for wall-hung combi boilers Cod.3.011667
For wall-hung combi boilers and also for wall-hung with built-in storage tank.
Connection kit for VICTRIX OMNIA, MYTHOS HP, EOLO/NIKE STAR 24 and NIKE/EOLO MYTHOS Cod.3.015229
for VICTRIX OMNIA, MYTHOS HP, EOLO/NIKE STAR 24 and NIKE/EOLO MYTHOS
Shut off knobs Cod.3.5324
For wall-hung outdoor boilers.
Solar valve Cod.3.018911
Allows the connection between combi boiler and solar system.
Available for: VICTRIX Superior TOP, VICTRIX, MAIOR EOLO, NIKE Mini 28 kW Special, MINI NIKE/EOLO and NIKE/EOLO Star.
Related products

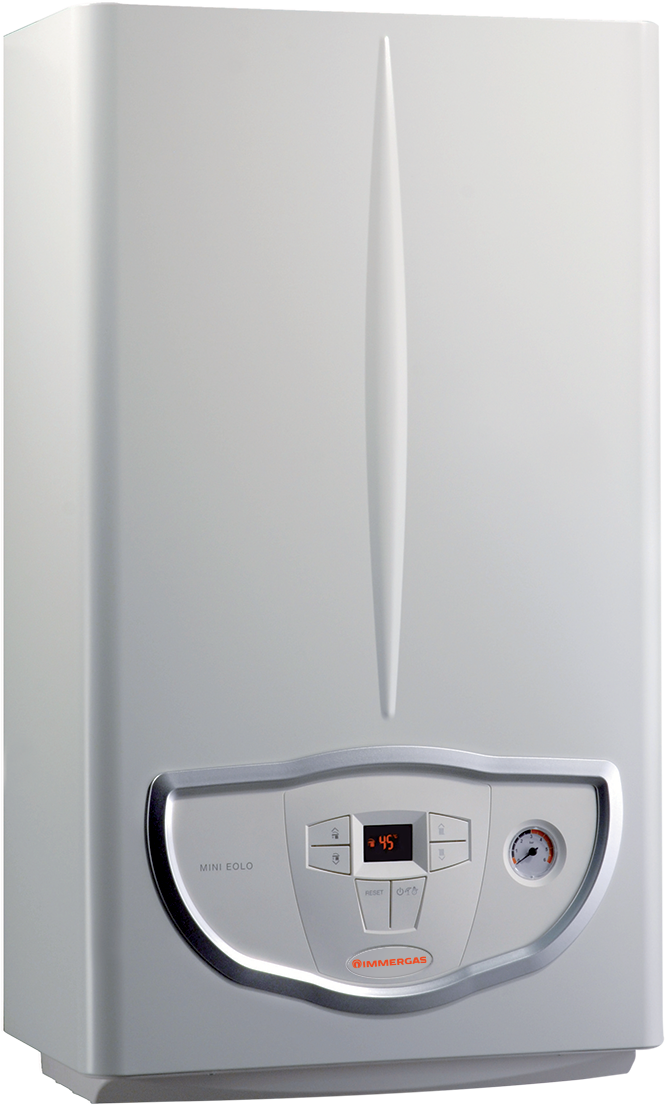

MINI EOLO 24 3 E
