INOXSTOR 200 V2
Inox Storage Tank Unit for production of domestic hot water.
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Technical data INOXSTOR 200 V2 |
|
|---|---|
| Code | 3.027746 |
| Content (litre) | 202,6 |
| Dimensions (H) mm | 1325 |
| External diameter mm | Ø 620 |
| Type | production of domestic hot water |
| Material | stainless steel |
Technical data INOXSTOR 200 V2 |
|
|---|---|
| Code | 3.027746 |
| Content (litre) | 202,6 |
| Dimensions (H) mm | 1325 |
| External diameter mm | Ø 620 |
| Type | production of domestic hot water |
| Material | stainless steel |
Gallery
DHW production designed stainless steel Storage Tank Unit.
The 200 litres Storage Tank Unit is totally made of stainless steel, equipped with inspection flange, placed in the bottom side. The Unit is equipped with two concentric coil shaped stainless steel water to water heat exchangers, too. Suitable flexible insulation which can be disassembled (6 cm).
The standard anodic protection system is given by two magnesium anodes, one of them placed in the upper part of the storage and the other inserted in the bottom, close to the flange. This solution can be easily integrated with its own optional kit.
INOXSTOR 200 V2 body is prearranged for the coupling with dedicated pump station and the insertion of electric resistance kit.
5 years conventional warranty.

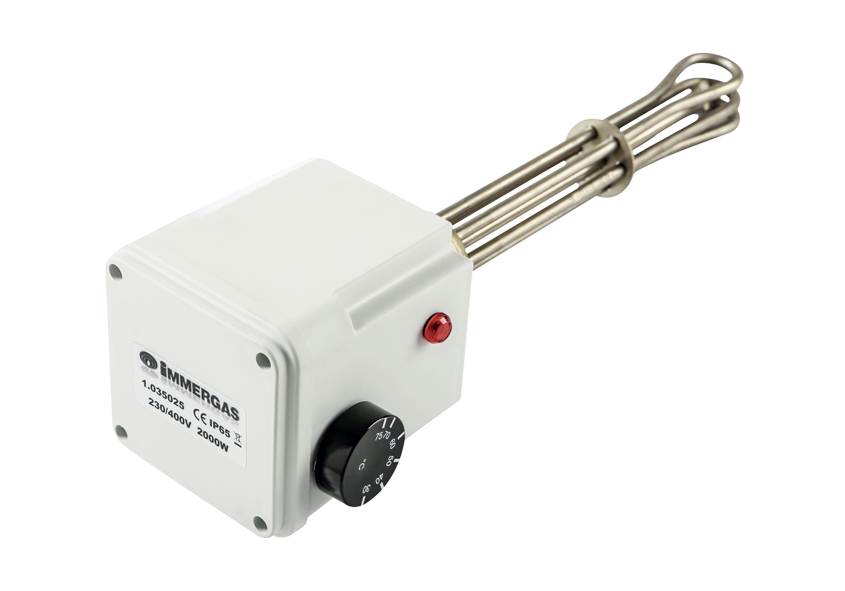

Additional 2 kW electric resistance kit for OMNISTOR, INOXSTOR V2 and UB 550/750 Cod.3.020861
Power supply 230 or 400 Vac.
Double electronic anode kit Cod.3.025003
Double electronic anode kit for OMNISTOR, INOXSTOR V2, MAGIS HERCULES PRO and MAGIS HERCULES PRO MINI
DHW production designed stainless steel Storage Tank Unit.
The 200 litres Storage Tank Unit is totally made of stainless steel, equipped with inspection flange, placed in the bottom side. The Unit is equipped with two concentric coil shaped stainless steel water to water heat exchangers, too. Suitable flexible insulation which can be disassembled (6 cm).
The standard anodic protection system is given by two magnesium anodes, one of them placed in the upper part of the storage and the other inserted in the bottom, close to the flange. This solution can be easily integrated with its own optional kit.
INOXSTOR 200 V2 body is prearranged for the coupling with dedicated pump station and the insertion of electric resistance kit.
5 years conventional warranty.
Additional 2 kW electric resistance kit for OMNISTOR, INOXSTOR V2 and UB 550/750 Cod.3.020861
Power supply 230 or 400 Vac.
Double electronic anode kit Cod.3.025003
Double electronic anode kit for OMNISTOR, INOXSTOR V2, MAGIS HERCULES PRO and MAGIS HERCULES PRO MINI
