UB 1000 V2

Vitrified Storage Tank Unit for production of domestic hot water.
The customer service provides
prompt answers within 24 hours.

Technical data UB 1000 V2

Code 3.027815
Capacity (litre) 888,5
Dimensions (H) mm 2110
External diameter mm Ø 950
Type production of domestic hot water
Material vitrified steel

Technical data UB 1000 V2

Code 3.027815
Capacity (litre) 888,5
Dimensions (H) mm 2110
External diameter mm Ø 950
Type production of domestic hot water
Material vitrified steel

Gallery

Vitrified steel storage tank unit for DHW production.
The UB 1000 V2 litres Storage Tank Unit is equipped with two concentric coil shaped stainless steel water to water heat exchangers, one magnesium anode and 2 probe-supports and NTC probe for Immergas boiler connection < 35 kW, all of them furnished as standard. Internal surface is characterized by an internal glazed enamel treatment (also called vitrification), that gives great resistance to corrosion due to water and steam, and preserves DHW physical and chemical qualities from any kind of alteration. Inspection flange is present, placed in the lower part of the unit. Polyurethane (PU) rigid insulation thick 70 mm which can be disassembled in case of necessity. UB 1000 V2 body is prearranged for the insertion of electric resistance kit.
Ideal solution for light commercial systems, the product has 5 years conventional warranty.

...

Additional 5 kW electric resistance kit for UB 1000/1500 and UB 750   Cod.3.020862

Power supply 230 or 400 Vac.

Vitrified steel storage tank unit for DHW production.
The UB 1000 V2 litres Storage Tank Unit is equipped with two concentric coil shaped stainless steel water to water heat exchangers, one magnesium anode and 2 probe-supports and NTC probe for Immergas boiler connection < 35 kW, all of them furnished as standard. Internal surface is characterized by an internal glazed enamel treatment (also called vitrification), that gives great resistance to corrosion due to water and steam, and preserves DHW physical and chemical qualities from any kind of alteration. Inspection flange is present, placed in the lower part of the unit. Polyurethane (PU) rigid insulation thick 70 mm which can be disassembled in case of necessity. UB 1000 V2 body is prearranged for the insertion of electric resistance kit.
Ideal solution for light commercial systems, the product has 5 years conventional warranty.

...

Additional 5 kW electric resistance kit for UB 1000/1500 and UB 750   Cod.3.020862

Power supply 230 or 400 Vac.

Related products

UB 1500 V2
Vitrified Storage Tank Unit for production of domestic hot water.

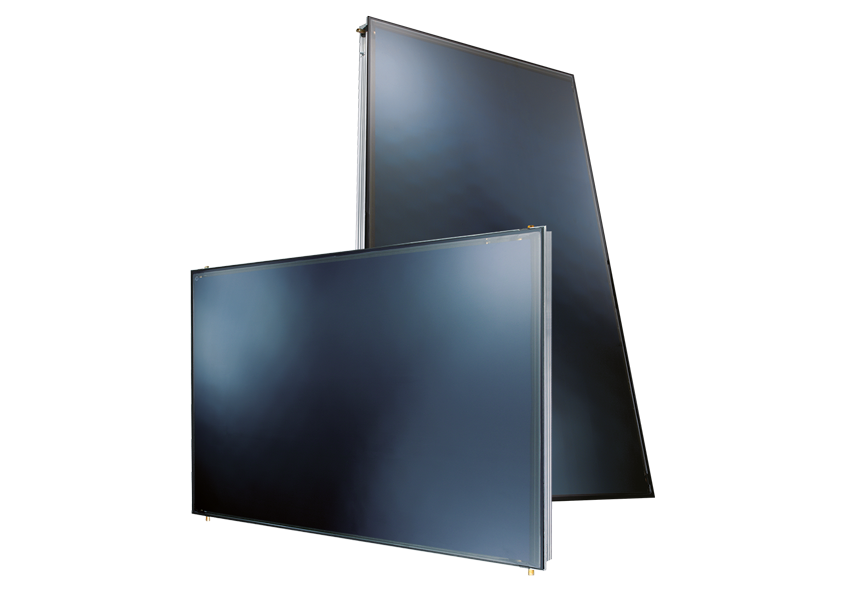

CP4 M Flat-Plate Collector
