NIKE ECO 24
Wall-hung combi, open chamber and conventional flue
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Ideal for connection to multiple inlet chimneys
Technical data NIKE ECO 24 |
|
|---|---|
| Code | 3.028476 |
| C.H. Energy class | C |
| D.H.W. Energy class - Stated load profile | B / XL |
| Heat output kW | 24 |
| Dimensions (HxWxD) mm | 785 x 440 x 340 |
| Type | combi |
| Modulating heat output | 35 - 100% |
| D.H.W. production (∆t 30°C) l/min | 11,2 |
Technical data NIKE ECO 24 |
|
|---|---|
| Code | 3.028476 |
| C.H. Energy class | C |
| D.H.W. Energy class - Stated load profile | B / XL |
| Heat output kW | 24 |
| Dimensions (HxWxD) mm | 785 x 440 x 340 |
| Type | combi |
| Modulating heat output | 35 - 100% |
| D.H.W. production (∆t 30°C) l/min | 11,2 |
Gallery

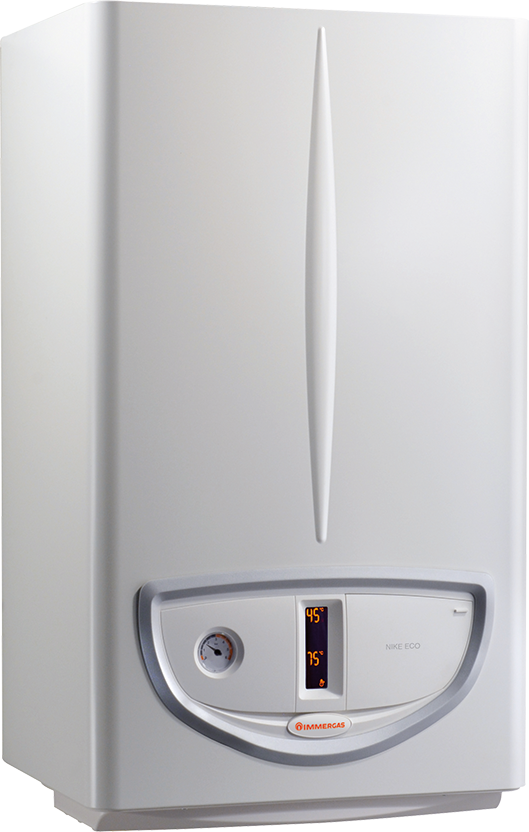

Wall-hung combi open chamber and conventional flue boiler, with low NOx eco-friendly burner.
24 kW heat output.
NIKE ECO 24 is approved for indoor installation and designed for natural gas only.
The visible keys and the backlit LCD display guarantee an intuitive and user-friendly boiler parameter setting together with the possibility of checking all operating parameters. The microprocessor based advanced electronics allows the coupling with optional kits for the climatic thermoregulation.
NIKE ECO 24 is pre-arranged for receiving water pre-heated by a solar storage tank. By choosing this function among the operating parameters, the burner will be ignited only if it is necessary to integrate the heating of the DHW from the solar storage tank.

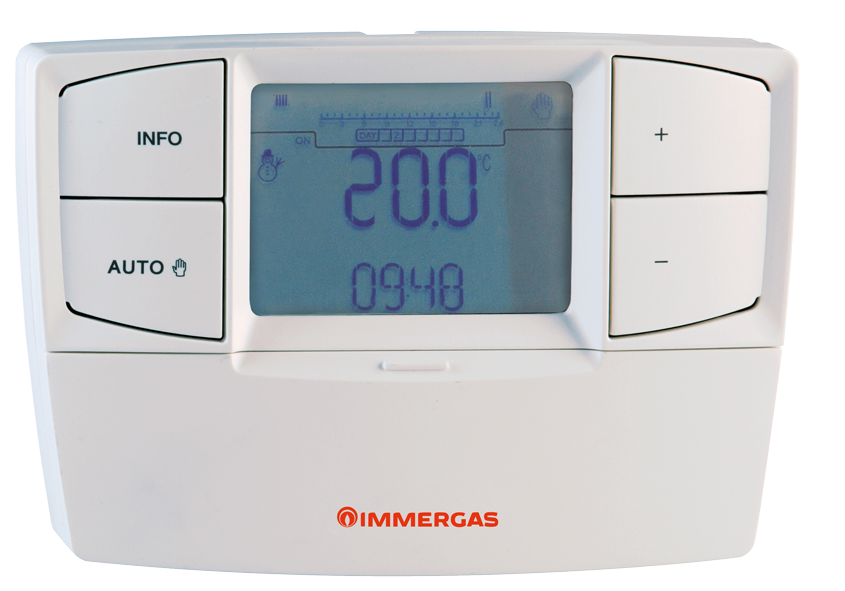

CARV2 (weekly chronothermostat and modulating remote control) Cod.3.021395
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
*as standard
CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control) Cod.3.021623
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%
* default settings
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating energy efficiency 2%* or 3,5%
* default settings
Control box for pumps and zone Cod.3.011668
Maximum three zones.
Available for all models except VICTRIX TERA VIP, VICTRIX TERA/X, MYTHOS HP. NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
DOMINUS interface kit Cod.3.026273
To control heat pumps, system or gas boilers and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the heat pump’s circuit board from any location.
External probe Cod.3.014083
Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%
* as standard
GSM telephonic control Cod.3.017182
For buildings not equipped with telephone network. Available for all Immergas models.
MINI CRD (MINI weekly chronothermostat and modulating remote control) Cod.3.020167
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
Multi-zone electronic board Cod.3.028444
It can manage 4 zones at the same temperature or 1 mixed and 1 direct zone by remote modulating controls (ie. CAR V2).
For VICTRIX ZEUS, VICTRIX MAIOR TT/X, VICTRIX TT ErP/X, VICTRIX EXA/X, VICTRIX TERA VIP, VICTRIX TERA/PLUS, VICTRIX OMNIA, MYTHOS HP, NIKE/AVIO ECO and NIKE STAR 24.
Solar probe kit Cod.3.021452
For VICTRIX TT SERIES, VICTRIX EXA, VICTRIX TERA, VICTRIX TERA VIP, NIKE ECO 24, MAIOR EOLO and MAGIS COMBO V2
Telephonic control Cod.3.013305
For buildings equipped with telephone network. Available for all Immergas models.
2 litres additional expansion vessel Cod.3.018433
Available for MAGIS VICTRIX ErP, MAGIS HERCULES ErP and for ZEUS kW, ZEUS SUPERIOR kW, VICTRIX ZEUS SUPERIOR ErP, AVIO ECO 24, NIKE ECO 24, VICTRIX SUPERIOR ErP/X ErP, MAIOR EOLO, MINI EOLO/NIKE and MINI EOLO/NIKE X.
All-purpose connection kit for wall-hung combi boilers Cod.3.011667
For wall-hung combi boilers and also for wall-hung with built-in storage tank.
Anti-scale kit Cod.3.016305
Available for: MAIOR EOLO, NIKE Mini 28 kW Special and MINI NIKE/EOLO.
Mixing valve kit Cod.3.027084
For multi-zone electronic board (code 3.028444)
Shut off knobs Cod.3.5324
For wall-hung outdoor boilers.
Solar valve Cod.3.018911
Allows the connection between combi boiler and solar system.
Available for: VICTRIX Superior TOP, VICTRIX, MAIOR EOLO, NIKE Mini 28 kW Special, MINI NIKE/EOLO and NIKE/EOLO Star.
Wall-hung combi open chamber and conventional flue boiler, with low NOx eco-friendly burner.
24 kW heat output.
NIKE ECO 24 is approved for indoor installation and designed for natural gas only.
The visible keys and the backlit LCD display guarantee an intuitive and user-friendly boiler parameter setting together with the possibility of checking all operating parameters. The microprocessor based advanced electronics allows the coupling with optional kits for the climatic thermoregulation.
NIKE ECO 24 is pre-arranged for receiving water pre-heated by a solar storage tank. By choosing this function among the operating parameters, the burner will be ignited only if it is necessary to integrate the heating of the DHW from the solar storage tank.
CARV2 (weekly chronothermostat and modulating remote control) Cod.3.021395
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
*as standard
CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control) Cod.3.021623
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%
* default settings
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating energy efficiency 2%* or 3,5%
* default settings
Control box for pumps and zone Cod.3.011668
Maximum three zones.
Available for all models except VICTRIX TERA VIP, VICTRIX TERA/X, MYTHOS HP. NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
DOMINUS interface kit Cod.3.026273
To control heat pumps, system or gas boilers and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the heat pump’s circuit board from any location.
External probe Cod.3.014083
Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%
* as standard
GSM telephonic control Cod.3.017182
For buildings not equipped with telephone network. Available for all Immergas models.
MINI CRD (MINI weekly chronothermostat and modulating remote control) Cod.3.020167
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
Multi-zone electronic board Cod.3.028444
It can manage 4 zones at the same temperature or 1 mixed and 1 direct zone by remote modulating controls (ie. CAR V2).
For VICTRIX ZEUS, VICTRIX MAIOR TT/X, VICTRIX TT ErP/X, VICTRIX EXA/X, VICTRIX TERA VIP, VICTRIX TERA/PLUS, VICTRIX OMNIA, MYTHOS HP, NIKE/AVIO ECO and NIKE STAR 24.
Solar probe kit Cod.3.021452
For VICTRIX TT SERIES, VICTRIX EXA, VICTRIX TERA, VICTRIX TERA VIP, NIKE ECO 24, MAIOR EOLO and MAGIS COMBO V2
Telephonic control Cod.3.013305
For buildings equipped with telephone network. Available for all Immergas models.
2 litres additional expansion vessel Cod.3.018433
Available for MAGIS VICTRIX ErP, MAGIS HERCULES ErP and for ZEUS kW, ZEUS SUPERIOR kW, VICTRIX ZEUS SUPERIOR ErP, AVIO ECO 24, NIKE ECO 24, VICTRIX SUPERIOR ErP/X ErP, MAIOR EOLO, MINI EOLO/NIKE and MINI EOLO/NIKE X.
All-purpose connection kit for wall-hung combi boilers Cod.3.011667
For wall-hung combi boilers and also for wall-hung with built-in storage tank.
Anti-scale kit Cod.3.016305
Available for: MAIOR EOLO, NIKE Mini 28 kW Special and MINI NIKE/EOLO.
Mixing valve kit Cod.3.027084
For multi-zone electronic board (code 3.028444)
Shut off knobs Cod.3.5324
For wall-hung outdoor boilers.
Solar valve Cod.3.018911
Allows the connection between combi boiler and solar system.
Available for: VICTRIX Superior TOP, VICTRIX, MAIOR EOLO, NIKE Mini 28 kW Special, MINI NIKE/EOLO and NIKE/EOLO Star.
