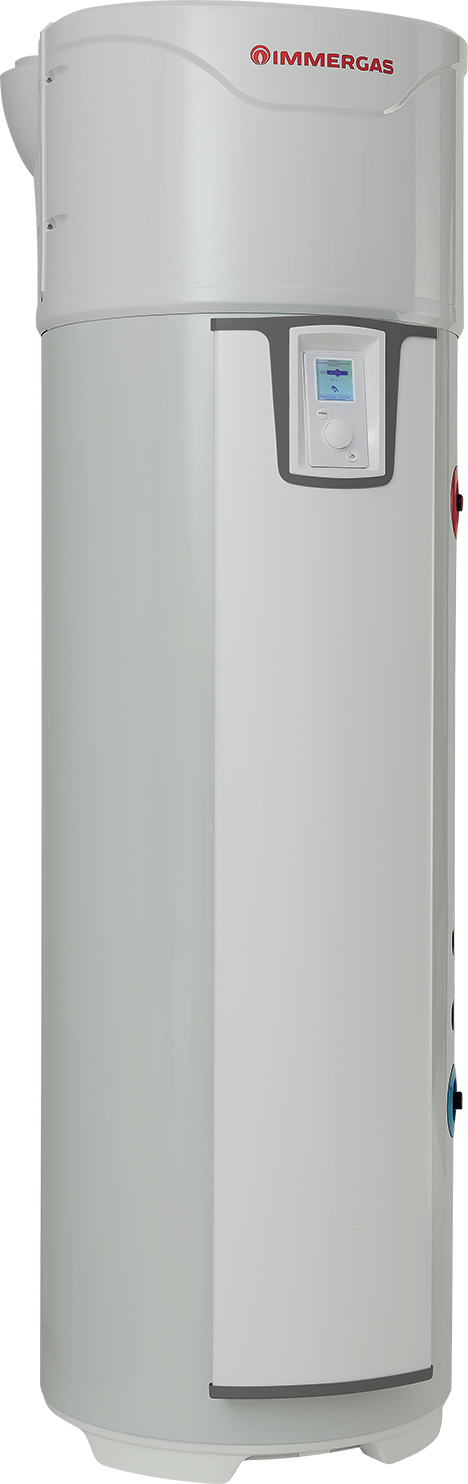

RAPAX 300 SOL V3

Heat pump water heater with solar thermal configuration
The customer service provides
prompt answers within 24 hours.
3 star marking sanitary comfort
User-friendly interface
Easy installation

Technical data RAPAX 300 SOL V3

Code 3.030073
D.H.W. Energy class - Stated load profile A+ / XL
Capacity (litre) 263
Heating pump nominal power output kW 2,40
Dimensions (HxWxD) mm 1957 x 620 x 665
Refrigerant gas R513A
COP 15°C 3,44
COP 7°C 3,05

Technical data RAPAX 300 SOL V3

Code 3.030073
D.H.W. Energy class - Stated load profile A+ / XL
Capacity (litre) 263
Heating pump nominal power output kW 2,40
Dimensions (HxWxD) mm 1957 x 620 x 665
Refrigerant gas R513A
COP 15°C 3,44
COP 7°C 3,05

Gallery

RAPAX heat pump water heaters can completely eliminate the use of gas for domestic hot water because they apply the same principle as heat pumps.
This is one of the new, effective solutions designed by Immergas to make the best use of renewable energy sources.

RAPAX 300 SOL V3 heat pump water heaters have a 263 litre insulated enamelled steel storage tank and can be installed even in a garage, laundry or storeroom.
The RAPAX range is ideal when renovating and creating heating systems in detached houses to produce domestic hot water with renewable energy sources. It is an excellent alternative to solar energy and can be used in systems designed for operation without gas for the production of domestic hot water and, combined with a heat pump, to provide air conditioning.
The RAPAX 300 SOL V3 version has been designed to supplement DHW production with a forced-circulation solar heating system connected to the special fittings of the bottom coil RAPAX SOL V3 is also equipped with specific features to enhance performance of the photovoltaic system.

...

Solar central unit kit   Cod.3.019097

La centralina solare è completa di sonde temperatura per Collettore e Unità Bollitore. Display retroilluminato.
Può essere integrata nelle Unità Bollitore UB INOX 120 V2 e UB INOX 200 V2.

...

2 x 45° bend kit Ø 160   Cod.3.024518

for RAPAX 200/300 V3 and 200/300 SOL V3

...

87° bend kit Ø 160   Cod.3.024517

for RAPAX 200/300 V3 and 200/300 SOL V3
...

Duct adapter Ø 160   Cod.3.025232

for RAPAX 200/300 V3 and 200/300 SOL V3


...

Extension pipe kit Ø 160 0,5 m long   Cod.3.024659

For RAPAX 200/300 V3 e 200/300 SOL
...

Extension pipe kit Ø 160 0,5 m long   Cod.3.024516

For RAPAX 200/300 V3 e 200/300 SOL
...

Inlet/exhaust pipes insulation kit   Cod.3.027545

For RAPAX 200/300 V3 and 200/300 SOL V3

...

18 litre expansion vessel kit   Cod.3.019131

Including metal clamp and wall fixing bracket.
The expansion vessel must be dimensioned according to the content of the solar circuit fluid and the stagnation temperature of the collectors.
...

HYDRO IN 200   Cod.3.029841

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 400   Cod.3.029842

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 600   Cod.3.029843

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 800   Cod.3.029844

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 1000   Cod.3.029845

Wall and ceiling built-in hydronic fancoil



...

Safety valve 7 bar and 12 litres expansion vessel kit   Cod.3.025231

For RAPAX 200/300 V3 and 200/300 SOL V3
It can be fixed into wall thanks to brackets (as standard).
...

Single solar pump station (1-6 l/min) ErP   Cod.3.025662

The kit includes: circulation pump, 6 bar safety valve, 0-10 bar pressure gauge, one-way ball valve, thermometer and connection to the safety unit, flow rate regulated and filling and draining valve, filling valve, draining valve, insulation.
1" hydraulic connections, 230 V ~ power supply voltage.
...

Tank of glycol for CP4 XL/M Flat-Plate Collectors   Cod.3.028517

The kit includes:
one 20 kg can of glycol and propylene already mixed and ready to use.
Antifreeze protection up to - 25 °C.

RAPAX heat pump water heaters can completely eliminate the use of gas for domestic hot water because they apply the same principle as heat pumps.
This is one of the new, effective solutions designed by Immergas to make the best use of renewable energy sources.

RAPAX 300 SOL V3 heat pump water heaters have a 263 litre insulated enamelled steel storage tank and can be installed even in a garage, laundry or storeroom.
The RAPAX range is ideal when renovating and creating heating systems in detached houses to produce domestic hot water with renewable energy sources. It is an excellent alternative to solar energy and can be used in systems designed for operation without gas for the production of domestic hot water and, combined with a heat pump, to provide air conditioning.
The RAPAX 300 SOL V3 version has been designed to supplement DHW production with a forced-circulation solar heating system connected to the special fittings of the bottom coil RAPAX SOL V3 is also equipped with specific features to enhance performance of the photovoltaic system.

...

Solar central unit kit   Cod.3.019097

La centralina solare è completa di sonde temperatura per Collettore e Unità Bollitore. Display retroilluminato.
Può essere integrata nelle Unità Bollitore UB INOX 120 V2 e UB INOX 200 V2.

...

2 x 45° bend kit Ø 160   Cod.3.024518

for RAPAX 200/300 V3 and 200/300 SOL V3

...

87° bend kit Ø 160   Cod.3.024517

for RAPAX 200/300 V3 and 200/300 SOL V3
...

Duct adapter Ø 160   Cod.3.025232

for RAPAX 200/300 V3 and 200/300 SOL V3


...

Extension pipe kit Ø 160 0,5 m long   Cod.3.024659

For RAPAX 200/300 V3 e 200/300 SOL
...

Extension pipe kit Ø 160 0,5 m long   Cod.3.024516

For RAPAX 200/300 V3 e 200/300 SOL
...

Inlet/exhaust pipes insulation kit   Cod.3.027545

For RAPAX 200/300 V3 and 200/300 SOL V3

...

18 litre expansion vessel kit   Cod.3.019131

Including metal clamp and wall fixing bracket.
The expansion vessel must be dimensioned according to the content of the solar circuit fluid and the stagnation temperature of the collectors.
...

HYDRO IN 200   Cod.3.029841

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 400   Cod.3.029842

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 600   Cod.3.029843

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 800   Cod.3.029844

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 1000   Cod.3.029845

Wall and ceiling built-in hydronic fancoil



...

Safety valve 7 bar and 12 litres expansion vessel kit   Cod.3.025231

For RAPAX 200/300 V3 and 200/300 SOL V3
It can be fixed into wall thanks to brackets (as standard).
...

Single solar pump station (1-6 l/min) ErP   Cod.3.025662

The kit includes: circulation pump, 6 bar safety valve, 0-10 bar pressure gauge, one-way ball valve, thermometer and connection to the safety unit, flow rate regulated and filling and draining valve, filling valve, draining valve, insulation.
1" hydraulic connections, 230 V ~ power supply voltage.
...

Tank of glycol for CP4 XL/M Flat-Plate Collectors   Cod.3.028517

The kit includes:
one 20 kg can of glycol and propylene already mixed and ready to use.
Antifreeze protection up to - 25 °C.
