MAGIS COMBO 6 V2
Spilt type reversible air-to-water inverter hybrid heat pump composed by an outdoor condensing unit and a indoor hydronic condensing unit
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Noiseless
Easy installation
Heating and cooling
Technical data MAGIS COMBO 6 V2 |
|
|---|---|
| Code | 3.030611 |
| C.H. Energy class at 55 °C | A++ |
| D.H.W. Energy class - Stated load profile | A / XL |
| Heating output kW | 6,00 |
| Cooling output kW | 6,50 |
| Indoor Unit (HxWxD) mm | 787 x 440 x 400 |
| Outdoor Unit (HxWxD) mm | 638 x 880 x 364 |
| Refrigerant gas | R32 |
| COP | 4,92 |
| EER | 4,42 |
| Outdoor unit weight (kg) | 47,5 |
| Indoor unit weight (kg) | 55,8 |
Technical data MAGIS COMBO 6 V2 |
|
|---|---|
| Code | 3.030611 |
| C.H. Energy class at 55 °C | A++ |
| D.H.W. Energy class - Stated load profile | A / XL |
| Heating output kW | 6,00 |
| Cooling output kW | 6,50 |
| Indoor Unit (HxWxD) mm | 787 x 440 x 400 |
| Outdoor Unit (HxWxD) mm | 638 x 880 x 364 |
| Refrigerant gas | R32 |
| COP | 4,92 |
| EER | 4,42 |
| Outdoor unit weight (kg) | 47,5 |
| Indoor unit weight (kg) | 55,8 |
Gallery

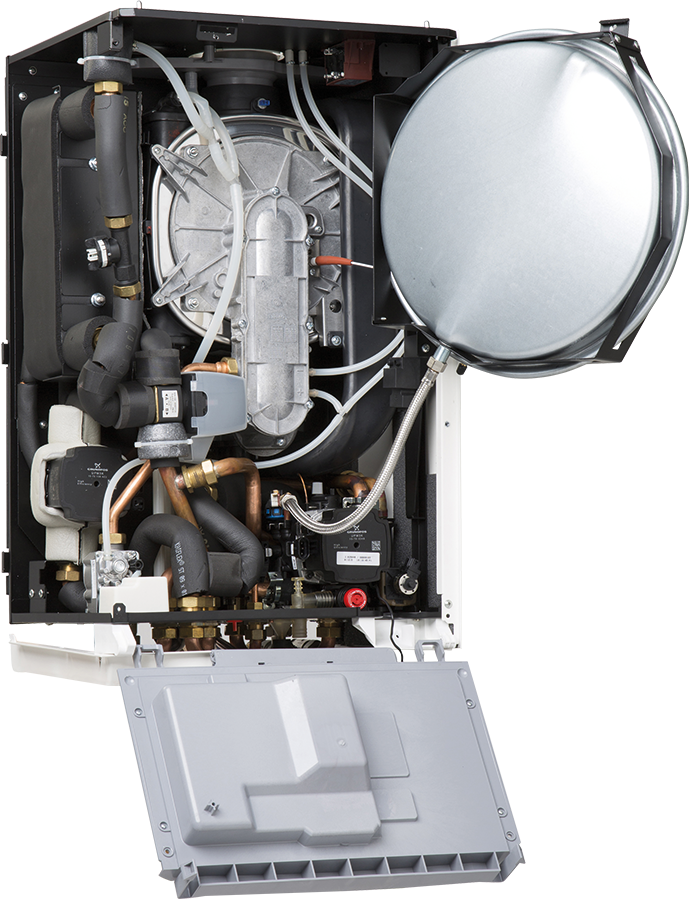

Split air to water, inverter-driven monophase hybrid heat pump system, consisting of outdoor heat pump unit and indoor hydronic and condensing unit.
The new MAGIS COMBO V2 hybrid heat pumps are appliances designed to use outside air as a partially renewable heat source by transferring its thermal energy content to the central heating system. MAGIS COMBO V2 is the hybrid heat pump that heats, cools and produces hot water with an internal condensing unit designed to meet the highest demands, its heating temperature can reach up to 80 °C.
For installation it's necessary the degree of training required to professional people (that have to be in possess of F-GAS certification) involved in the installation and their mutual connection by means of the gas circuit. The inverter driven control allows a very fine power output modulation control, together with reduction of the power input, succeeding in high level performances for more comfortable indoor climatic conditions.
MAGIS COMBO V2 are domestic-purpose-suit systems, and they are the ideal solution in new, high energy rating buildings, even when located in extremely cold areas, with very low outdoor-winter-temperatures.

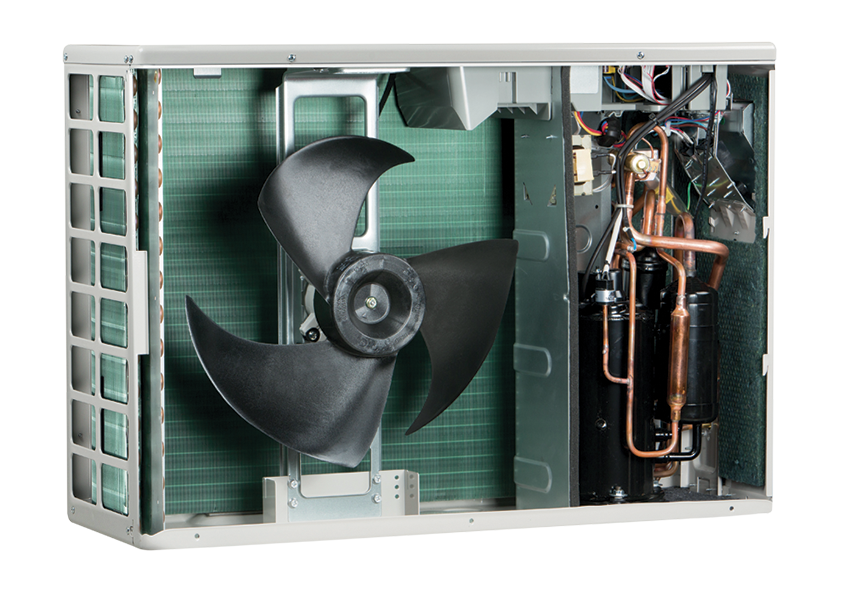

The very compact external unit (smaller compared to the most diffused hydronic heat pump models), installable both on balcony and fully outdoor, allows to MAGIS COMBO V2 enhanced positional flexibility together with a minimal aestethic effect on the overall style.
MAGIS COMBO V2 is ideal for combination with photovoltaic systems.
2 relays board kit Cod.3.026302
To be installed for the deumidifiers management without in absence of system manager kit.
Dedicated to MAGIS PRO V2 and MAGIS COMBO V2
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%
* default settings
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating energy efficiency 2%* or 3,5%
* default settings
DOMINUS interface kit Cod.3.026273
To control heat pumps, system or gas boilers and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the heat pump’s circuit board from any location.
External probe Cod.3.015266
To be used when external probe as standard in outdoor unit is not correctly exposed.
Temperature control class II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4 or 3,5%
* default settings
GSM telephonic control Cod.3.017182
For buildings not equipped with telephone network. Available for all Immergas models.
Low temperature safety thermostat kit Cod.3.019229
For generators settled up with low temperature

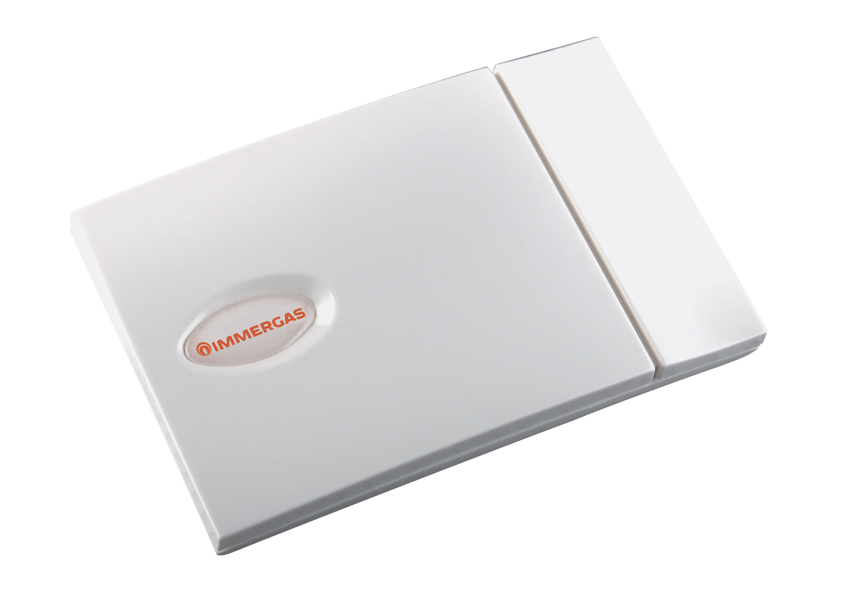

Mod-bus temperature and humidity sensor Cod.3.030992
To be used with radiant systems that also work in cooling mode
Temperature control class V or VI*
Contribution to seasonal space heating energy efficiency
3% or 4%*
* default settings
Relay board kit Cod.3.015350
Allows interface between zone valves and CAR V2 or SUPER CAR, to send an alarm signal, to manage external pump etc.
To be installed inside internal unit both in MAGIS COMBO V2 and MAGIS PRO V2
Remote Control Panel Cod.3.030863
Modulating chronotermostat, remote control with temperature/humidity sensor
Temperature control class V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%
* default settings
Room hygrostat Cod.3.023302
To be used with radiant systems that also work in cooling mode.
Solar probe kit Cod.3.021452
For VICTRIX TT SERIES, VICTRIX EXA, VICTRIX TERA, VICTRIX TERA VIP, NIKE ECO 24, MAIOR EOLO and MAGIS COMBO V2
System delivery probe kit Cod.3.030913
To be positioned after the heating system manifold.
Telephonic control Cod.3.013305
For buildings equipped with telephone network. Available for all Immergas models.
1 extension pipe Ø 80 2 m long Cod.3.016837
For condensing boilers < 35 kW.
4 extension pipes Ø 80 kit 0,5 m long Cod.3.014642
For condensing boilers < 35 kW.
4 x 90° bends Ø 80 kit Cod.3.012091
For condensing boilers < 35 kW.
45° bend Ø 60/100 kit Cod.3.012095
For condensing boiler < 35 kW.
45° bend Ø 80 kit Cod.3.012092
For condensing boilers < 35 kW.
90° bend Ø 60/100 kit Cod.3.012093
For condensing boiler < 35 kW.
Additional exhaust manifold kit Ø 250 with flue lock for 4 VICTRIX PRO 100/120 Cod.3.015343
Cascade installation - "Green Series" exhaust manifolds.
With installations in central heating systems, using up to 5 units in the battery, in configuration open chamber fan assisted, Immergas supplies special exhaust manifolds in PP equipped with flue lock (mechanical shutters), to prevent backflow of combustion products through the other non-functioning boilers.
The system is modular: there is an exhaust manifold kit for two boilers and one for additional boilers.
Additional exhaust manifold kit Ø 250 with flue lock for 4 VICTRIX PRO 100/120 Cod.3.015378
Cascade installation - "Green Series" exhaust manifolds.
With installations in central heating systems, using up to 5 units in the battery, in configuration open chamber fan assisted, Immergas supplies special exhaust manifolds in PP equipped with flue lock (mechanical shutters), to prevent backflow of combustion products through the other non-functioning boilers.
The system is modular: there is an exhaust manifold kit for two boilers and one for additional boilers.
Additional exhaust manifold kit Ø 250 with flue lock for 4 VICTRIX PRO 100/120 Cod.3.015345
Cascade installation - "Green Series" exhaust manifolds.
With installations in central heating systems, using up to 5 units in the battery, in configuration open chamber fan assisted, Immergas supplies special exhaust manifolds in PP equipped with flue lock (mechanical shutters), to prevent backflow of combustion products through the other non-functioning boilers.
The system is modular: there is an exhaust manifold kit for two boilers and one for additional boilers.
Anti-wind vertical terminal kit Ø 80 Cod.3.021721
For condensing boiler < 35 kW.
Concentric horizontal complete kit Ø 60/100 Cod.3.012000
Max lenght 12,9 m.
For condensing boiler < 35 kW.
Concentric vertical complete kit Ø 60/100 (red ocher colour) Cod.3.016833
for condensing boilers < 35 kW.
Extension pipe kit Ø 60/100 0,5 m long Cod.3.014643
For condensing boiler < 35 kW.
Extension pipe kit Ø 60/100 1 m long Cod.3.012089
For condensing boiler < 35 kW.
Flanged stub-pipe + bend + extension pipe Ø 80 for flue discharge Cod.3.016365
For condensing boilers < 35 kW.
Horizontal concentric complete kit Ø 60/100 Short Cod.3.024598
Max lenght 11,9 m.
For condensing boiler < 35 kW.
Horizontal concentric complete kit Ø 60/100 with swivel terminal Cod.3.024267
Max lenght 9,9 m.
For condensing boiler < 35 kW except HP models.
Twin pipes complete kit Ø 80/80 Cod.3.012002
For condensing boiler < 35 kW.
Anti freeze protection kit -15 °C Cod.3.017324
Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.
Anti-scale kit for VICTRIX SUPERIOR, MAIOR TT, TT ErP, TT, EXA ErP, TERA, TERA VIP and MAGIS COMBO V2 Cod.3.017323
For VICTRIX SUPERIOR, MAIOR TT ErP, TT ErP, TT, EXA ErP, TERA, TERA VIP and MAGIS COMBO V2.
Bracket kit for wall mounting 75 inertial storage tank Cod.3.027290
Bracket kit for wall mounting inertial storage tank 75 litres code 3.027288.
Condensate discharge pump kit Cod.3.026374
For wall-hung boilers: compact condensate drain pump kit.
Condensate neutralizer kit Cod.3.019857
Necessary to neutralize the acidity of the condensation. Inclusive of granulate.
Connection kit for R32 circuit for MAGIS PRO V2 and MAGIS COMBO V2 Cod.3.030883
for an easy connection of the refrigerant circuit, even
in the case of pipes coming out from the wall on the
internal unit
in the case of pipes coming out from the wall on the
internal unit
Cover kit for MAGIS COMBO 4/6/9 V2 Cod.3.027082
Cover kit for MAGIS COMBO 4/6/9 V2
Dehumidifier back frame kit Cod.3.022146
Dehumidifier front grille kit Cod.3.022147
Dehumidifier kit Cod.3.021529
Only for recessed installation with codes 3.022146 and 3.022147
Distribution manifold for 1 direct and 1 mixed temperature zones Cod.3.026301
Kit to be used without system manager controller.
Dedicated to MAGIS PRO V2 4-6-9, MAGIS COMBO V2 4-6-9 and MAGIS HERCULES PRO MINI.
External cover kit with acoustical insulation for ZENITAIR-MONO Cod.3.030636
Anti-insect net and anti-wind in pre-painted steel, alternative to the one available with ZENITAIR-MONO.
HYDRO 3 Cod.3.033625
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO 4 Cod.3.033626
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO FS 200 Cod.3.028500
Floor standing hydronic fancoil
HYDRO FS 400 Cod.3.028501
Floor standing hydronic fancoil
HYDRO FS 600 Cod.3.028502
Floor standing hydronic fancoil
HYDRO FS 800 Cod.3.028503
Floor standing hydronic fancoil
HYDRO FS 1000 Cod.3.028505
Floor standing hydronic fancoil
HYDRO IN 600 Cod.3.029843
Wall and ceiling built-in hydronic fancoil
Vertical inertial storage tank 75 litre Cod.3.027288
Wall-hung (with bracket option kit) or floor-standing installation.
ZENITAIR MONO Cod.3.030601
Decentralised mechanical ventilation unit, easy to install, with alternate flow and heat recovery core.
Multifunction remote controller, with LCD display to visualise the status of the unit supplied as standard.
Split air to water, inverter-driven monophase hybrid heat pump system, consisting of outdoor heat pump unit and indoor hydronic and condensing unit.
The new MAGIS COMBO V2 hybrid heat pumps are appliances designed to use outside air as a partially renewable heat source by transferring its thermal energy content to the central heating system. MAGIS COMBO V2 is the hybrid heat pump that heats, cools and produces hot water with an internal condensing unit designed to meet the highest demands, its heating temperature can reach up to 80 °C.
For installation it's necessary the degree of training required to professional people (that have to be in possess of F-GAS certification) involved in the installation and their mutual connection by means of the gas circuit. The inverter driven control allows a very fine power output modulation control, together with reduction of the power input, succeeding in high level performances for more comfortable indoor climatic conditions.
MAGIS COMBO V2 are domestic-purpose-suit systems, and they are the ideal solution in new, high energy rating buildings, even when located in extremely cold areas, with very low outdoor-winter-temperatures.
The very compact external unit (smaller compared to the most diffused hydronic heat pump models), installable both on balcony and fully outdoor, allows to MAGIS COMBO V2 enhanced positional flexibility together with a minimal aestethic effect on the overall style.
MAGIS COMBO V2 is ideal for combination with photovoltaic systems.
