MAGIS PRO 12 V2
Heat pumps
Spilt type reversible air-to-water inverter driven heat pump system composed by an outdoor unit and a indoor hydronic unit
- Noiseless
- Easy installation
- Heating and cooling
The customer service provides prompt answers within 24 hours.
MAGIS PRO 12 V2

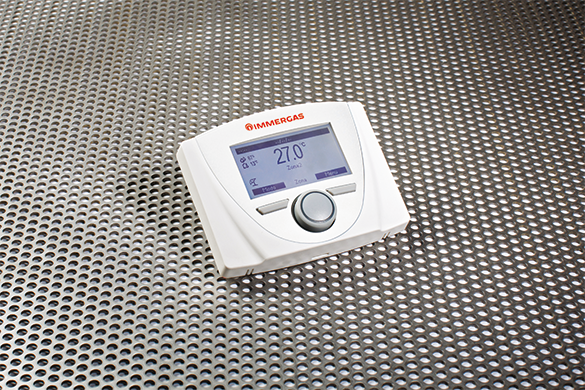

Remote control panel

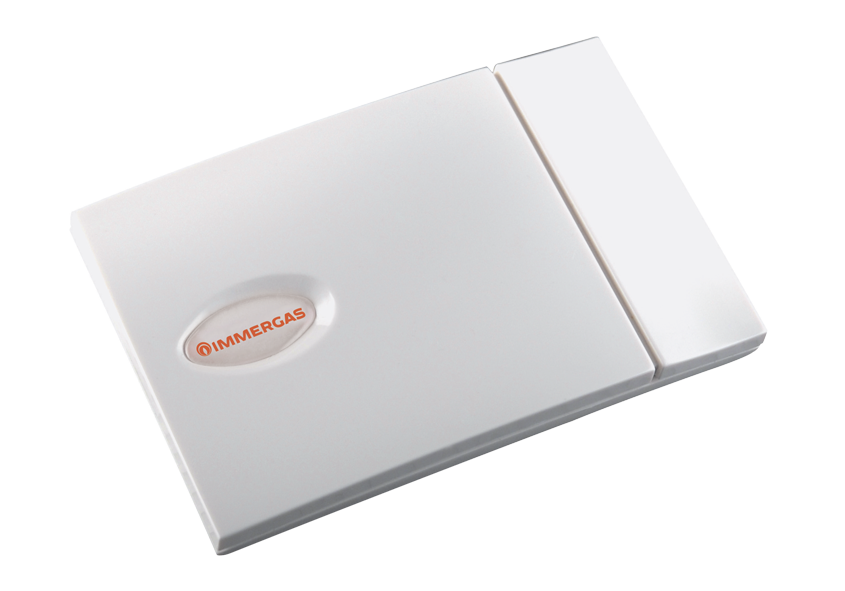

Temperature/humidity active sensor Modbus kit
| Technical data MAGIS PRO 12 V2 | |
|---|---|
| Code | 3.030663 |
| C.H. Energy class at 55 °C | A++ |
| C.H. Energy class at 35 °C | A+++ |
| Heating output kW | 12,00 |
| Cooling output kW | 12,00 |
| Indoor Unit (HxWxD) mm | 780 x 440 x 340 |
| Outdoor Unit (HxWxD) mm | 1420 x 940 x 384 |
| Refrigerant gas | R410A |
| COP | 4,63 |
| EER | 3,87 |
| Outdoor unit empty appliance weight (kg) | 100,0 |
| Indoor unit empty appliance weight (kg) | 38,5 |
Product presentation
Spilt type reversible air-to-water inverter driven heat pump system composed by an outdoor unit and an indoor hydronic unit
MAGIS PRO V2 heat pump system range are air-to-water appliances, designed to exploit outdoor air as renewable energy source. Such a kind of appliances are the ideal solution for central heating (maximum delivery temperature equal to 55 °C), cooling and domestic hot water production, thanks to the possible coupling with a separate storage tank unit. The “PRO" designation underlines the particular degreee of competence of the professional people involved in the design and installation process, to whom such a kind of technical solution is addressed; for instance, the completion of the refrigerant circuit and the connection between outdoor unit and the hydronic one, implies the posses for the installer of a spefic qualification (the so called F-Gas licence).
- Pre-loaded refrigerant fluid R410A
- High COP and EER values
- Maximum delivery temperature 55 °C
- Pre-arranged to manage up to 3 zones system
- Inverter driven compressor allows wide power-modulation range and low current absortion, succeeding in high level performances for more comfortable indoor climatic conditions
- Domestic-purpose-suit systems, ideal in new, high energy class buildings, even when located in extremely cold areas, with very low outdoor-winter-temperatures
MAGIS PRO V2 can be installed in stand alone configuration, or combined with a boiler and other renewable energy sources in integrated or hybrid, compact systems, working in central heating, cooling and/or DHW production.
