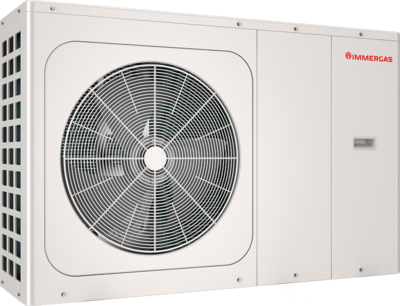

MAGIS M14
Heat pumps
Hydronic monobloc single-phase heat pumps
- Ideal for new buildings
- Standard thermoregulation
- Heating and cooling
The customer service provides prompt answers within 24 hours.
MAGIS M14
Dehumidifier

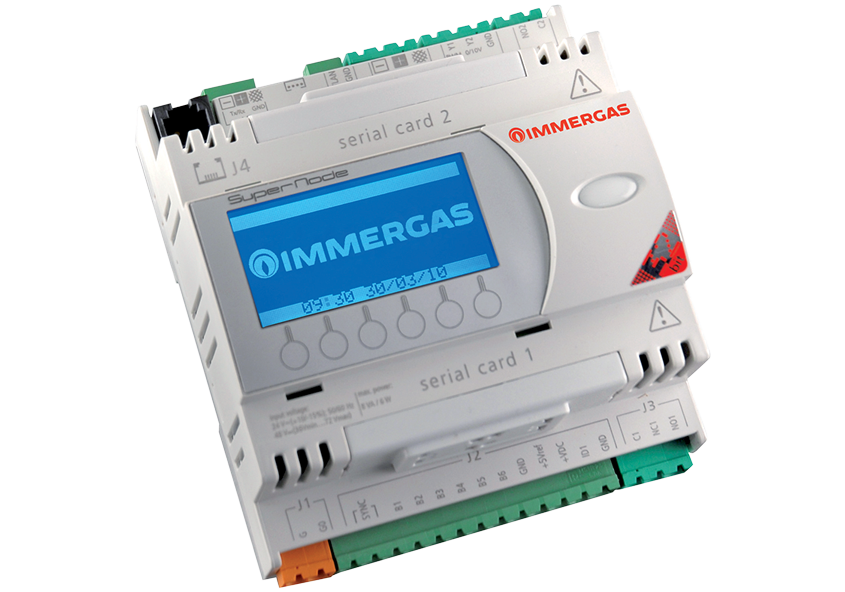

System manager

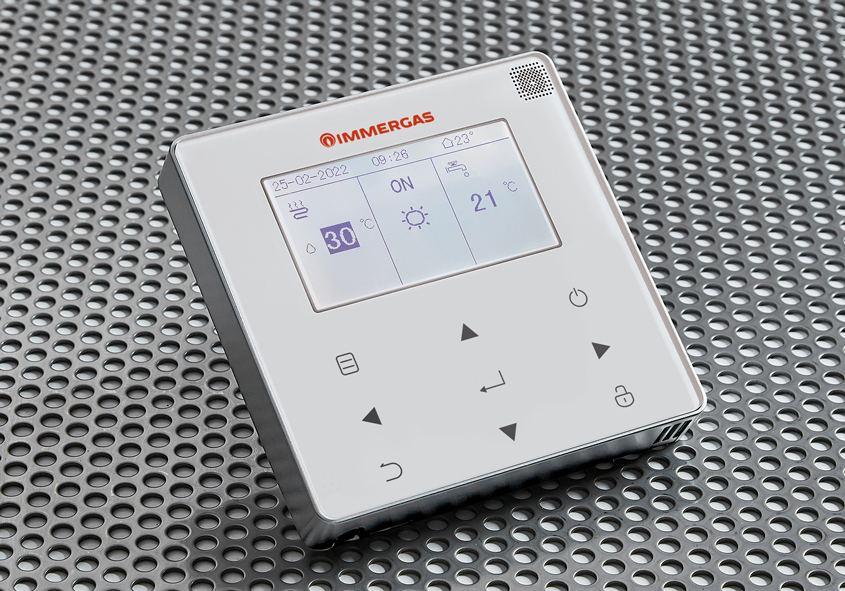

Remote control panel
| Technical data MAGIS M14 | |
|---|---|
| Code | 3.032376 |
| C.H. Energy class at 55 °C | A++ |
| C.H. Energy class at 35 °C | A+++ |
| Heating output kW | 14,50 |
| Cooling output kW | 13,50 |
| Dimensions (HxWxD) mm | 865 x 1385 x 526 |
| Refrigerant gas | R32 |
| COP | 4,60 |
| EER | 3,61 |
| Weight (kg) | 129 |
Product presentation
Hydronic monobloc single-phase heat pumps
• Pre-loaded refrigerant fluid R32;
• Remote control panel (with chronothermostat function) as standard;
• Including external probe, condensate discharge fitting, “Y" filter, 3 bar valve, 8 litres D.H.W. expansion vessel, low consumption pump system; probe to manage D.H.W. or 2nd mixed zone heating set point till 65°C
• Possibillity to realize integrated system (MAGIS M + gas boiler) with system controller
• Possibility to manage 1 zone heating/cooling, 1 zone only heating and 1 mixing valve
• Photovoltaic contact/Smart Grid
• Simple and multiple cascade
Components MAGIS M14
Discover all accessories
UB PRO SOL 800
Vitrified steel storage tank for production of domestic hot water
UB PRO SOL 1000
Vitrified steel storage tank for production of domestic hot water
