VICTRIX PRO 60 V2 EU
Light Commercial
Wall-hung modular condensing boiler for heating only
- Wide modulating heat output
- Ideal for energy efficiency upgrade
- Possible installation in cascade
Hydrogen Ready efficiency and technology.
The customer service provides prompt answers within 24 hours.
VICTRIX PRO 60 V2 EU

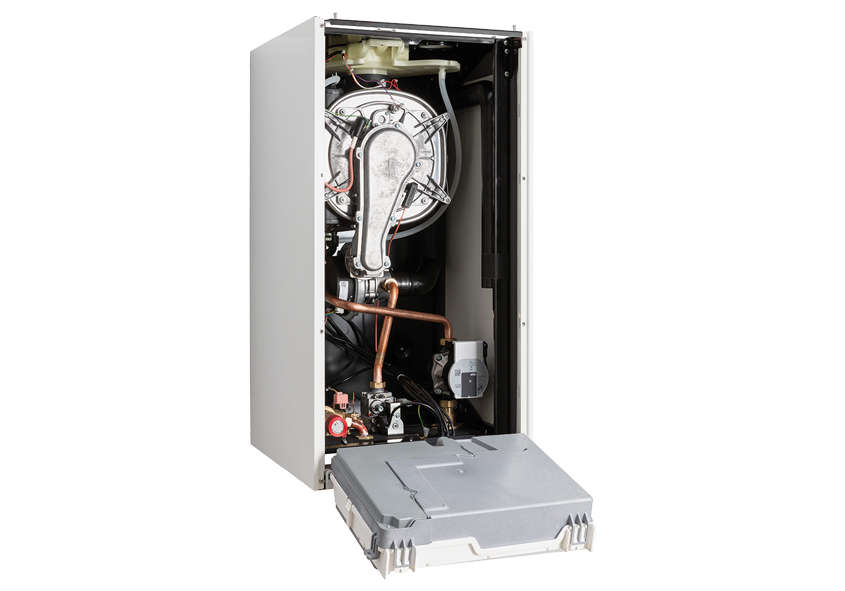

Internal detail

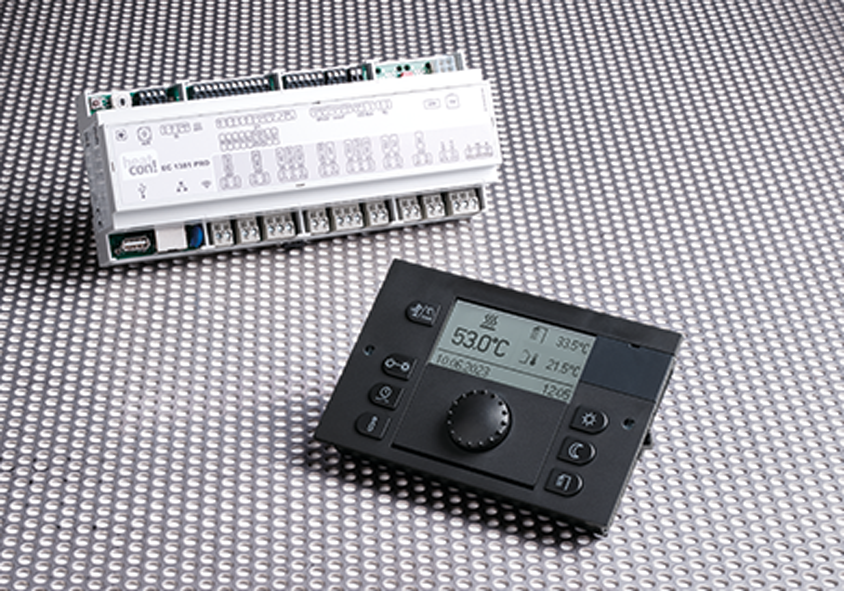

Cascade and zone regulator kit

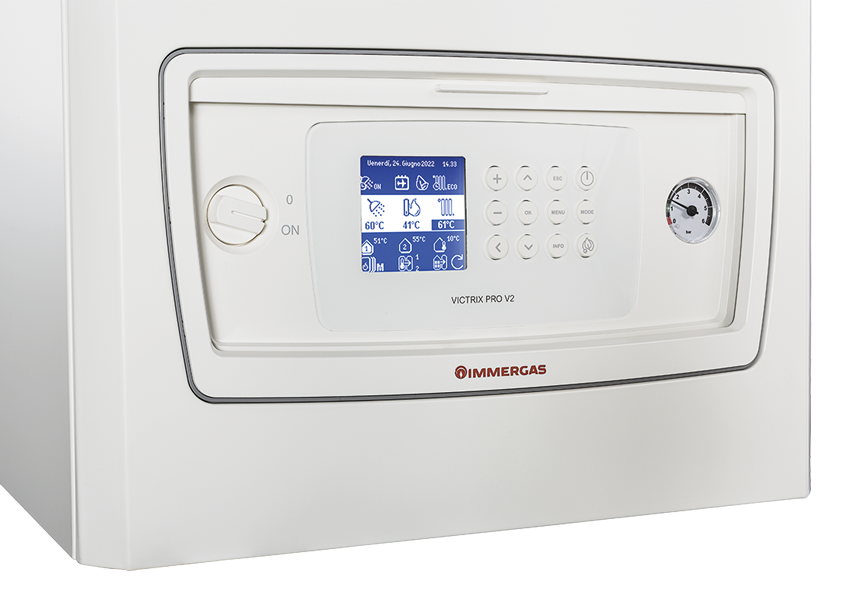

Control panel
| Technical data VICTRIX PRO 60 V2 EU | |
|---|---|
| Code | 3.033858 |
| Product plus | HYDROGEN READY 20% |
| Product plus | BIM READY |
| C.H. Energy class | A |
| Heat output ref. 80-60°C kW | 58,5 |
| Heat output ref. 50-30°C kW | 63,9 |
| Efficiency at nominal heat output ref. 80-60 °C | 97,7% |
| Efficiency at nominal heat output ref. 50-30 °C | 106,8% |
| Dimensions (HxWxD) mm | 851 (985) x 440 x 499 |
| Modulating heat output | 10 - 100% |
Product presentation
Wall-hung modular condensing boiler for heating only
Designed for light commercial solutions in residential and commercial buildings, the VICTRIX PRO V2 has high performances with reduced energy consumption, thanks to its high seasonal efficiency and 1:10 modulation range.
The advanced electronics allow to control up to 15 units in simple cascade.
The new design, compact and linear, with a vertical sliding door protecting the control board, makes its installation easy even in residential buildings (according to the current regulations in force in each country).
The boiler can be wall-mounted or installed as a floor-standing unit using the dedicated support frame. Certified for both indoor and outdoor installation, including unsheltered locations, it features IPX5D electrical protection and is supplied as standard with a −5 °C antifreeze protection (-15°C with an optional kit).
With very low CO and NOx emissions, the VICTRIX PRO V2 belongs to the Class 6, the highest environmental performance class defined by the European standards.
The VICTRIX PRO V2 is compatible with natural gas, LPG and 20% blend of hydrogen.
