HYDRO VENT 3 SX
Fancoil Units
Ducted hydronic fancoil
- Ideal for new buildings
- New modern design
- Heating and cooling
The customer service provides prompt answers within 24 hours.
HYDRO VENT 3 SX

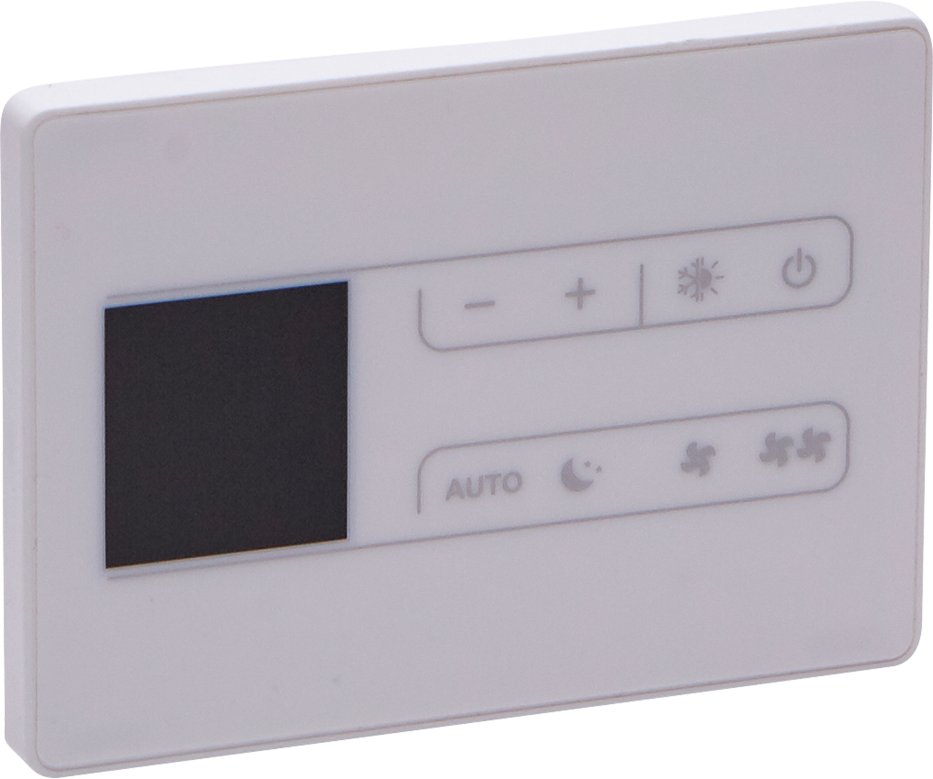

Control panel

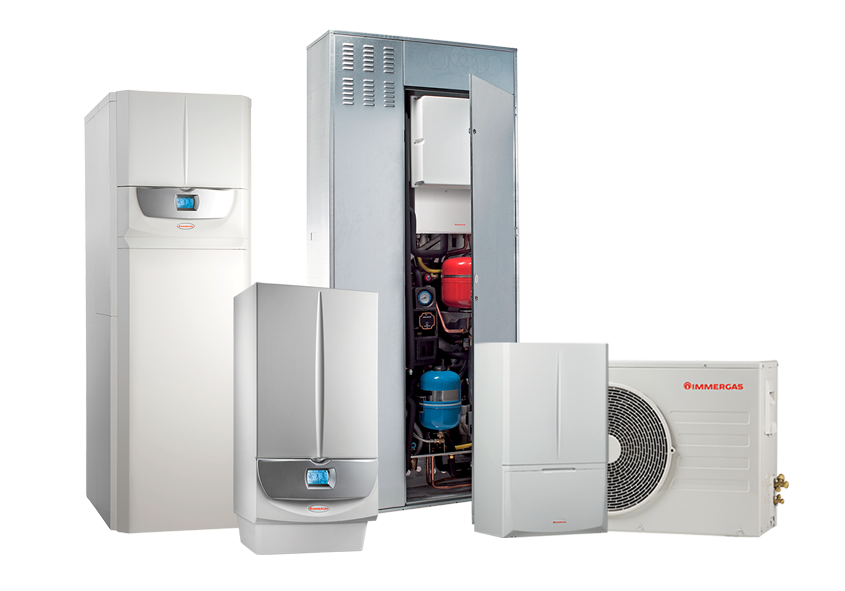

Hybrid range

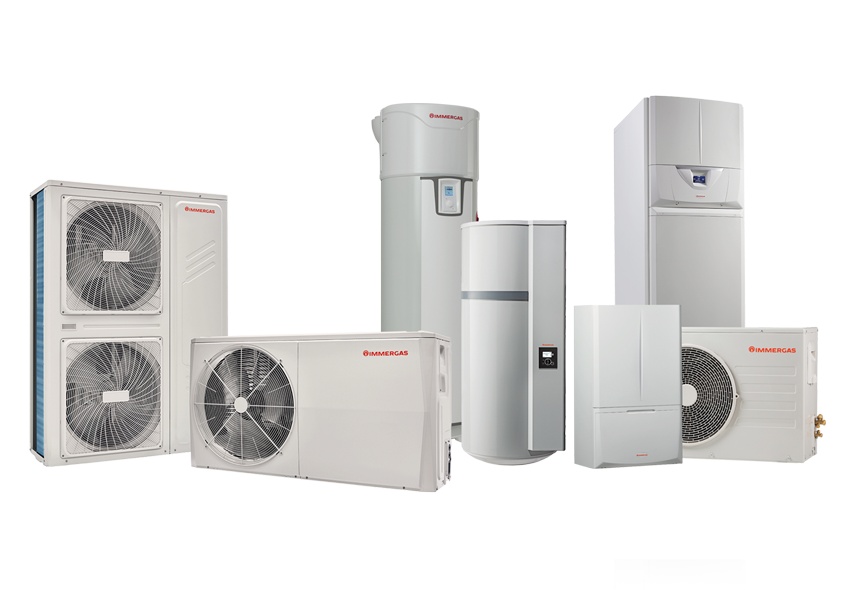

Heat pump range
Documentation
Catalogue
| Technical data HYDRO VENT 3 SX | |
|---|---|
| Code | 3.037128 |
| N° fans | 3 |
| Total power output in heating (W 45 A 20) kW | 6,94 |
| Total power output in cooling (W 7 A 27) kW | 5,54 |
| Dimensions (HxWxD) mm | 240 x 1130 x 735 |
| Weight (kg) | 38,0 |
Product presentation
The HYDRO VENT range of hydronic fancoils for ducted installations is the ideal solution for commercial buildings and large-scale facilities.
Key features:
- 8 multi-fan and multi-zone models available, can only be installed horizontally, recessed in a false ceiling, with the option of ducting air to different rooms.
- Non-reversible delivery and return hydraulic connections: on the left side (SX versions) and on the right side (DX versions)
- 160 mm diameter air delivery connections, single air recovery connection complete with filter
- 20 mm diameter condensate drain connection, complete with collection tray
- Extremely low noise impact thanks to the inverter-driven centrifugal fans with motor integrated in the fan wheel
- Management via the IMMER Vent app thanks to the new panels with integrated Wi-Fi module.
- Availability of numerous accessories
