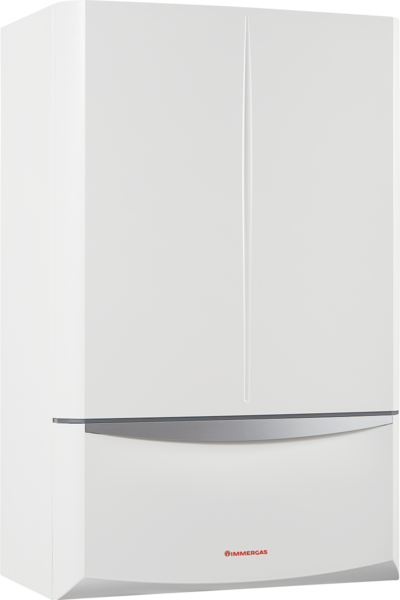

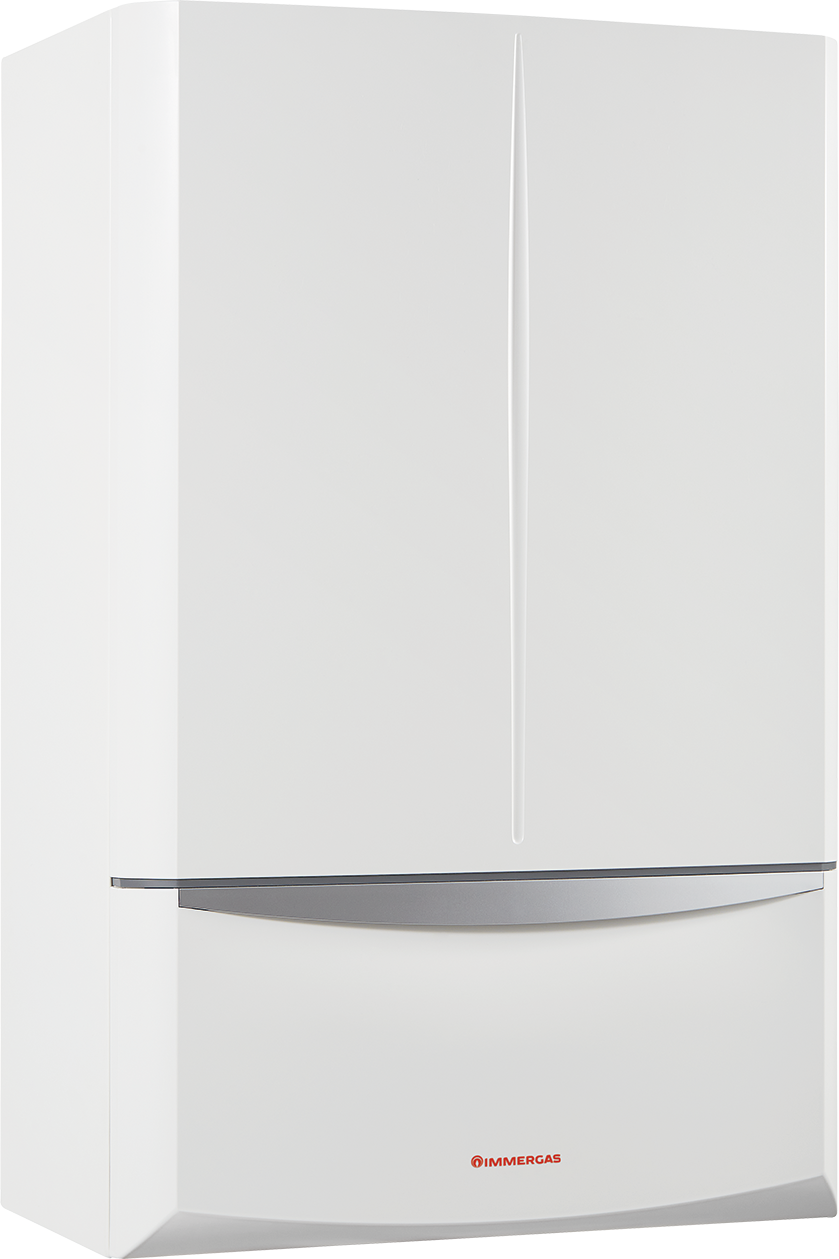

VICTRIX MAIOR 28
Wall-hung combi condensing boiler
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
User-friendly interface
High sanitary comfort
Digital display
Technical data VICTRIX MAIOR 28 |
|
|---|---|
| Code | 3.033697 |
| custom | Array |
| C.H. Energy class | A |
| D.H.W. Energy class - Stated load profile | A / XL |
| Heat output C.H. kW | 24,0 |
| Heat output D.H.W. kW | 28,0 |
| Dimensions (HxWxD) mm | 748 x 440 x 260 |
| Type | combi |
| Modulating heat output | 12 - 100 % |
| D.H.W. production (∆t 30°C) l/min | 13,4 |
Technical data VICTRIX MAIOR 28 |
|
|---|---|
| Code | 3.033697 |
| Product plus | HYDROGEN READY 20% |
| C.H. Energy class | A |
| D.H.W. Energy class - Stated load profile | A / XL |
| Heat output C.H. kW | 24,0 |
| Heat output D.H.W. kW | 28,0 |
| Dimensions (HxWxD) mm | 748 x 440 x 260 |
| Type | combi |
| Modulating heat output | 12 - 100 % |
| D.H.W. production (∆t 30°C) l/min | 13,4 |
Gallery
- High capacity expansion tank (12 liters for all models)
- Oversized DHW exchanger, up to 22 plates for higher power models
- Compact cyclonic magnetic filter integrated into the casing, as standard
- Seasonal efficiency ηs 94%, class A+ in combination with advanced climatic regulation
- Electronic gas valve à unique product code for methane, LPG, Polish gases
- Modulation range up to 1:12 (for higher power models)
- DHW flow regulator, highly distinctive element on the market, and DHW inlet probe as standard
- IPX5D, pre-arranged for internal and external installation, in partially protected places
- High fumes available head – powerful fans to achieve 13 meters with Ø50 flexible ducting
- Equipped as standard with a clapet valve downstream of the fan which, together with a second optional clapet valve to be installed on the fume exhaust, allows the C10-C12 installations (in collective flue systems operating under positive pressure)

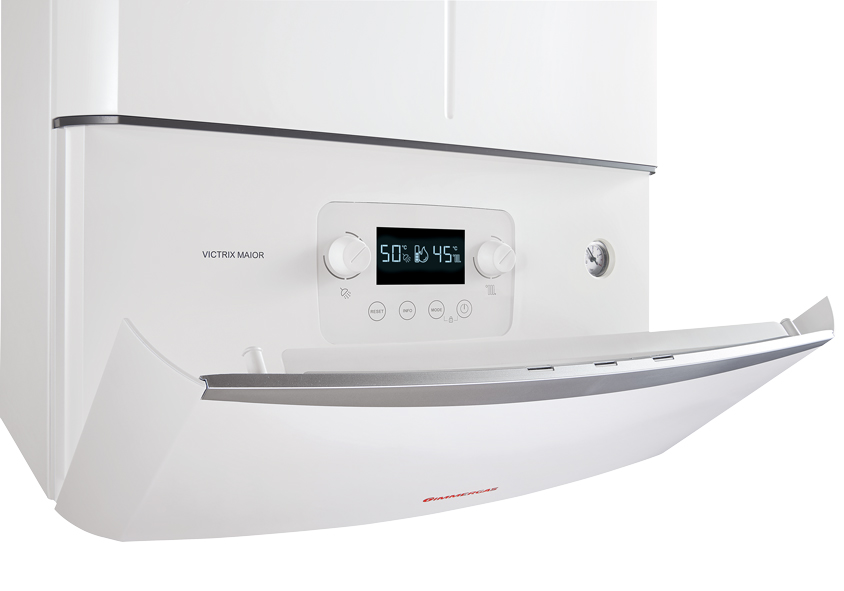

- Advanced user interface ready for connectivity
- Wide display 67x37 mm, with touch keys + knobs for temperature setting
- Hydrogen Ready, with mixtures up to 20 vol.% of hydrogen
CARV2 (weekly chronothermostat and modulating remote control) Cod.3.021395
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
*as standard
CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control) Cod.3.021623
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
CRD PLUS (weekly chronothermostat and modulating remote control) Cod.3.032645
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
*as standard
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%
* default settings
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating energy efficiency 2%* or 3,5%
* default settings
Electrical box cover plate kit for SMARTECH PLUS Cod.3.031013
It allows the covering of the wall hole for electrical boxes type 503.
Expansion kit for SMARTECH PLUS Cod.3.030911
For controlling the temperature in several areas of the house (example living and sleeping areas).
The kit includes: additional SMART thermostat and wi-fi relay (in this case the wi-fi network is required).
External probe Cod.3.014083
Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%
* as standard
GSM telephonic control Cod.3.017182
For buildings not equipped with telephone network. Available for all Immergas models.
Low temperature safety thermostat kit Cod.3.019229
For generators settled up with low temperature
MINI CRD (MINI weekly chronothermostat and modulating remote control) Cod.3.020167
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
Multi-zone electronic board Cod.3.028444
It can manage 4 zones at the same temperature or 1 mixed and 1 direct zone by remote modulating controls (ie. CAR V2).
For VICTRIX ZEUS, VICTRIX MAIOR TT/X, VICTRIX TT ErP/X, VICTRIX EXA/X, VICTRIX TERA VIP, VICTRIX TERA/PLUS, VICTRIX OMNIA, MYTHOS HP, NIKE/AVIO ECO and NIKE STAR 24.
Relay board kit Cod.3.015350
Allows interface between zone valves and CAR V2 or SUPER CAR, to send an alarm signal, to manage external pump etc.
To be installed inside internal unit both in MAGIS COMBO V2 and MAGIS PRO V2
SMARTECH PLUS - SMART remote control Cod.3.030909
Hi-tech smart wireless remote control with Bluetooth technology
The kit includes:
• Chronothermostat (to be placed where you want to adjust the temperature)
• Gateway (to be connected to the boiler or to the internet network at home - power supply 230 V)
• Wall fixing base (with leveling bubble integrated)
• Table stand
• 2 power batteries (as standard)
• Functioning room temperature: 0 - +40 °C
• Protection rating IP 20
Temperature control class: V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%
*default settings.
System delivery probe kit Cod.3.030913
To be positioned after the heating system manifold.
Telephonic control Cod.3.013305
For buildings equipped with telephone network. Available for all Immergas models.
Zone control unit V2 kit Cod.3.030912
Control unit for external circulators/zone valves to manage 3 zones (2 mixed and 1 direct).
Anti-wind vertical terminal kit Ø 80 Cod.3.021721
For condensing boiler < 35 kW.
Clapet kit for for collective flue systems operating under positive pressure Cod.3.031599
for VICTRIX ZEUS SUPERIOR and VICTRIX SUPERIOR
Concentric horizontal outlet Ø 60/100 Cod.3.016836
for condensing boilers < 35 kW.
Concentric vertical complete kit Ø 60/100 (red ocher colour) Cod.3.016833
for condensing boilers < 35 kW.
Flanged stub-pipe + bend + extension pipe Ø 80 for flue discharge Cod.3.016365
For condensing boilers < 35 kW.
Horizontal concentric complete kit Ø 60/100 Short Cod.3.024598
Max lenght 11,9 m.
For condensing boiler < 35 kW.
Horizontal concentric complete kit Ø 60/100 with swivel terminal Cod.3.024267
Max lenght 9,9 m.
For condensing boiler < 35 kW except HP models.
Horizontal concentric swivel outlet Ø 60/100 Cod.3.027408
for condensing boilers < 35 kW.
Terminal vertical outlet kit Ø 80 Cod.3.015256
For condensing boiler < 35 kW.
Twin pipes complete kit Ø 80/80 Cod.3.012002
for VICTRIX PRO 35/55/60/68/80 V2 (color RAL 9010)
All-purpose connection kit for wall-hung combi boilers Cod.3.011667
For wall-hung combi boilers and also for wall-hung with built-in storage tank.
Anti freeze protection kit -15 °C Cod.3.017324
Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.
Anti-scale kit for VICTRIX SUPERIOR, MAIOR TT, TT ErP, TT, EXA ErP, TERA, TERA VIP and MAGIS COMBO V2 Cod.3.017323
For VICTRIX SUPERIOR, MAIOR TT ErP, TT ErP, TT, EXA ErP, TERA, TERA VIP and MAGIS COMBO V2.
Condensate discharge pump kit Cod.3.026374
For wall-hung boilers: compact condensate drain pump kit.
Condensate neutralizer kit Cod.3.019857
Necessary to neutralize the acidity of the condensation. Inclusive of granulate.
DIM 2 ZONES ErP Cod.3.025607
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
DIM 3 ZONES ErP Cod.3.025608
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
DIM BASIC ErP Cod.3.025606
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold and 1 low-consumption pump.
Hydraulic manifold and 1 low-consumption pump.
DIM H-2LT ErP Cod.3.025610
Kit for mixed systems with 2 low temperature zones and 1 high temperature zone.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps, 2 mixing valves and electronic board.
DIM H-LT ErP Cod.3.025609
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
Mixing valve kit Cod.3.027084
For multi-zone electronic board (code 3.028444)
Shut off knobs Cod.3.5324
For wall-hung outdoor boilers.
Solar valve Cod.3.018911
Allows the connection between combi boiler and solar system.
Available for: VICTRIX Superior TOP, VICTRIX, MAIOR EOLO, NIKE Mini 28 kW Special, MINI NIKE/EOLO and NIKE/EOLO Star.
kit containing bottom guard for condensing boilers Cod.3.027341
For wall-hung condensing boilers.
¾" Mixing valve Cod.3.019099
Range 42-60 °C.
The kit includes:
1 thermostatic mixing valve with a 42 °C - 60 °C adjustment range and maximum inlet temperature of 90 °C.
The kit includes:
1 thermostatic mixing valve with a 42 °C - 60 °C adjustment range and maximum inlet temperature of 90 °C.
Available for: VICTRIX Superior TOP, VICTRIX, MAIOR EOLO, NIKE Mini 28 kW Special, MINI NIKE/EOLO, NIKE/EOLO Star, CAESAR 14 and Super CAESAR 17.
