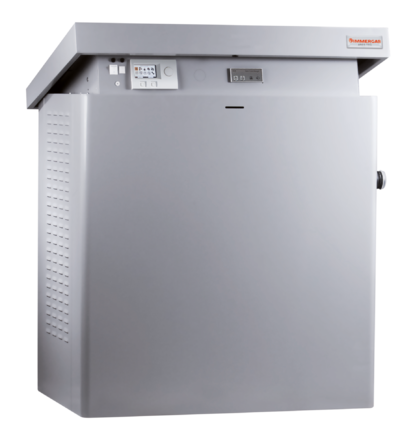

ARES 550 TEC ErP

Floor-standing modular condensing boiler for thermal power stations
The customer service provides
prompt answers within 24 hours.
Wide modulating heat output
Ideal for energy efficiency upgrade

Technical data ARES 550 TEC ErP

Code 3.025688
custom Array
Heat output ref. 80-60°C kW 530,4
Heat output ref. 50-30°C kW 557,8
Efficiency at nominal heat output ref. 80-60 °C 98,2%
Efficiency at nominal heat output ref. 50-30 °C 103,3%
Dimensions (HxWxD) mm 1448 x 1355 x 946
Modulating heat output 4 - 100%

Technical data ARES 550 TEC ErP

Code 3.025688
Product plus BIM READY
Heat output ref. 80-60°C kW 530,4
Heat output ref. 50-30°C kW 557,8
Efficiency at nominal heat output ref. 80-60 °C 98,2%
Efficiency at nominal heat output ref. 50-30 °C 103,3%
Dimensions (HxWxD) mm 1448 x 1355 x 946
Modulating heat output 4 - 100%

Gallery

Floor standing modular condensing boiler.
530,3 kW heat output.
Designed for creating and restructuring any kind of technical room, it offers great flexibility in terms of modulation and power (up to 1:40) with high seasonal efficiency.
Extremely noiseless, it can be installed even if unsheltered and thanks to its extraordinary power/dimension/weight ratio it is ideal when the station space is reduced. ARES Tec ErP is not only a condensing boiler but a multi-burner  mono-block that combines several independent heating units, all managed by one single electronic control logic. It is possible to hydraulically combine up to 8 boilers in cascade configuration and prearrange the system for the remote management and remote control.
Certified for indoor or outdoor installations thanks to the IPX5D electric protection, the appliance is supplied with a standard -5 °C anti-freeze protection kit.
Thanks to low emissions of carbon monoxide (CO) and nitrogen oxide (NOX), ARES 550 Tec ErP belongs to class 5, the most environmentally-friendly class established by the European standards (UNI EN 297 e UNI EN 483).
...

24V Power pack kit   Cod.3.028339

To be inserted in the control panel.
...

CRONO 7 (weekly digital chronothermostat)   Cod.3.021622

ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%

* default settings

...

CRONO 7 WIRELESS (wireless weekly digital chronothermostat)   Cod.3.021624

Wireless ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating energy efficiency 2%* or 3,5%

* default settings

...

Cascade regulator kit for ARES PRO - TEC ErP   Cod.3.028340

It can manage up to 8 boilers in cascade.
Composed by:
• HSCP viewer/programmer
• BCM board
• 24V power supply
• external probe
• puffer probe
...

SHC multifunction board kit   Cod.3.028338

It allows to integrate 3 more user circuits for each kits up to 4 kit (max 12 supplementary circuits).
N.B. 1 multifunction kit (not connected) is supplied as standard with the boiler.
...

Solar collector temperature probe kit for UB Inox Solar V2, HERCULES SOLAR 26 ErP, ARES TEC ErP, ARES PRO and MAGIS HERCULES ErP   Cod.1.028812

As per standard with these products.
...

Supporting kit for side flue discharge ARES Tec   Cod.3.023675

All models.
...

Condensate neutralizer until 1500 kW   Cod.3.023662

necessary to neutralize the acidity of the condensation. Inclusive of
granulate.

...

Granulate kit for condensate neutralizer (25 kg)   Cod.3.023663

Complete recharge for condensate neutralizer kit until 1500 kW

...

Hydraulic separator from ARES Tec 440 kW to ARES Tec 900 kW   Cod.3.023660

To be mainly used when the pump is independently dimensioned by the designer.

...

Outdoor casing for safety kit and hydraulic separator from ARES Tec 440 kW to ARES Tec 900 kW   Cod.3.023671

In case of outdoor installation of the safety kits and of the hydraulic separator with pump, appropriate casing kits are available to protect from the athmospheric agents.

...

Outdoor casing for safety kit and plate heat exchanger from ARES Tec 440 kW to 900 kW   Cod.3.023673

In case of outdoor installation of the safety kit with pump and plate heat exchanger, casing kits are available to assure protection from athmospheric agents.

...

Safety kit complete with pump and hydraulic separator from ARES Tec 440 kW to ARES Tec 770 kW   Cod.3.023648

The following kit includes a "Y" filter, a modulating pump class A, an hydraulic separator and following safety devices: pressure gauge with pipe damper and manometer cock, thermometer, inspection openings, stube pipe G1 ¼'' for inserting safety valves, safety thermostat, pressure switch for minimum pressure with manual reset, additional stube pipe G1, safety pressure switch and differential flow switch.
The kit does not include the tested expansion tank, safety valve (2 for 660/770/900 kW versions), drain valve and manometer, since these need to be sized according to the characteristics of the system.
...

Safety kit complete with pump and plate heat exchanger for ARES Tec 440/550 kW   Cod.3.023652

Ideal for system solutions where the primary circuit of the boiler needs to be completely separate from the one of the plant, like for example in presence of old-fashioned plants with high risks of dirt inside the circuit, disjunctions between open and closed vessel circuits or to allow the use of anti-freeze liquid in smaller quantities in case of installation of the boiler outdoors.
The kit includes a 316 L stainless steel plate heat exchanger, a modulating pump class A, a 8 litres expansion vessel (150/350 kW versions) and 24 litres (440/900 kW versions), an automatic air vent, delivery/return pipe, a drain valve, flanges/adapters, connectors, adjustable support components and the following safety devices: 1 safety valve 5 bar (2 valves for models 660/770/900), 3-way drain valve ½", manometer and dumper tube for manometer, thermometer with trap, minimum pressure switch with manual reset, safety pressure switch, inspection thermostat, inspection opening, coupling M/F ½'', paddle flow switch and stube pipes adapters.
...

Safety kit with filter from ARES Tec 440 kW to ARES Tec 770 kW   Cod.3.023657

To be mainly used when the pump is dimensioned by designer. The safety kit includes: pressure gauge with pipe damper and, manometer cock, thermometer, inspection openings, stub pipes G1 ¼'' for inserting safety valves, safety thermostat, manual reset pressure switch for minimum pressure, additional stub pipe G1, safety pressure switch and differential flow switch.
The kit does not include the tested expansion tank, safety valve, drain valve and manometer, since these need to be sized according to the characteristics of the system.
Floor standing modular condensing boiler.
530,3 kW heat output.
Designed for creating and restructuring any kind of technical room, it offers great flexibility in terms of modulation and power (up to 1:40) with high seasonal efficiency.
Extremely noiseless, it can be installed even if unsheltered and thanks to its extraordinary power/dimension/weight ratio it is ideal when the station space is reduced. ARES Tec ErP is not only a condensing boiler but a multi-burner  mono-block that combines several independent heating units, all managed by one single electronic control logic. It is possible to hydraulically combine up to 8 boilers in cascade configuration and prearrange the system for the remote management and remote control.
Certified for indoor or outdoor installations thanks to the IPX5D electric protection, the appliance is supplied with a standard -5 °C anti-freeze protection kit.
Thanks to low emissions of carbon monoxide (CO) and nitrogen oxide (NOX), ARES 550 Tec ErP belongs to class 5, the most environmentally-friendly class established by the European standards (UNI EN 297 e UNI EN 483).
...

24V Power pack kit   Cod.3.028339

To be inserted in the control panel.
...

CRONO 7 (weekly digital chronothermostat)   Cod.3.021622

ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%

* default settings

...

CRONO 7 WIRELESS (wireless weekly digital chronothermostat)   Cod.3.021624

Wireless ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating energy efficiency 2%* or 3,5%

* default settings

...

Cascade regulator kit for ARES PRO - TEC ErP   Cod.3.028340

It can manage up to 8 boilers in cascade.
Composed by:
• HSCP viewer/programmer
• BCM board
• 24V power supply
• external probe
• puffer probe
...

SHC multifunction board kit   Cod.3.028338

It allows to integrate 3 more user circuits for each kits up to 4 kit (max 12 supplementary circuits).
N.B. 1 multifunction kit (not connected) is supplied as standard with the boiler.
...

Solar collector temperature probe kit for UB Inox Solar V2, HERCULES SOLAR 26 ErP, ARES TEC ErP, ARES PRO and MAGIS HERCULES ErP   Cod.1.028812

As per standard with these products.
...

Supporting kit for side flue discharge ARES Tec   Cod.3.023675

All models.
...

Condensate neutralizer until 1500 kW   Cod.3.023662

necessary to neutralize the acidity of the condensation. Inclusive of
granulate.

...

Granulate kit for condensate neutralizer (25 kg)   Cod.3.023663

Complete recharge for condensate neutralizer kit until 1500 kW

...

Hydraulic separator from ARES Tec 440 kW to ARES Tec 900 kW   Cod.3.023660

To be mainly used when the pump is independently dimensioned by the designer.

...

Outdoor casing for safety kit and hydraulic separator from ARES Tec 440 kW to ARES Tec 900 kW   Cod.3.023671

In case of outdoor installation of the safety kits and of the hydraulic separator with pump, appropriate casing kits are available to protect from the athmospheric agents.

...

Outdoor casing for safety kit and plate heat exchanger from ARES Tec 440 kW to 900 kW   Cod.3.023673

In case of outdoor installation of the safety kit with pump and plate heat exchanger, casing kits are available to assure protection from athmospheric agents.

...

Safety kit complete with pump and hydraulic separator from ARES Tec 440 kW to ARES Tec 770 kW   Cod.3.023648

The following kit includes a "Y" filter, a modulating pump class A, an hydraulic separator and following safety devices: pressure gauge with pipe damper and manometer cock, thermometer, inspection openings, stube pipe G1 ¼'' for inserting safety valves, safety thermostat, pressure switch for minimum pressure with manual reset, additional stube pipe G1, safety pressure switch and differential flow switch.
The kit does not include the tested expansion tank, safety valve (2 for 660/770/900 kW versions), drain valve and manometer, since these need to be sized according to the characteristics of the system.
...

Safety kit complete with pump and plate heat exchanger for ARES Tec 440/550 kW   Cod.3.023652

Ideal for system solutions where the primary circuit of the boiler needs to be completely separate from the one of the plant, like for example in presence of old-fashioned plants with high risks of dirt inside the circuit, disjunctions between open and closed vessel circuits or to allow the use of anti-freeze liquid in smaller quantities in case of installation of the boiler outdoors.
The kit includes a 316 L stainless steel plate heat exchanger, a modulating pump class A, a 8 litres expansion vessel (150/350 kW versions) and 24 litres (440/900 kW versions), an automatic air vent, delivery/return pipe, a drain valve, flanges/adapters, connectors, adjustable support components and the following safety devices: 1 safety valve 5 bar (2 valves for models 660/770/900), 3-way drain valve ½", manometer and dumper tube for manometer, thermometer with trap, minimum pressure switch with manual reset, safety pressure switch, inspection thermostat, inspection opening, coupling M/F ½'', paddle flow switch and stube pipes adapters.
...

Safety kit with filter from ARES Tec 440 kW to ARES Tec 770 kW   Cod.3.023657

To be mainly used when the pump is dimensioned by designer. The safety kit includes: pressure gauge with pipe damper and, manometer cock, thermometer, inspection openings, stub pipes G1 ¼'' for inserting safety valves, safety thermostat, manual reset pressure switch for minimum pressure, additional stub pipe G1, safety pressure switch and differential flow switch.
The kit does not include the tested expansion tank, safety valve, drain valve and manometer, since these need to be sized according to the characteristics of the system.
