ARES PRO 500

Floor-standing modular condensing boiler for thermal power stations
The customer service provides
prompt answers within 24 hours.
Compact dimensions
Ideal for replacement
Possible installation in cascade

Technical data ARES PRO 500

Code 3.028314
custom Array
Heat output ref. 80-60°C kW 441,95
Heat output ref. 50-30°C kW 472,20
Efficiency at nominal heat output ref. 80-60 °C 98,21%
Efficiency at nominal heat output ref. 50-30 °C 104,9%
Dimensions (HxWxD) mm 2130 x 996 x 1276
Modulating heat output 26 - 100%
Empty appliance weight (cover) kg 610 (106)

Technical data ARES PRO 500

Code 3.028314
Product plus BIM READY
Heat output ref. 80-60°C kW 441,95
Heat output ref. 50-30°C kW 472,20
Efficiency at nominal heat output ref. 80-60 °C 98,21%
Efficiency at nominal heat output ref. 50-30 °C 104,9%
Dimensions (HxWxD) mm 2130 x 996 x 1276
Modulating heat output 26 - 100%
Empty appliance weight (cover) kg 610 (106)

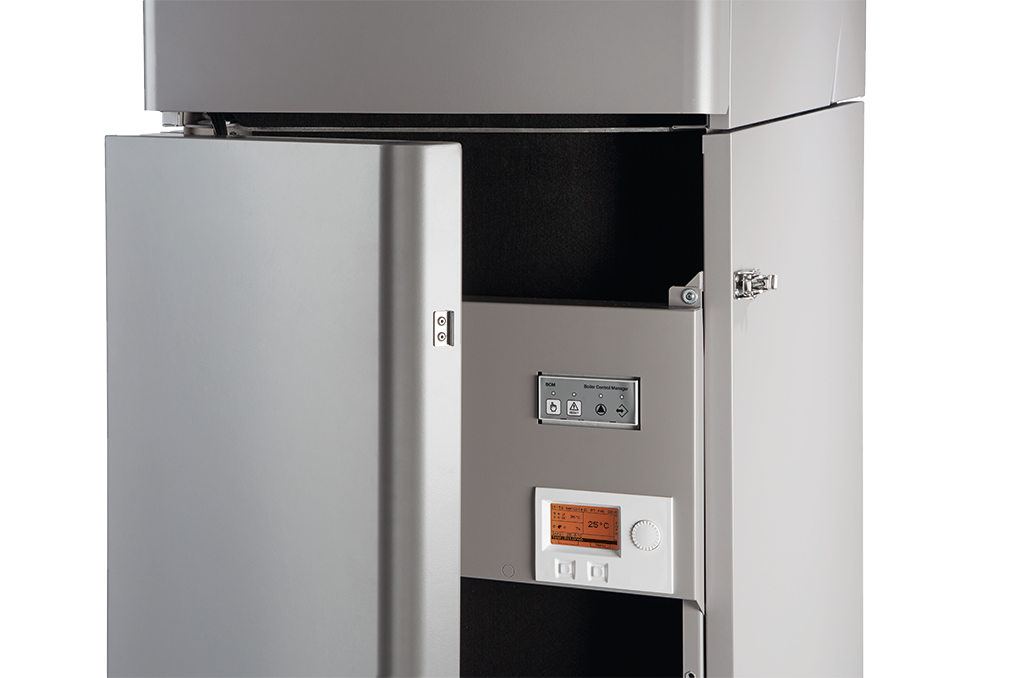

Gallery

Floor standing condensing boiler with high content of water.
441,95 kW heat output.
Reduced clogging risk, low load losses and maximum adaptability to existing systems are the characteristics that make ARES PRO ideal when replacing obsolete generators as well as in new installations.
Its large-sized primary storage tank and modulation ratio up to 1:4 of maximum output, reduce the number of burner switch-on/switch-off cycles.
It can be used alone or in cascade installations with up to 8 units, which guarantee higher overall efficiency and lower running costs. ARES PRO makes the installation of a hydraulic compensator not necessary, which means simpler systems and increased efficiency.
Certified for indoor installations.
Thanks to low emissions of carbon monoxide (CO) and nitrogen oxide (NOX), ARES PRO 500 belongs to class 6, the most environmentally-friendly class established by the European standards (UNI EN 297 e UNI EN 483).

...

24V Power pack kit   Cod.3.028339

To be inserted in the control panel.
...

CRONO 7 (weekly digital chronothermostat)   Cod.3.021622

ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%

* default settings

...

CRONO 7 WIRELESS (wireless weekly digital chronothermostat)   Cod.3.021624

Wireless ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating energy efficiency 2%* or 3,5%

* default settings

...

Cascade regulator kit for ARES PRO - TEC ErP   Cod.3.028340

It can manage up to 8 boilers in cascade.
Composed by:
• HSCP viewer/programmer
• BCM board
• 24V power supply
• external probe
• puffer probe
...

SHC multifunction board kit   Cod.3.028338

It allows to integrate 3 more user circuits for each kits up to 4 kit (max 12 supplementary circuits).
N.B. 1 multifunction kit (not connected) is supplied as standard with the boiler.
...

Solar collector temperature probe kit for UB Inox Solar V2, HERCULES SOLAR 26 ErP, ARES TEC ErP, ARES PRO and MAGIS HERCULES ErP   Cod.1.028812

As per standard with these products.
...

Condensate neutralizer until 1500 kW   Cod.3.023662

necessary to neutralize the acidity of the condensation. Inclusive of
granulate.

...

Granulate kit for condensate neutralizer (25 kg)   Cod.3.023663

Complete recharge for condensate neutralizer kit until 1500 kW

...

Safety kit with filter for ARES PRO 300÷500   Cod.3.028337

The kit includes filter and safety devices except safety valve, manometer, expansion vessel and fuel relief valve.

Floor standing condensing boiler with high content of water.
441,95 kW heat output.
Reduced clogging risk, low load losses and maximum adaptability to existing systems are the characteristics that make ARES PRO ideal when replacing obsolete generators as well as in new installations.
Its large-sized primary storage tank and modulation ratio up to 1:4 of maximum output, reduce the number of burner switch-on/switch-off cycles.
It can be used alone or in cascade installations with up to 8 units, which guarantee higher overall efficiency and lower running costs. ARES PRO makes the installation of a hydraulic compensator not necessary, which means simpler systems and increased efficiency.
Certified for indoor installations.
Thanks to low emissions of carbon monoxide (CO) and nitrogen oxide (NOX), ARES PRO 500 belongs to class 6, the most environmentally-friendly class established by the European standards (UNI EN 297 e UNI EN 483).

...

24V Power pack kit   Cod.3.028339

To be inserted in the control panel.
...

CRONO 7 (weekly digital chronothermostat)   Cod.3.021622

ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%

* default settings

...

CRONO 7 WIRELESS (wireless weekly digital chronothermostat)   Cod.3.021624

Wireless ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating energy efficiency 2%* or 3,5%

* default settings

...

Cascade regulator kit for ARES PRO - TEC ErP   Cod.3.028340

It can manage up to 8 boilers in cascade.
Composed by:
• HSCP viewer/programmer
• BCM board
• 24V power supply
• external probe
• puffer probe
...

SHC multifunction board kit   Cod.3.028338

It allows to integrate 3 more user circuits for each kits up to 4 kit (max 12 supplementary circuits).
N.B. 1 multifunction kit (not connected) is supplied as standard with the boiler.
...

Solar collector temperature probe kit for UB Inox Solar V2, HERCULES SOLAR 26 ErP, ARES TEC ErP, ARES PRO and MAGIS HERCULES ErP   Cod.1.028812

As per standard with these products.
...

Condensate neutralizer until 1500 kW   Cod.3.023662

necessary to neutralize the acidity of the condensation. Inclusive of
granulate.

...

Granulate kit for condensate neutralizer (25 kg)   Cod.3.023663

Complete recharge for condensate neutralizer kit until 1500 kW

...

Safety kit with filter for ARES PRO 300÷500   Cod.3.028337

The kit includes filter and safety devices except safety valve, manometer, expansion vessel and fuel relief valve.
