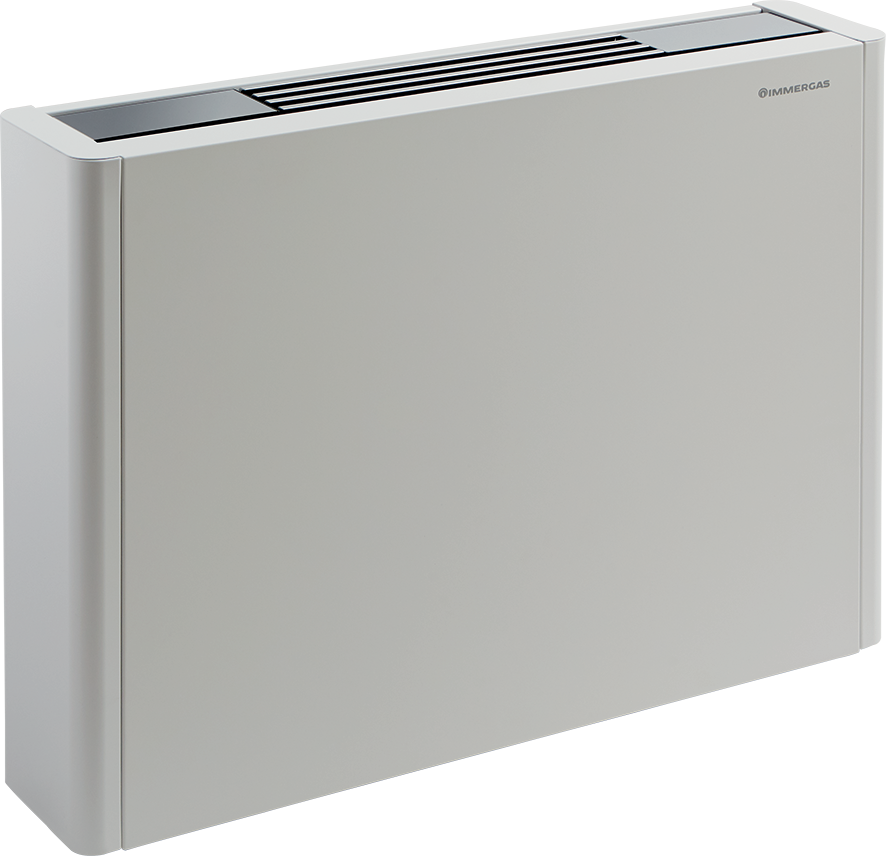

HYDRO FS 600

Floor standing hydronic fancoil
The customer service provides
prompt answers within 24 hours.
Ideal for new buildings
New modern design
Heating and cooling

Technical data HYDRO FS 600

Code 3.028502
Heating output max speed 45/40 °C kW 3,11
Cooling output max speed 7/12 °C kW 2,89
Dimensions (HxWxD) mm 579 x 1135 x 150
Flow rate 7/12 °C l/h 497
Weight (kg) 23,0

Technical data HYDRO FS 600

Code 3.028502
Heating output max speed 45/40 °C kW 3,11
Cooling output max speed 7/12 °C kW 2,89
Dimensions (HxWxD) mm 579 x 1135 x 150
Flow rate 7/12 °C l/h 497
Weight (kg) 23,0

Gallery

The range of fancoils for floor level installation particularly suitable residential and commercial buildings.

  • Elegant aesthetics with white painted casing
  • Reduced depth for integration into any living context
  • Flow and return connections on the left side (with possibility of reversing to the right)
  • Bottom air intake (with a minimum level of respect -80 mm from the floor)
  • Very low sound impact thanks to the tangential fan and the DC INVERTER motor
  • Installation template and wall brackets as standard
  • Flat adapters as standard and 3/4" hydraulic connections
...

4 speeds thermoregulation kit   Cod.3.028510

includes control panel and probe NTC air.
For installation on the machine, with adjustment
speed on 4 steps.

...

Electronic control board with 0-10 V connection   Cod.3.028512

It allows to manage the fan motor, with modulating speed.

...

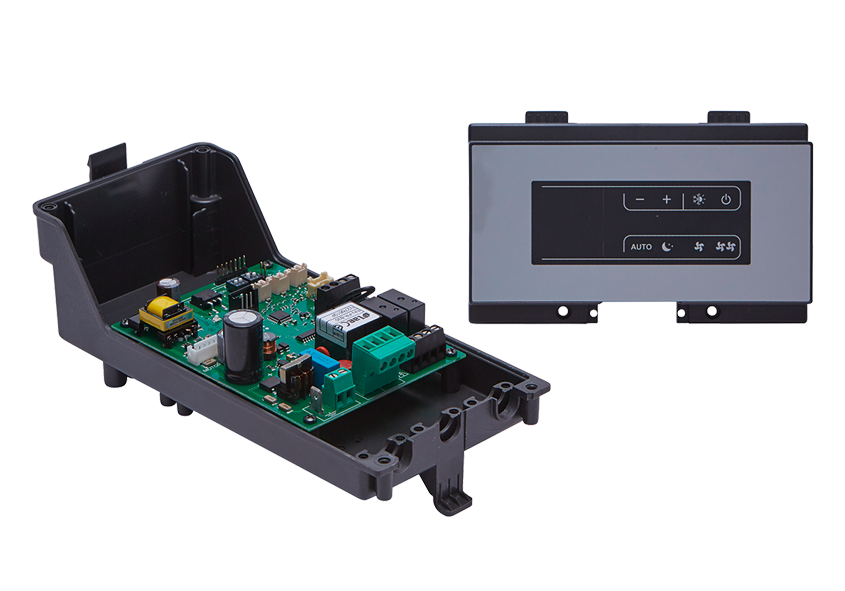

Modulating thermoregulation kit   Cod.3.028509

includes control panel with display, electronic board and NTC air probe.
For installation on the machine, allows the room
temperature adjustment using 4 types of programs:
Auto, Silent, Night and Max.
...

On board electronic control with PID full modulating fan   Cod.3.030876

To be provided in combination with the smart touch wall controller with temperature probe code 3.030877 and 3.030878; it is installed inside the fan coil and allows the engine to be operated with continuous modulating operation.

...

Smart touch wall controller with temperature probe (black casing)   Cod.3.030877

The kit includes control panel with PI logic and room probe for control up to 30 units.
To combine with the on board electronic control with PID full modulating fan code 3.030876.
Adjustment of temperature in hot and cold at modulating speed of the engine.
...

Smart touch wall controller with temperature probe (white casing)   Cod.3.030878

The kit includes control panel with PI logic and room probe for control up to 30 units.
To combine with the on board electronic control with PID full modulating fan code 3.030876.
Adjustment of temperature in hot and cold at modulating speed of the engine.


...

Universal control board for commercial thermoregulation   Cod.3.028511

For installation on the machine, allows to manage the fan motor, with fixed speeds.

...

2-way group valve kit   Cod.3.028507

Composed of automatic valve with thermoelectric head and holder to balance the plant load losses.


...

3-way group valve kit   Cod.3.028508

Composed of three-way diverter valve with thermoelectric head, by-pass tube and holder to balance plant load losses.


...

Connection cable to shift water connections from left to right   Cod.3.029834

to be used in case of reversibility of the hydraulic pipe connections on the right side, rotating the battery 180°




...

Sheet metal feet kit   Cod.3.028506

Ideal to cover pipes from the floor.




The range of fancoils for floor level installation particularly suitable residential and commercial buildings.

  • Elegant aesthetics with white painted casing
  • Reduced depth for integration into any living context
  • Flow and return connections on the left side (with possibility of reversing to the right)
  • Bottom air intake (with a minimum level of respect -80 mm from the floor)
  • Very low sound impact thanks to the tangential fan and the DC INVERTER motor
  • Installation template and wall brackets as standard
  • Flat adapters as standard and 3/4" hydraulic connections
...

4 speeds thermoregulation kit   Cod.3.028510

includes control panel and probe NTC air.
For installation on the machine, with adjustment
speed on 4 steps.

...

Electronic control board with 0-10 V connection   Cod.3.028512

It allows to manage the fan motor, with modulating speed.

...

Modulating thermoregulation kit   Cod.3.028509

includes control panel with display, electronic board and NTC air probe.
For installation on the machine, allows the room
temperature adjustment using 4 types of programs:
Auto, Silent, Night and Max.
...

On board electronic control with PID full modulating fan   Cod.3.030876

To be provided in combination with the smart touch wall controller with temperature probe code 3.030877 and 3.030878; it is installed inside the fan coil and allows the engine to be operated with continuous modulating operation.

...

Smart touch wall controller with temperature probe (black casing)   Cod.3.030877

The kit includes control panel with PI logic and room probe for control up to 30 units.
To combine with the on board electronic control with PID full modulating fan code 3.030876.
Adjustment of temperature in hot and cold at modulating speed of the engine.
...

Smart touch wall controller with temperature probe (white casing)   Cod.3.030878

The kit includes control panel with PI logic and room probe for control up to 30 units.
To combine with the on board electronic control with PID full modulating fan code 3.030876.
Adjustment of temperature in hot and cold at modulating speed of the engine.


...

Universal control board for commercial thermoregulation   Cod.3.028511

For installation on the machine, allows to manage the fan motor, with fixed speeds.

...

2-way group valve kit   Cod.3.028507

Composed of automatic valve with thermoelectric head and holder to balance the plant load losses.


...

3-way group valve kit   Cod.3.028508

Composed of three-way diverter valve with thermoelectric head, by-pass tube and holder to balance plant load losses.


...

Connection cable to shift water connections from left to right   Cod.3.029834

to be used in case of reversibility of the hydraulic pipe connections on the right side, rotating the battery 180°




...

Sheet metal feet kit   Cod.3.028506

Ideal to cover pipes from the floor.
