MAGIS PRO 9 V2

Technical data MAGIS PRO 9 V2
Code	3.030608
C.H. Energy class at 55 °C	A+
C.H. Energy class at 35 °C	A++
Heating output kW	9,00
Cooling output kW	8,70
Hydronic Unit (HxWxD) mm	760 x 440 x 250
Condensing Unit (HxWxD) mm	1110 x 940 x 384
Refrigerant gas	R32
COP	4,81
EER	4,12
External unit empty appliance (kg)	74,0
Hydronic unit empty appliance (kg)	33,5

Product presentation

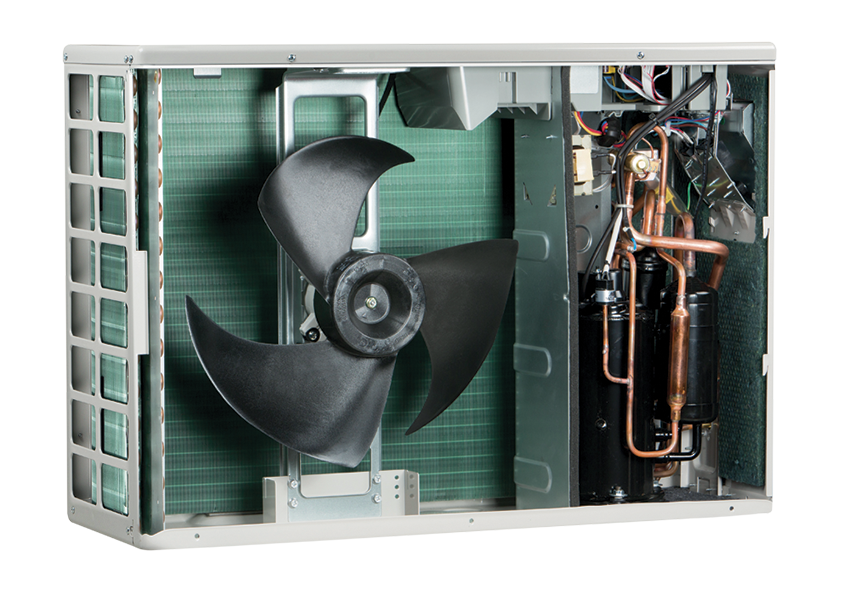

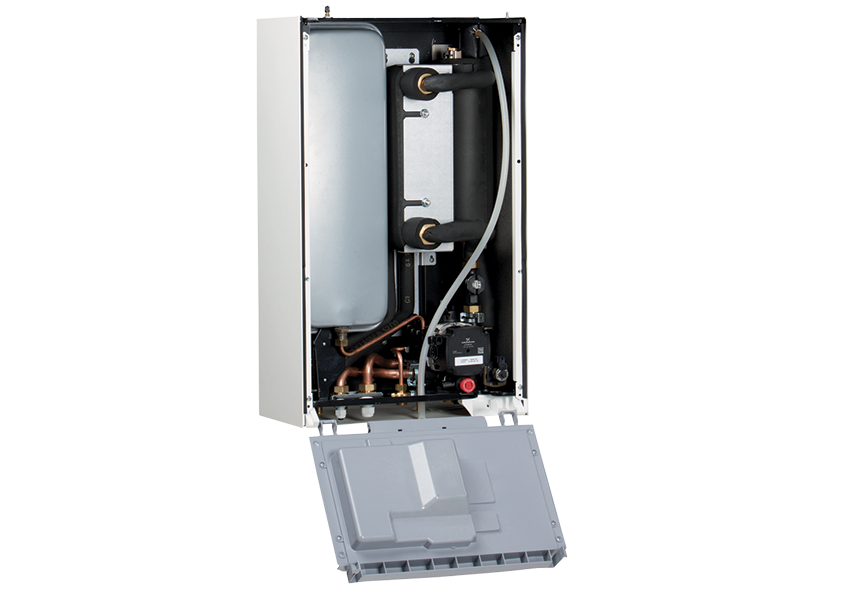

Spilt type reversible air-to-water inverter driven heat pump system composed by an outdoor unit and an indoor hydronic unit

MAGIS PRO V2 heat pump system range are air-to-water appliances, designed to exploit outdoor air as renewable energy source. Such a kind of appliances are the ideal solution for central heating (maximum delivery temperature equal to 65 °C), cooling and domestic hot water production, thanks to the possible coupling with a separate storage tank unit. The “PRO" designation underlines the particular degreee of competence of the professional people involved in the design and installation process, to whom such a kind of technical solution is addressed; for instance, the completion of the refrigerant circuit and the connection between outdoor unit and the hydronic one, implies the posses for the installer of a spefic qualification (the so called F-Gas licence).

Pre-loaded refrigerant fluid R32
High COP and EER values
Maximum delivery temperature 65 °C
Pre-arranged to manage up to 3 zones system
Inverter driven compressor allows wide power-modulation range and low current absortion, succeeding in high level performances for more comfortable indoor climatic conditions
Domestic-purpose-suit systems, ideal in new, high energy class buildings, even when located in extremely cold areas, with very low outdoor-winter-temperatures

MAGIS PRO V2 can be installed in stand alone configuration, or combined with a boiler and other renewable energy sources in integrated or hybrid, compact systems, working in central heating, cooling and/or DHW production.
