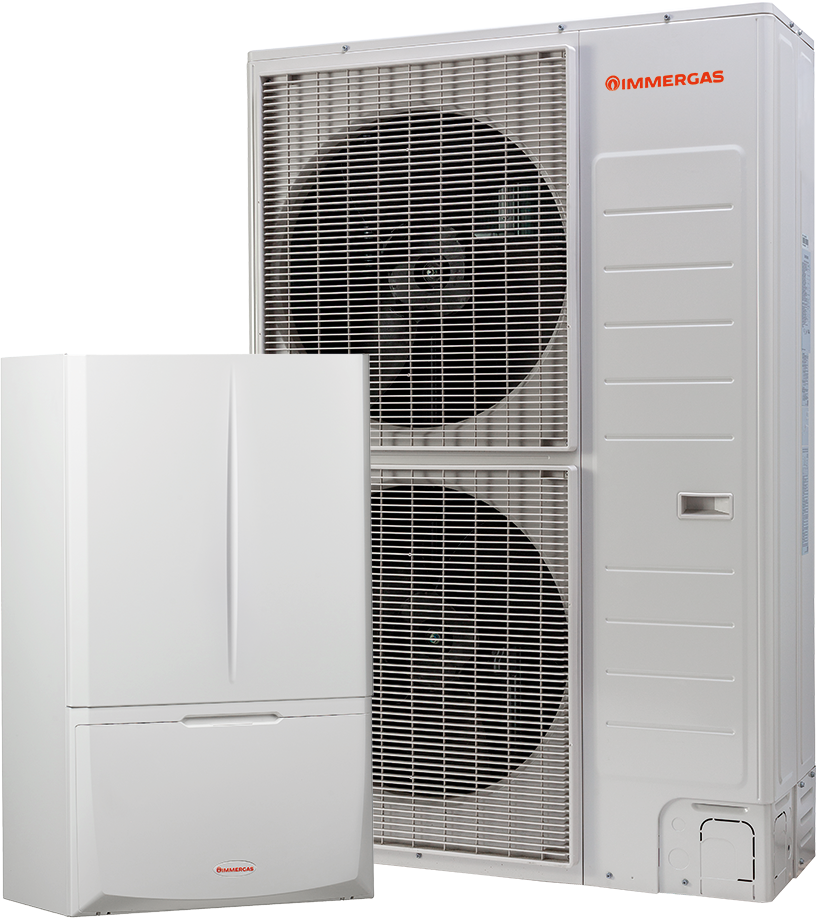

MAGIS PRO 12 V2 T

Spilt type three-phase reversible air-to-water inverter driven heat pump system composed by an external unit and a internal hydronic unit
The customer service provides
prompt answers within 24 hours.
Noiseless
Easy installation
Heating and cooling

Technical data MAGIS PRO 12 V2 T

Code 3.030666
C.H. Energy class at 55 °C A+
C.H. Energy class at 35 °C A+++
Heating output kW 12,00
Cooling output kW 12,00
Internal Unit (HxWxD) mm 780 x 440 x 340
External Unit (HxWxD) mm 1420 x 940 x 384
Refrigerant gas R410A
COP 4,63
EER 3,87
External unit empty appliance weight (kg) 100,0
Hydronic unit empty appliance weight (kg) 38,5

Technical data MAGIS PRO 12 V2 T

Code 3.030666
C.H. Energy class at 55 °C A+
C.H. Energy class at 35 °C A+++
Heating output kW 12,00
Cooling output kW 12,00
Internal Unit (HxWxD) mm 780 x 440 x 340
External Unit (HxWxD) mm 1420 x 940 x 384
Refrigerant gas R410A
COP 4,63
EER 3,87
External unit empty appliance weight (kg) 100,0
Hydronic unit empty appliance weight (kg) 38,5

Gallery

Spilt type reversible air-to-water inverter driven heat pump system composed by an external unit and a internal unit

Heating output kW : 12,00; Cooling output kW  : 12,00

New MAGIS PRO V2 heat pump system range  are air-to-water appliances, designed to exploit outdoor air as renewable energy source.  Such a kind of appliances are the ideal solution for central heating (maximum delivery temperature equal  to 55 °C), cooling and domestic hot water production, thanks to the possible coupling  with a separate storage tank unit. The “PRO" designation underlines the particular degreee of competence of the professional people involved in the design and installation process, to whom such a kind of technical solution is addressed; for instance, the completion of the refrigerant circuit and the connection between outdoor unit and the hydronic one, implies the posses for the installer of a spefic qualification (the so called F-Gas licence). Inverter driven compressor allows wide power-modulation range and low current absortion, succeeding in high level performances for more comfortable indoor climatic conditions.

Main features:

• Pre-loaded refrigerant fluid R410A

• High COP and EER values

• Maximum delivery temperature 55 °C

• Pre-arranged to manage up to 3 zones system



MAGIS PRO V2 are domestic-purpose-suit systems, and they are the ideal solution in new, high energy class buildings, even when located in extremely cold areas, with very low outdoor-winter-temperatures.

The very compact external unit (smaller than the most of hydronic heat pump models), installable both on balcony or fully outdoor, allows to MAGIS PRO SYSTEM enhanced positional flexibility together with a minimal aestethic effect on the overall style.

MAGIS PRO V2 can be installed in stand alone configuration, or combined with a boiler and other renewable energy sources in integrated or hybrid, compact systems, working in central heating, cooling and/or DHW production

...

2 relays board kit   Cod.3.026302

To be installed for the deumidifiers management without in absence of system manager kit.

Dedicated to MAGIS PRO V2 and MAGIS COMBO V2





...

CRONO 7 (weekly digital chronothermostat)   Cod.3.021622

ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%

* default settings

...

CRONO 7 WIRELESS (wireless weekly digital chronothermostat)   Cod.3.021624

ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating energy efficiency 2%* or 3,5%

* default settings

...

DOMINUS interface kit   Cod.3.026273

To control heat pumps, system or gas boilers and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the heat pump’s circuit board from any location.
...

External probe   Cod.3.015266

To be used when external probe as standard in outdoor unit is not correctly exposed.


Temperature control class II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4 or 3,5%

* default settings

...

Low temperature safety thermostat kit   Cod.3.019229

For generators settled up with low temperature

...

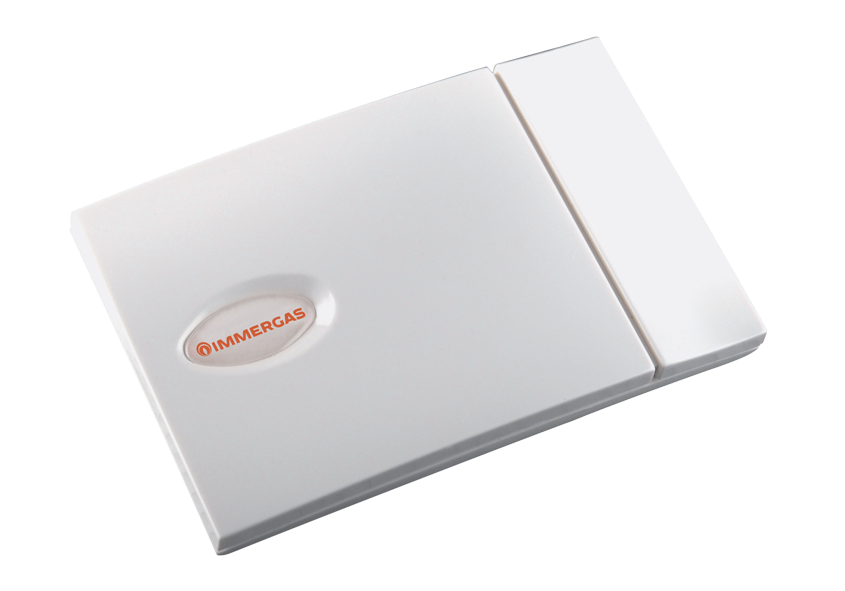

Mod-bus temperature and humidity sensor   Cod.3.030992

To be used with radiant systems that also work in cooling mode

Temperature control class V or VI*
Contribution to seasonal space heating energy efficiency
3% or 4%*

* default settings

...

Relay board kit   Cod.3.015350

Allows interface between zone valves and CAR V2 or SUPER CAR, to send an alarm signal, to manage external pump etc.

To be installed inside internal unit both in MAGIS COMBO V2 and MAGIS PRO V2
...

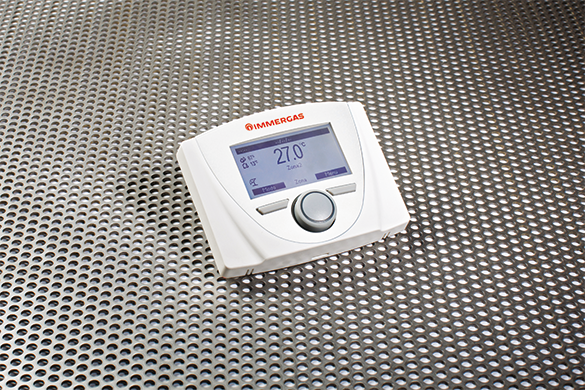

Remote Control Panel   Cod.3.030863

Modulating chronotermostat, remote control with temperature/humidity sensor

Temperature control class V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%

* default settings
...

Room hygrostat   Cod.3.023302

To be used with radiant systems that also work in cooling mode.

...

Storage tank NTC probe   Cod.3.019375

Allows to check the DHW temperature of a Storage Tank Unit or puffer
Provided as per standard on all Storage Tank Units in the catalogue.

...

System controller   Cod.3.021522

Class of device VI* or VIII
Contribution to the environmental heating seasonal energy efficiency 4%* or 5%

* as standard
...

System delivery probe kit   Cod.3.030913

To be positioned after the heating system manifold.
...

Zone control unit V2 kit   Cod.3.030912

Control unit for external circulators/zone valves to manage 3 zones (2 mixed and 1 direct).

...

2 ZONES KIT 1 mixed zone and 1 direct zone   Cod.3.031695

For MAGIS PRO 12-14-16 V2 and MAGIS COMBO/PLUS 12-14-16 V2

...

3 kW integration electric resistance kit for MAGIS PRO V2   Cod.3.030991

For heat pump only plants with MAGIS PRO V2, 3 kW (to be installed inside of the hydronic unit).
Electric power supply 230V-50Hz single phase + earthing

...

3-way valve kit   Cod.3.020632

...

Additional 2 kW electric resistance kit for OMNISTOR, INOXSTOR V2 and UB 550/750   Cod.3.020861

Power supply 230 or 400 Vac.

...

Additional 5 kW electric resistance kit for UB 1000/1500 and UB 750   Cod.3.020862

Power supply 230 or 400 Vac.

...

Anti freeze protection kit -15 °C   Cod.3.017324

Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.

...

Connection kit for R410A circuit   Cod.3.026089

To connect refrigerant gas circuit where internal unit of MAGIS COMBO/PLUS 12-14-16 V2 e MAGIS PRO 12-14-16 V2 is installed to the wall
...

Dehumidifier back frame kit   Cod.3.022146

...

Dehumidifier front grille kit   Cod.3.022147

...

Dehumidifier kit   Cod.3.021529

Only for recessed installation with codes 3.022146 and 3.022147



...

Double electronic anode kit   Cod.3.025003

Double electronic anode kit for OMNISTOR, INOXSTOR V2, MAGIS HERCULES PRO and MAGIS HERCULES PRO MINI


...

External cover kit with acoustical insulation for ZENITAIR-MONO   Cod.3.030636

Anti-insect net and anti-wind in pre-painted steel, alternative to the one available with ZENITAIR-MONO.




...

HYDRO 3 V2   Cod.3.033625

Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
...

HYDRO IN 200   Cod.3.029841

Wall and ceiling built-in hydronic fancoil



...

HYDRO 4 V2   Cod.3.033626

Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
...

HYDRO FS 200   Cod.3.028500

Floor standing hydronic fancoil



...

HYDRO FS 400   Cod.3.028501

Floor standing hydronic fancoil

...

HYDRO FS 600   Cod.3.028502

Floor standing hydronic fancoil


...

HYDRO FS 800   Cod.3.028503

Floor standing hydronic fancoil


...

HYDRO FS 1000   Cod.3.028505

Floor standing hydronic fancoil

...

HYDRO IN 400   Cod.3.029842

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 600   Cod.3.029843

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 800   Cod.3.029844

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 1000   Cod.3.029845

Wall and ceiling built-in hydronic fancoil



...

OMNISTOR 300   Cod.3.027910

Ideal for connection to heat pumps.
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
...

OMNISTOR 500   Cod.3.027911

Ideal for connection to heat pumps.
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
...

Vertical inertial storage tank 75 litre   Cod.3.027288

Wall-hung (with bracket option kit) or floor-standing installation.
...

Wall mounting brackets for external unit   Cod.3.034758

For outdoor unit of MAGIS COMBO 4-6-9 V2/ 4-6-9 PLUS V2, MAGIS COMBO 12-14-16 V2/ 12-14-16 PLUS V2, TRIO PACK 4-6-9, TRIO HYDRO 5-8-12, MAGIS HERCULES PRO 4-6-9-12-14-16, MAGIS PRO 4-6-9 V2 /12-14-16 V2, MAGIS HERCULES PRO MINI 6-9/6-9 EU.

...

ZENITAIR MONO   Cod.3.030601

Decentralised mechanical ventilation unit, easy to install, with alternate flow and heat recovery core.
Multifunction remote controller, with LCD display to visualise the status of the unit supplied as standard.
