MAGIS COMBO 14 PLUS V2 T
prompt answers within 24 hours.
Technical data MAGIS COMBO 14 PLUS V2 T |
|
---|---|
Code | 3.030829 |
C.H. Energy class at 55 °C | A+ |
C.H. Energy class at 35 °C | A+++ |
Heating output kW | 14,00 |
Cooling output kW | 14,00 |
Indoor Unit (HxWxD) mm | 811 x 440 x 474 |
Outdoor Unit (HxWxD) mm | 1420 x 940 x 384 |
Refrigerant gas | R410A |
COP | 4,44 |
EER | 3,68 |
Outdoor unit weight (kg) | 100,0 |
Indoor unit weight (kg) | 60,0 |
Technical data MAGIS COMBO 14 PLUS V2 T |
|
---|---|
Code | 3.030829 |
C.H. Energy class at 55 °C | A+ |
C.H. Energy class at 35 °C | A+++ |
Heating output kW | 14,00 |
Cooling output kW | 14,00 |
Indoor Unit (HxWxD) mm | 811 x 440 x 474 |
Outdoor Unit (HxWxD) mm | 1420 x 940 x 384 |
Refrigerant gas | R410A |
COP | 4,44 |
EER | 3,68 |
Outdoor unit weight (kg) | 100,0 |
Indoor unit weight (kg) | 60,0 |

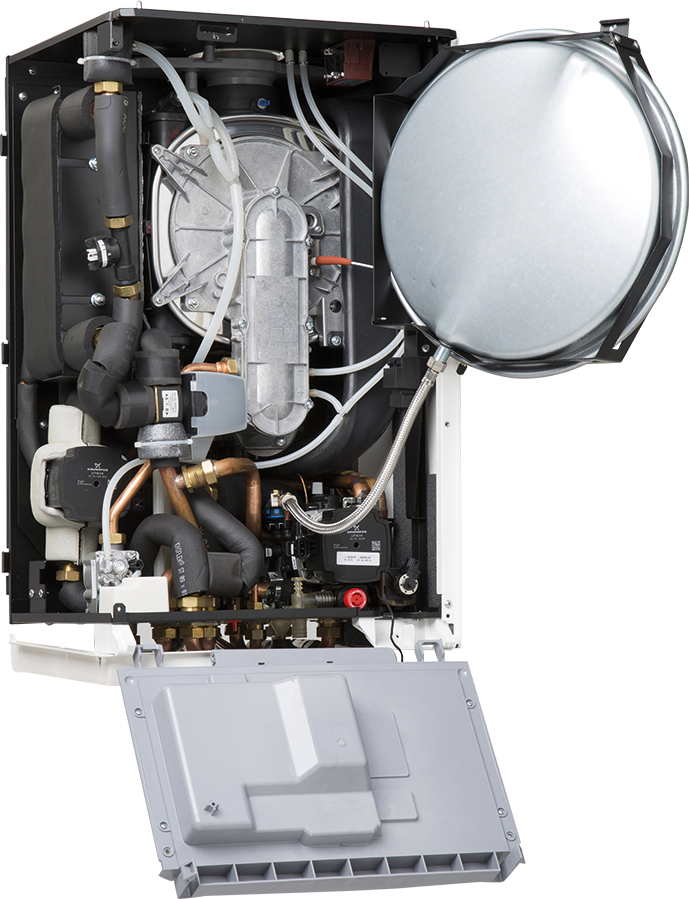

Split air to water, inverter-driven monophase hybrid heat pump system, consisting of outdoor heat pump unit and indoor hydronic and condensing unit.
The new MAGIS COMBO V2 hybrid heat pumps are appliances designed to use outside air as a partially renewable heat source by transferring its thermal energy content to the central heating system. MAGIS COMBO V2 is the hybrid heat pump that heats, cools and produces hot water with an internal condensing unit designed to meet the highest demands, its heating temperature can reach up to 80 °C.
For installation it's necessary the degree of training required to professional people (that have to be in possess of F-GAS certification) involved in the installation and their mutual connection by means of the gas circuit. The inverter driven control allows a very fine power output modulation control, together with reduction of the power input, succeeding in high level performances for more comfortable indoor climatic conditions.
MAGIS COMBO V2 are domestic-purpose-suit systems, and they are the ideal solution in new, high energy rating buildings, even when located in extremely cold areas, with very low outdoor-winter-temperatures.
The very compact external unit (smaller compared to the most diffused hydronic heat pump models), installable both on balcony and fully outdoor, allows to MAGIS COMBO V2 enhanced positional flexibility together with a minimal aestethic effect on the overall style.
MAGIS COMBO V2 is ideal for combination with photovoltaic systems.
2 relays board kit Cod.3.026302
To be installed for the deumidifiers management without in absence of system manager kit.
Dedicated to MAGIS PRO V2 and MAGIS COMBO V2
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%
* default settings
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating energy efficiency 2%* or 3,5%
* default settings
DOMINUS interface kit Cod.3.026273
External probe Cod.3.015266
To be used when external probe as standard in outdoor unit is not correctly exposed.
Temperature control class II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4 or 3,5%
* default settings
GSM telephonic control Cod.3.017182
For buildings not equipped with telephone network. Available for all Immergas models.
Low temperature safety thermostat kit Cod.3.019229
For generators settled up with low temperature
Mod-bus temperature and humidity sensor Cod.3.030992
To be used with radiant systems that also work in cooling mode
Temperature control class V or VI*
Contribution to seasonal space heating energy efficiency
3% or 4%*
* default settings
Relay board kit Cod.3.015350

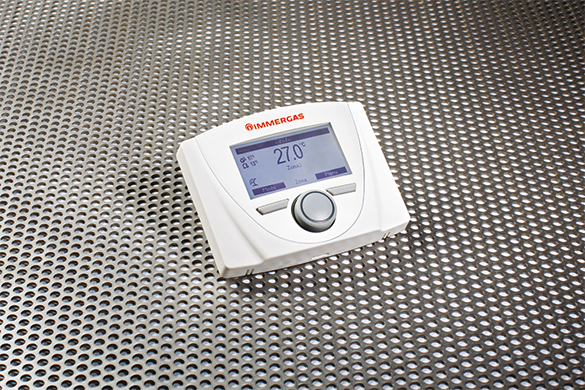

Remote Control Panel Cod.3.030863
Temperature control class V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%
Room hygrostat Cod.3.023302
To be used with radiant systems that also work in cooling mode.
Storage tank NTC probe Cod.3.019375
Allows to check the DHW temperature of a Storage Tank Unit or puffer
Provided as per standard on all Storage Tank Units in the catalogue.
System controller Cod.3.021522
System delivery probe kit Cod.3.030913
Telephonic control Cod.3.013305
For buildings equipped with telephone network. Available for all Immergas models.
1 extension pipe Ø 80 2 m long Cod.3.016837
For condensing boilers < 35 kW.
4 extension pipes Ø 80 kit 0,5 m long Cod.3.014642
For condensing boilers < 35 kW.
4 x 90° bends Ø 80 kit Cod.3.012091
For condensing boilers < 35 kW.
45° bend Ø 60/100 kit Cod.3.012095
For condensing boiler < 35 kW.
45° bend Ø 80 kit Cod.3.012092
For condensing boilers < 35 kW.
90° bend Ø 60/100 kit Cod.3.012093
For condensing boiler < 35 kW.
Additional exhaust manifold kit Ø 250 with flue lock for 4 VICTRIX PRO 100/120 Cod.3.015343
Cascade installation - "Green Series" exhaust manifolds.
With installations in central heating systems, using up to 5 units in the battery, in configuration open chamber fan assisted, Immergas supplies special exhaust manifolds in PP equipped with flue lock (mechanical shutters), to prevent backflow of combustion products through the other non-functioning boilers.
The system is modular: there is an exhaust manifold kit for two boilers and one for additional boilers.
Additional exhaust manifold kit Ø 250 with flue lock for 4 VICTRIX PRO 100/120 Cod.3.015378
Cascade installation - "Green Series" exhaust manifolds.
With installations in central heating systems, using up to 5 units in the battery, in configuration open chamber fan assisted, Immergas supplies special exhaust manifolds in PP equipped with flue lock (mechanical shutters), to prevent backflow of combustion products through the other non-functioning boilers.
The system is modular: there is an exhaust manifold kit for two boilers and one for additional boilers.
Additional exhaust manifold kit Ø 250 with flue lock for 4 VICTRIX PRO 100/120 Cod.3.015345
Cascade installation - "Green Series" exhaust manifolds.
With installations in central heating systems, using up to 5 units in the battery, in configuration open chamber fan assisted, Immergas supplies special exhaust manifolds in PP equipped with flue lock (mechanical shutters), to prevent backflow of combustion products through the other non-functioning boilers.
The system is modular: there is an exhaust manifold kit for two boilers and one for additional boilers.
Anti-wind vertical terminal kit Ø 80 Cod.3.021721
For condensing boiler < 35 kW.
Concentric horizontal complete kit Ø 60/100 Cod.3.012000
Max lenght 12,9 m.
For condensing boiler < 35 kW.
Concentric vertical complete kit Ø 60/100 (red ocher colour) Cod.3.016833
for condensing boilers < 35 kW.
Extension pipe kit Ø 60/100 0,5 m long Cod.3.014643
For condensing boiler < 35 kW.
Extension pipe kit Ø 60/100 1 m long Cod.3.012089
For condensing boiler < 35 kW.
Flanged stub-pipe + bend + extension pipe Ø 80 for flue discharge Cod.3.016365
For condensing boilers < 35 kW.
Horizontal concentric complete kit Ø 60/100 Short Cod.3.024598
Max lenght 11,9 m.
For condensing boiler < 35 kW.
Horizontal concentric complete kit Ø 60/100 with swivel terminal Cod.3.024267
Twin pipes complete kit Ø 80/80 Cod.3.012002
For condensing boiler < 35 kW.
2 ZONES KIT 1 mixed zone and 1 direct zone Cod.3.031695
For MAGIS PRO 12-14-16 V2 and MAGIS COMBO/PLUS 12-14-16 V2
3-way valve kit Cod.3.020632
Anti freeze protection kit -15 °C Cod.3.031804
Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.
Bracket kit for wall mounting 75 inertial storage tank Cod.3.027290
Condensate discharge pump kit Cod.3.026374
For wall-hung boilers: compact condensate drain pump kit.
Condensate neutralizer kit Cod.3.019857
Connection kit for R410A circuit Cod.3.026089
Cover kit for MAGIS COMBO 12-14-16 V2 Cod.3.031977
Dehumidifier back frame kit Cod.3.022146
Dehumidifier front grille kit Cod.3.022147
Dehumidifier kit Cod.3.021529
External cover kit with acoustical insulation for ZENITAIR-MONO Cod.3.030636
HYDRO 3 V2 Cod.3.033625
HYDRO 4 V2 Cod.3.033626
HYDRO FS 200 Cod.3.028500
HYDRO FS 400 Cod.3.028501
HYDRO FS 600 Cod.3.028502
HYDRO FS 800 Cod.3.028503
HYDRO FS 1000 Cod.3.028505
INOXSTOR 200 V2 Cod.3.027746
Stainless steel storage tank units for DHW
Individual solar components
The range of new INOXSTOR stainless steel solar
storage tanks, is ideal to contain domestic hot water
with an inspection flange at the lower part.
The storage tanks are equipped with:
• 2 stainless steel coils water/water heat exchangers
• 2 probe-supports and NTC probe for Immergas
boiler connection < 35 kW
• thermometer
• double magnesium anode
• suitable flexible insulation which can be
disassembled (6 cm thick)
• pre-arranged to fix pump station to the body of the
storage tank
• pre-arranged to double electronic anode (optional)
code 3.025003
The use of this storage tank unit involves the installation of an appropriately
sized DHW expansion vessel and safety valve, not included in the supply.
OMNISTOR 300 Cod.3.027910
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
OMNISTOR 500 Cod.3.027911
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
Vertical inertial storage tank 75 litre Cod.3.027288
Wall mounting brackets for external unit Cod.3.034758
For outdoor unit of MAGIS COMBO 4-6-9 V2/ 4-6-9 PLUS V2, MAGIS COMBO 12-14-16 V2/ 12-14-16 PLUS V2, TRIO PACK 4-6-9, TRIO HYDRO 5-8-12, MAGIS HERCULES PRO 4-6-9-12-14-16, MAGIS PRO 4-6-9 V2 /12-14-16 V2, MAGIS HERCULES PRO MINI 6-9/6-9 EU.
ZENITAIR MONO Cod.3.030601
