TRIO PACK HYBRID 4

Split type hybrid heat pumps recessed or in-house solutions

The customer service provides
prompt answers within 24 hours.
Ideal for new buildings
Standard thermoregulation
Heating and cooling

Technical data TRIO PACK HYBRID 4

Code 3.031709
C.H. Energy class at 55 °C A++
D.H.W. Energy class - Stated load profile A+ / L
DHW storage tank (litres) 160
Plant zones (n.) 1 direct

Technical data TRIO PACK HYBRID 4

Code 3.031709
C.H. Energy class at 55 °C A++
D.H.W. Energy class - Stated load profile A+ / L
DHW storage tank (litres) 160
Plant zones (n.) 1 direct

Gallery

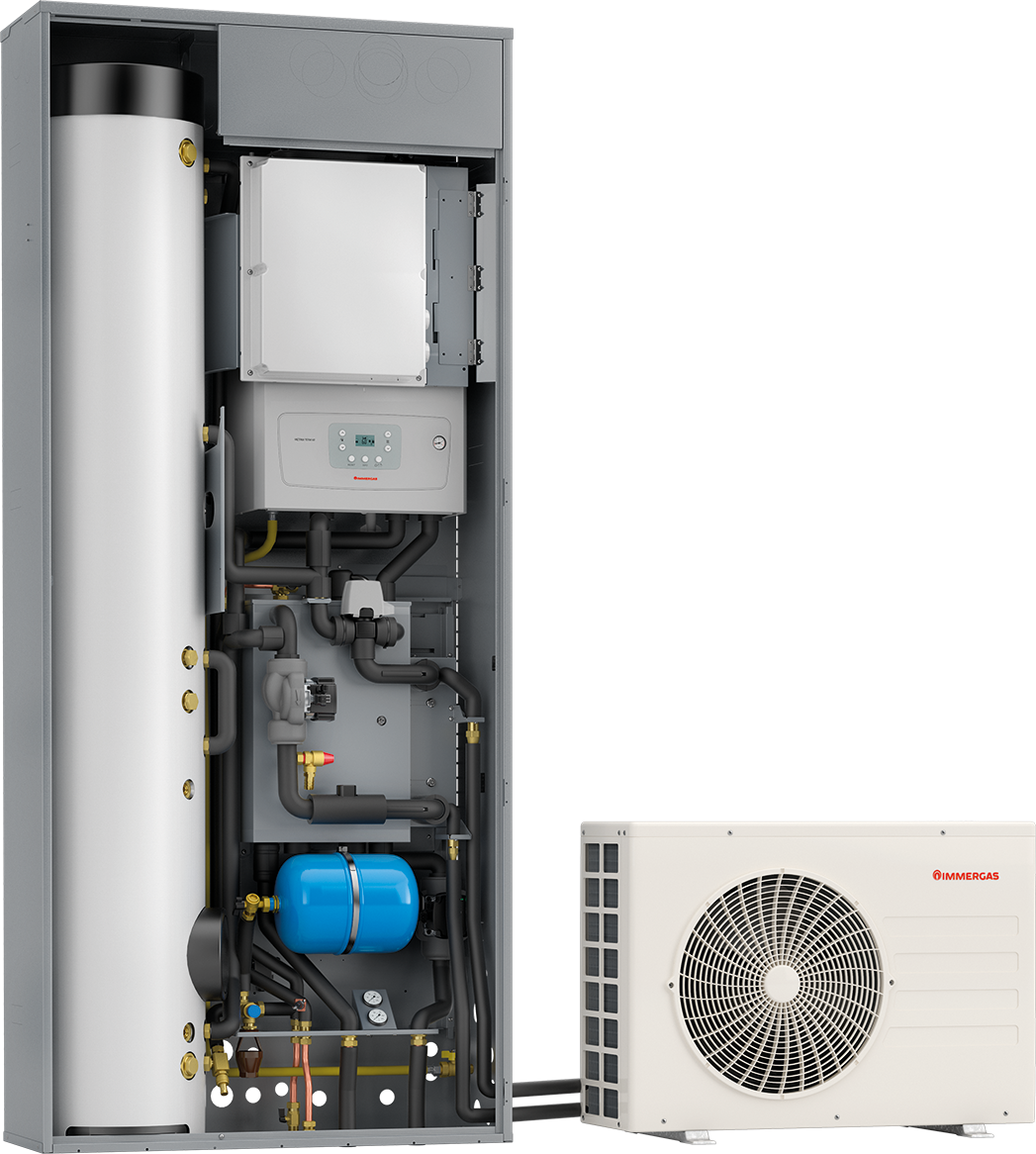

New hybrid solution “all-in-one".
Complete with split type heat pump and condensing unit (PLUS type), represents a single code system for heating/cooling systems and production of domestic hot water.

  • Remote control panel (with chronothermostat function) as standard;
  • 160 litre storage tank with double coil in series, in stainless steel AISI 316 L, class C, complete of 2 magnesium anodes, insulation and flange of inspection;
  • Domestic hot water production with storage tank unit managed by both the heat pump and the internal condensation unit;
  • 25 litres buffer tank in stainless steel with function of hydraulic separator, pump for 1 direct zone, “Y" filter, D.H.W. expansion vessel 8 litres, system flow meter, D.H.W. safety valve 8 bar;
  • Hydronic group linked to the operation of the heat pump (R32 /water exchanger, circulator, 3 way valve).
...

2 relays board kit   Cod.3.031943

For TRIO PACK, TRIO HYDRO, MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO.

...

CRONO 7 (weekly digital chronothermostat)   Cod.3.021622

ON/OFF room thermostat.



...

CRONO 7 WIRELESS (wireless weekly digital chronothermostat)   Cod.3.021624

Wireless ON/OFF room thermostat.





...

DOMINUS interface kit   Cod.3.026273

To control heat pumps or hybrid systems and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the appliance circuit board from any location.
...

Expansion kit   Cod.3.031944

For TRIO PACK, TRIO HYDRO, MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO.

...

External probe   Cod.3.014083

Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.


Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%

* as standard

...

Mod-bus temperature and humidity sensor   Cod.3.030992

To be used with radiant systems that also work in cooling mode



...

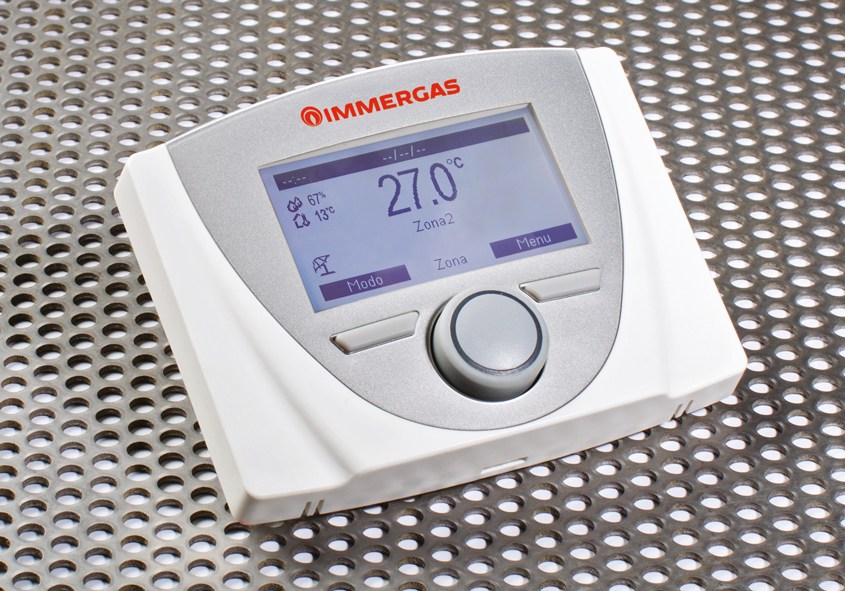

Remote Control Panel   Cod.3.030863

Modulating chronotermostat, remote control with temperature/humidity sensor

...

Room hygrostat   Cod.3.023302

To be used with radiant systems that also work in cooling mode.

...

4 x 90° bends Ø 80 kit   Cod.3.012091

for condensing boilers

...

90° bend Ø 60/100 kit   Cod.3.012093

For condensing boiler < 35 kW.

...

Concentric vertical complete kit Ø 60/100 (red ocher colour)   Cod.3.016833

for condensing boilers < 35 kW.

...

Extension pipe kit Ø 60/100 0,5 m long   Cod.3.014643

For condensing boiler < 35 kW.

...

Flanged stub-pipe + bend + extension pipe Ø 80 for flue discharge   Cod.3.016365

For condensing boilers < 35 kW.

...

Flanged stub-pipe kit Ø 60/100   Cod.3.012086

For condensing boiler < 35 kW.

...

Flanged stub-pipe kit Ø 80   Cod.3.012087

For condensing boilers < 35 kW.

...

Gasket kit Ø 125   Cod.3.015345

...

Gasket kits 10 pcs. Ø 80 Ø 80   Cod.3.015378

...

Gasket kits 10 pcs. Ø 80 Ø 80/125   Cod.3.015343

...

Twin pipes complete kit Ø 80/80   Cod.3.012002

for condensing boilers < 35 kW and VICTRIX PRO 35/55/60/68/80 V2 (color RAL 9010)

...

3-way valve kit   Cod.3.020632

...

Additional mixed 2nd zone kit for TRIO PACK   Cod.3.031483

...

Aesthetic upper cover DOMUS CONTAINER   Cod.3.027175







...

Anti freeze protection kit -15 °C   Cod.3.017324

Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.

...

Anti-scale kit for TRIO PACK   Cod.3.032261

indoor only

...

Connection kit for R32 circuit for TRIO PACK   Cod.3.031966

For connection R32 toward the lower part of the Container

...

Connection kit for horizontal zones (side connection) for TRIO PACK O   Cod.3.032256

including fittings, 4 shut-off knobs and predisposition to
insert the “Y" filters for zone 1 and 2

...

Connection kit for rear zones (rear connection) for TRIO PACK   Cod.3.032258

including fittings, 4 shut-off knobs and predisposition to
insert the “Y" filters for zone 1 and 2

...

Connection kit for vertical zones (bottom connection) for TRIO PACK   Cod.3.032257

including fittings, 4 shut-off knobs and predisposition to
insert the “Y" filters for zone 1 and 2

...

DHW recirculation kit   Cod.3.026169

pump not included

...

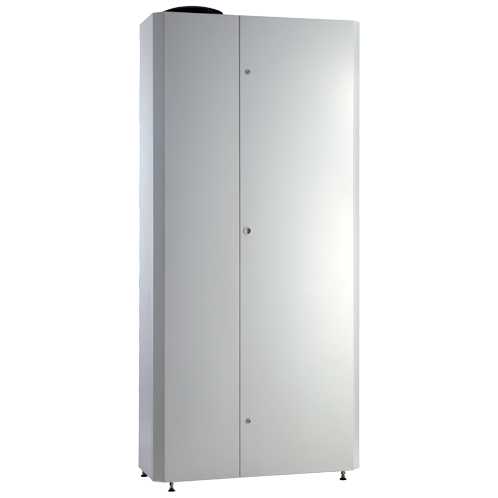

DOMUS CONTAINER (technical box)   Cod.3.022167

Technical box for solutions TRIO V2 and TRIO MONO V2.
is the first of the main components of TRIO V2/TRIO MONO V2 systems for indoor installations. It allows the housing of the main components (except for the AUDAX heat pump).
It blends easily into any room and does not require no brickwork for subsequent installation of generators, hydraulic components and flues (if any).
Front opening enables total system maintenance.
Dimensions (H x W x D) mm 2110 x 975 x 365





...

Dehumidifier back frame kit   Cod.3.022146

...

Dehumidifier front grille kit   Cod.3.022147

...

Dehumidifier kit   Cod.3.021529

Only for recessed installation with codes 3.022146 and 3.022147



...

External cover kit with acoustical insulation for ZENITAIR-MONO   Cod.3.030636

Anti-insect net and anti-wind in pre-painted steel, alternative to the one available with ZENITAIR-MONO.




...

HYDRO 3 V2   Cod.3.033625

Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
...

HYDRO IN 200   Cod.3.029841

Wall and ceiling built-in hydronic fancoil



...

HYDRO 4 V2   Cod.3.033626

Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
...

HYDRO FS 200   Cod.3.028500

Floor standing hydronic fancoil



...

HYDRO FS 400   Cod.3.028501

Floor standing hydronic fancoil

...

HYDRO FS 600   Cod.3.028502

Floor standing hydronic fancoil


...

HYDRO FS 800   Cod.3.028503

Floor standing hydronic fancoil


...

HYDRO FS 1000   Cod.3.028505

Floor standing hydronic fancoil

...

HYDRO IN 400   Cod.3.029842

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 600   Cod.3.029843

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 800   Cod.3.029844

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 1000   Cod.3.029845

Wall and ceiling built-in hydronic fancoil



...

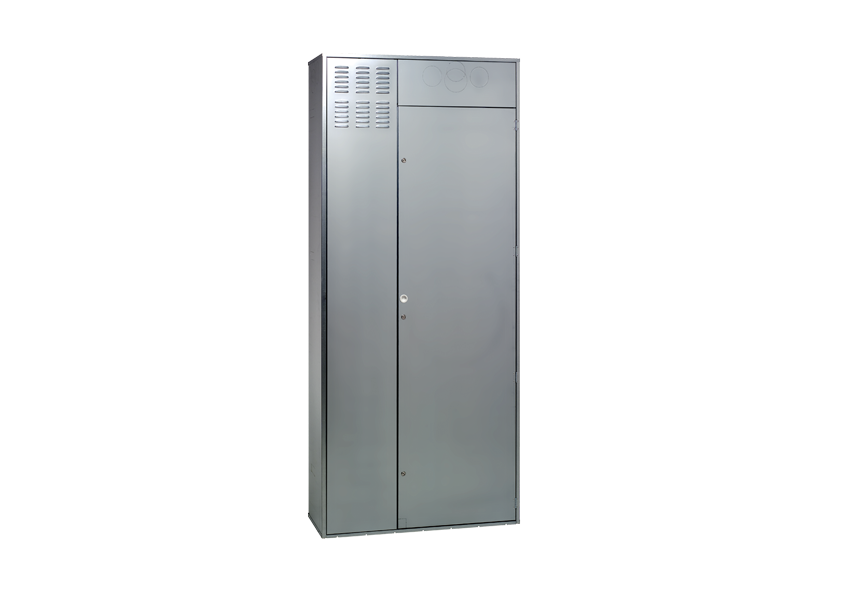

SOLAR CONTAINER (recessed frame)   Cod.3.020166

Recessed frame for solutions TRIO V2 and TRIO MONO V2.
is the first of the main components of TRIO V2/TRIO MONO V2 systems.
It allows the housing of the main components (except for the AUDAX heat pump.
It can be ordered and installed during the building planning stage and provides the installer with all the system features for subsequent installation of generators, hydraulic parts and flues (if any).

Front access enables total maintenance of the system.
Dimensions (H x W x D) mm 2200 x 950 x 350

...

Wall mounting brackets for external unit   Cod.3.034758

For outdoor unit of MAGIS COMBO V2, MAGIS COMBO PLUS V2, TRIO PACK, TRIO HYDRO, MAGIS HERCULES PROMAGIS PRO V2, MAGIS HERCULES PRO MINI, MAGIS HERCULES MINI HYDRO, THOR, GOTHA and MULTI 18-27.



...

ZENITAIR MONO   Cod.3.030601

Decentralised mechanical ventilation unit, easy to install, with alternate flow and heat recovery core.
Multifunction remote controller, with LCD display to visualise the status of the unit supplied as standard.
