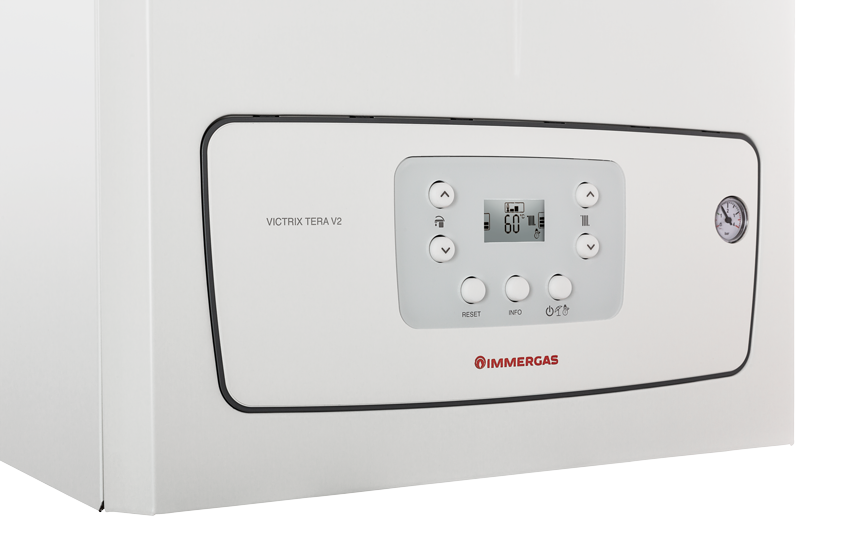

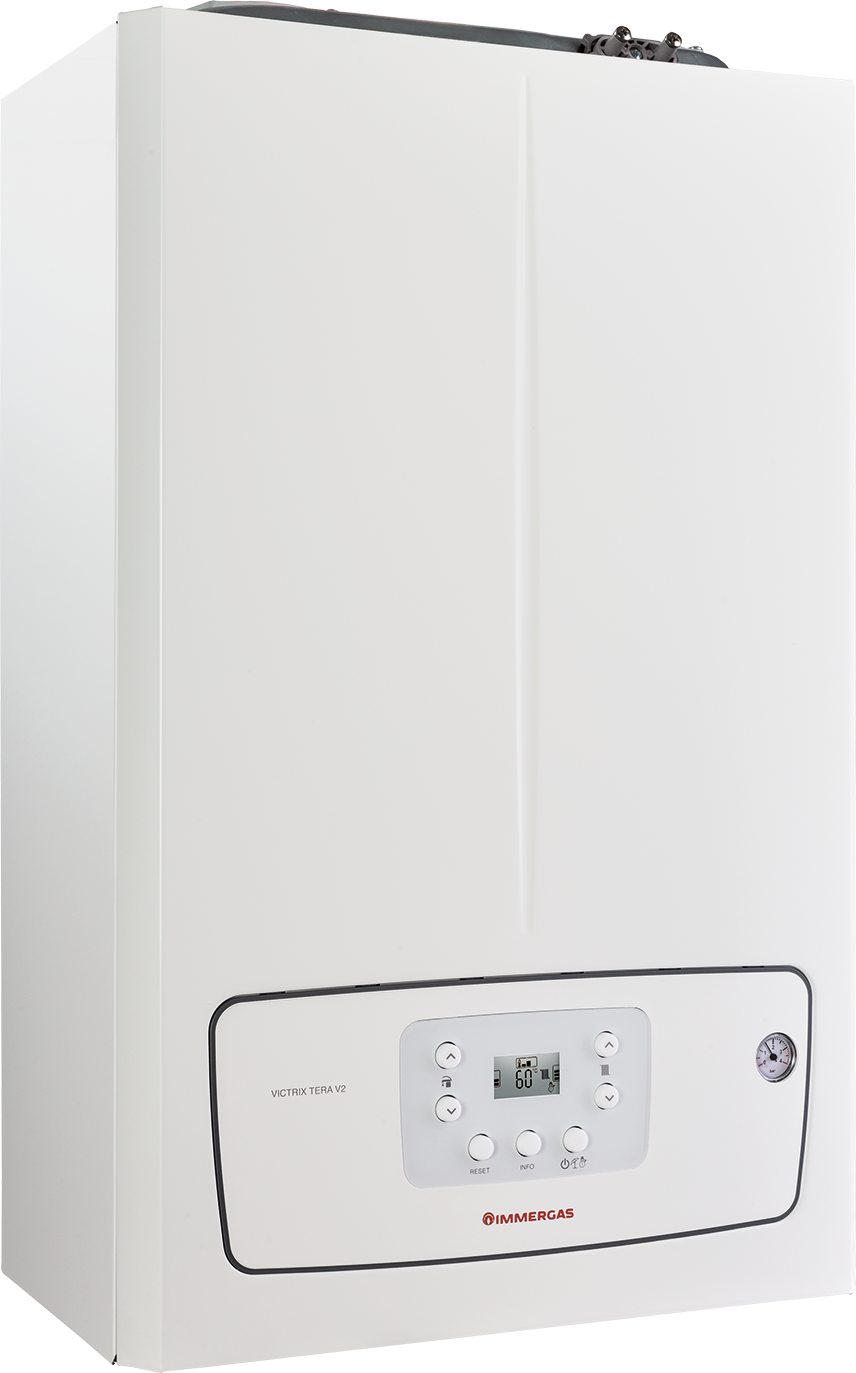

VICTRIX TERA V2 32 EU
Wall-hung combi condensing boiler
prompt answers within 24 hours.
Technical data VICTRIX TERA V2 32 EU |
|
---|---|
Code | 3.032931 |
custom | Array |
C.H. Energy class | A |
D.H.W. Energy class - Stated load profile | A / XL |
Heat output C.H. kW | 28,0 |
Heat output D.H.W. kW | 31,9 |
Dimensions (HxWxD) mm | 748 x 440 x 253 |
Type | combi |
Modulating heat output | 17 - 100 % |
D.H.W. production (∆t 30°C) l/min | 16,5 |
Technical data VICTRIX TERA V2 32 EU |
|
---|---|
Code | 3.032931 |
Product plus | HYDROGEN READY 20% |
C.H. Energy class | A |
D.H.W. Energy class - Stated load profile | A / XL |
Heat output C.H. kW | 28,0 |
Heat output D.H.W. kW | 31,9 |
Dimensions (HxWxD) mm | 748 x 440 x 253 |
Type | combi |
Modulating heat output | 17 - 100 % |
D.H.W. production (∆t 30°C) l/min | 16,5 |
- Remarkable compactness
- Aesthetics with greater attention to details
- It works with methane, LPG or 20% hydrogen blend
- 94% seasonal efficiency to reach a higher energy classification (A+) in combination with Modulating Remote Controls (ie. CARV2 or SMARTECH PLUS)
- Wide range: 3 combi versions and 2 for heating only which can be combined with storage tanks of various capacities.
- It allows the renovation of old chimneys even in case of small diameters
- It can be connected to collective flues designed in positive pressure, thanks to safety devices equipment and by using a specific kit option
- NOx class 6
CARV2 (weekly chronothermostat and modulating remote control) Cod.3.021395
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
*as standard
CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control) Cod.3.021623
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
Wireless ON/OFF room thermostat.
Electrical box cover plate kit for SMARTECH PLUS Cod.3.031013
It allows the covering of the wall hole for electrical boxes type 503.
Expansion kit for SMARTECH PLUS Cod.3.030911
For controlling the temperature in several areas of the house (example living and sleeping areas).
The kit includes: additional SMART thermostat and wi-fi relay (in this case the wi-fi network is required).
External probe Cod.3.014083
Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%
* as standard
GSM telephonic control Cod.3.017182
For buildings not equipped with telephone network.
Low temperature safety thermostat kit Cod.3.019229
For generators settled up with low temperature
MINI CRD (MINI weekly chronothermostat and modulating remote control) Cod.3.020167
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
Multi-zone electronic board Cod.3.028444
It can manage 4 zones at the same temperature or 1 mixed and 1 direct zone by remote modulating controls (ie. CAR V2).
For VICTRIX ZEUS, VICTRIX MAIOR TT/X, VICTRIX TT ErP/X, VICTRIX EXA/X, VICTRIX TERA VIP, VICTRIX TERA/PLUS, VICTRIX OMNIA, MYTHOS HP, NIKE/AVIO ECO and NIKE STAR 24.
SMARTECH PLUS - SMART remote control Cod.3.030909
Hi-tech smart wireless remote control with Bluetooth technology
The kit includes:
• Chronothermostat (to be placed where you want to adjust the temperature)
• Gateway (to be connected to the boiler or to the internet network at home - power supply 230 V)
• Wall fixing base (with leveling bubble integrated)
• Table stand
• 2 power batteries (as standard)
• Functioning room temperature: 0 - +40 °C
• Protection rating IP 20
Temperature control class: V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%
*default settings.
Solar probe kit Cod.3.021452
Telephonic control Cod.3.013305
For buildings equipped with telephone network.
Zone control unit V2 kit Cod.3.030912
Control unit for external circulators/zone valves to manage 3 zones (2 mixed and 1 direct).
90° bend terminal kit Ø 50 (C5) for flexible ducting system Cod.3.027357
Flexible chimney ducting system for condensing boilers.
Anti-wind vertical terminal kit Ø 80 Cod.3.021721
For condensing boiler < 35 kW.
Chimney hole closing panel Cod.3.012008
Hole closing panel, inspection door and grommet for ducting system.
For condensing boilers < 35 kW.
Components support kit Ø 50 mm for flexible ducting system Cod.3.027355
Flexible chimney ducting system for condensing boilers.
Concentric horizontal outlet Ø 60/100 Cod.3.016836
for condensing boilers < 35 kW.
Concentric vertical complete kit Ø 60/100 (red ocher colour) Cod.3.016833
for condensing boilers < 35 kW.
Cover kit for VICTRIX TERA V2/PLUS V2 Cod.3.032844
For external installations, in partially protected places
Flanged stub-pipe + bend + extension pipe Ø 80 for flue discharge Cod.3.016365
For condensing boilers < 35 kW.
Flexible hose kit Ø 50 mm L. 10 m Cod.3.027354
Flexible chimney ducting system for condensing boilers.
Flexible/flexible adapter kit for flexible ducting system Ø 50 Cod.3.027359
Flexible chimney ducting system for condensing boilers.
Horizontal concentric complete kit Ø 60/100 Short Cod.3.024598
Max lenght 11,9 m.
For condensing boiler < 35 kW.
Horizontal concentric complete kit Ø 60/100 with swivel terminal Cod.3.024267
Horizontal concentric swivel outlet Ø 60/100 Cod.3.027408
for condensing boilers < 35 kW.
Terminal vertical outlet kit Ø 80 Cod.3.015256
For condensing boiler < 35 kW.
Twin pipes complete kit Ø 80/80 Cod.3.012002
for condensing boilers < 35 kW and VICTRIX PRO 35/55/60/68/80 V2 (color RAL 9010)
Ø 80 "T-shaped" terminal kit Ø 80 (C5) for flexible ducting system Cod.3.027356
Flexible chimney ducting system for condensing boilers.
2 litres additional expansion vessel Cod.3.017514
All-purpose connection kit for wall-hung combi boilers Cod.3.011667
For wall-hung combi boilers and also for wall-hung with built-in storage tank.
Anti freeze protection kit -15 °C Cod.3.017324
Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.
Anti-scale kit for VICTRIX SUPERIOR, MAIOR TT, TT ErP, TT, EXA ErP, TERA, TERA VIP and MAGIS COMBO V2 Cod.3.017323
For VICTRIX SUPERIOR, MAIOR TT ErP, TT ErP, TT, EXA ErP, TERA, TERA VIP and MAGIS COMBO V2.
Condensate discharge pump kit Cod.3.026374
For wall-hung boilers: compact condensate drain pump kit.
DIM 2 ZONES ErP Cod.3.025607
Hydraulic manifold, 2 low-consumption pumps and electronic board.
DIM 3 ZONES ErP Cod.3.025608
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
DIM BASIC ErP Cod.3.025606
Hydraulic manifold and 1 low-consumption pump.
DIM H-2LT ErP Cod.3.025610
Kit for mixed systems with 2 low temperature zones and 1 high temperature zone.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps, 2 mixing valves and electronic board.
DIM H-LT ErP Cod.3.025609
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
Magnetic cyclone filter kit Cod.3.024176
Magnetic cyclone filter kit to prevent system ferrous residual (only for internal installation).
Available for wall-hung condensing boilers.
Mixing valve kit Cod.3.027084
For multi-zone electronic board (code 3.028444)
Shut off knobs Cod.3.5324
For wall-hung outdoor boilers.
Solar valve Cod.3.018911
kit containing bottom guard for condensing boilers Cod.3.027341
For wall-hung condensing boilers.
¾" Mixing valve Cod.3.019099
The kit includes:
1 thermostatic mixing valve with a 42 °C - 60 °C adjustment range and maximum inlet temperature of 90 °C.
