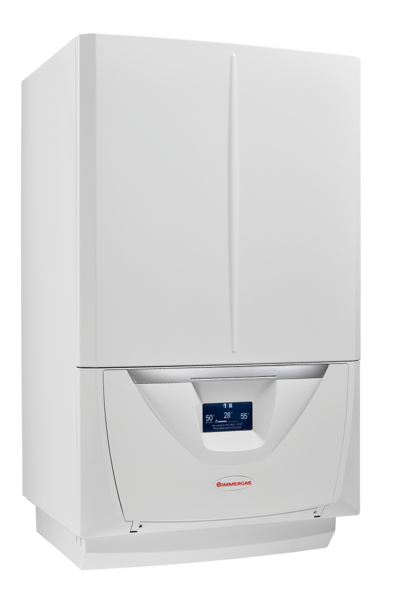

VICTRIX SUPERIOR 35

Wall-hung combi condensing boiler with “Aqua Celeris" and magnetic cyclone filter
The customer service provides
prompt answers within 24 hours.
3 star marking sanitary comfort
Hot water quick erogation
Modulating pump

Technical data VICTRIX SUPERIOR 35

Code 3.033010
custom Array
C.H. Energy class A
D.H.W. Energy class - Stated load profile A / XL
Heat output kW 33,0
Dimensions (HxWxD) mm 775 x 440 x 389
Type combi
Modulating heat output 7 - 100%
D.H.W. production (∆t 30°C) l/min 16,1

Technical data VICTRIX SUPERIOR 35

Code 3.033010
Product plus HYDROGEN READY 20%
C.H. Energy class A
D.H.W. Energy class - Stated load profile A / XL
Heat output kW 33,0
Dimensions (HxWxD) mm 775 x 440 x 389
Type combi
Modulating heat output 7 - 100%
D.H.W. production (∆t 30°C) l/min 16,1

Gallery

  • Single product code to work with methane, LPG or 20% hydrogen blend (gas adaptive technology)
  • 94% seasonal efficiency to reach a higher energy classification (A+) in combination with Modulating Remote Controls (ie. SMARTECH PLUS, CARV2 or CRD PLUS).
  • NOx class 6
  • 3 star marking sanitary comfort
  • Modulating heat output from 6 to 100% (data referred to Natural gas)
  • “Aqua Celeris" patented system
  • Adjustable system by-pass
  • Optimum DHW performances thanks to the flow regulator
  • Standard frost protection up to -3 °C
  • Connection kit as standard
  • Magnetic cyclone filter kit as standard
  • The standard clapet allows the combination with multiple exhaust systems under positive pressure
  • The hi-tech electronics provides numerous new functions such as the possibility to manage 3 zones directly from the boiler control panel or the convenience of setting 4 comfort time bands and 4 calendars
...

CARV2 (weekly chronothermostat and modulating remote control)   Cod.3.021395

Class of device V* or VI

Contribution to the environmental heating seasonal energy efficiency 3%* or 4%

*as standard

...

CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control)   Cod.3.021623

Class of device V* or VI

Contribution to the environmental heating seasonal energy efficiency 3%* or 4%

* as standard

...

CRD PLUS (weekly chronothermostat and modulating remote control)   Cod.3.032645

Class of device V* or VI

Contribution to the environmental heating seasonal energy efficiency 3%* or 4%

*as standard

...

CRONO 7 (weekly digital chronothermostat)   Cod.3.021622

ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%

* default settings

...

CRONO 7 WIRELESS (wireless weekly digital chronothermostat)   Cod.3.021624

ON/OFF room thermostat.



Class of device IV* or VII

Contribution to the environmental heating energy efficiency 2%* or 3,5%

* default settings

...

DOMINUS interface kit   Cod.3.026273

To control heat pumps, system or gas boilers and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the heat pump’s circuit board from any location.
...

Electrical box cover plate kit for SMARTECH PLUS   Cod.3.031013

It allows the covering of the wall hole for electrical boxes type 503.

...

Expansion kit for SMARTECH PLUS   Cod.3.030911

For controlling the temperature in several areas of the house (example living and sleeping areas).

The kit includes: additional SMART thermostat and wi-fi relay (in this case the wi-fi network is required).



...

External probe   Cod.3.014083

Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.


Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%

* as standard

...

GSM telephonic control   Cod.3.017182

For buildings not equipped with telephone network. Available for all Immergas models.

...

Low temperature safety thermostat kit   Cod.3.019229

For generators settled up with low temperature

...

Relay board kit   Cod.3.015350

Allows interface between zone valves and CAR V2 or SUPER CAR, to send an alarm signal, to manage external pump etc.

To be installed inside internal unit both in MAGIS COMBO V2 and MAGIS PRO V2
...

SMARTECH PLUS - SMART remote control   Cod.3.030909

Hi-tech smart wireless remote control with Bluetooth technology

The kit includes:
• Chronothermostat (to be placed where you want to adjust the temperature)
• Gateway (to be connected to the boiler or to the internet network at home - power supply 230 V)
• Wall fixing base (with leveling bubble integrated)
• Table stand
• 2 power batteries (as standard)
• Functioning room temperature: 0 - +40 °C
• Protection rating IP 20


Temperature control class: V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%



*default settings.

...

System delivery probe kit   Cod.3.030913

To be positioned after the heating system manifold.
...

Telephonic control   Cod.3.013305

For buildings equipped with telephone network. Available for all Immergas models.

...

Wireless room sensor kit   Cod.3.030906

Ideal for reading the room temperature of second or third zone.

To be matched to sensor receiver code 3.030908.

Product class V* or VI

Seasonal energy efficiency value 3%* or 4%

*as standard



...

Wireless room sensors receiver kit   Cod.3.030908

The kit includes 1 room sensor and one receiver for the dialogue between boiler and room sensor.


Product class V* or VI

Seasonal energy efficiency value 3%* or 4%

*as standard


...

Zone control unit V2 kit   Cod.3.030912

Control unit for external circulators/zone valves to manage 3 zones (2 mixed and 1 direct).

...

Additional exhaust manifold kit Ø 250 with flue lock for 4 VICTRIX PRO 100/120   Cod.3.015343

Cascade installation - "Green Series" exhaust manifolds.
With installations in central heating systems, using up to 5 units in the battery, in configuration open chamber fan assisted, Immergas supplies special exhaust manifolds in PP equipped with flue lock (mechanical shutters), to prevent backflow of combustion products through the other non-functioning boilers.
The system is modular: there is an exhaust manifold kit for two boilers and one for additional boilers.

...

Additional exhaust manifold kit Ø 250 with flue lock for 4 VICTRIX PRO 100/120   Cod.3.015378

Cascade installation - "Green Series" exhaust manifolds.
With installations in central heating systems, using up to 5 units in the battery, in configuration open chamber fan assisted, Immergas supplies special exhaust manifolds in PP equipped with flue lock (mechanical shutters), to prevent backflow of combustion products through the other non-functioning boilers.
The system is modular: there is an exhaust manifold kit for two boilers and one for additional boilers.

...

Additional exhaust manifold kit Ø 250 with flue lock for 4 VICTRIX PRO 100/120   Cod.3.015345

Cascade installation - "Green Series" exhaust manifolds.
With installations in central heating systems, using up to 5 units in the battery, in configuration open chamber fan assisted, Immergas supplies special exhaust manifolds in PP equipped with flue lock (mechanical shutters), to prevent backflow of combustion products through the other non-functioning boilers.
The system is modular: there is an exhaust manifold kit for two boilers and one for additional boilers.

...

Anti-wind vertical terminal kit Ø 80   Cod.3.021721

For condensing boiler < 35 kW.

...

Clapet kit for for collective flue systems operating under positive pressure   Cod.3.031599

for VICTRIX ZEUS SUPERIOR and VICTRIX SUPERIOR

...

Concentric horizontal outlet Ø 60/100   Cod.3.016836

for condensing boilers < 35 kW.

...

Concentric vertical complete kit Ø 60/100 (red ocher colour)   Cod.3.016833

for condensing boilers < 35 kW.

...

Flanged stub-pipe + bend + extension pipe Ø 80 for flue discharge   Cod.3.016365

For condensing boilers < 35 kW.

...

Horizontal concentric complete kit Ø 60/100 Short   Cod.3.024598

Max lenght 11,9 m.
For condensing boiler < 35 kW.

...

Horizontal concentric complete kit Ø 60/100 with swivel terminal   Cod.3.024267

Max lenght 9,9 m.
For condensing boiler < 35 kW except HP models.
...

Horizontal concentric swivel outlet Ø 60/100   Cod.3.027408

for condensing boilers < 35 kW.

...

Terminal vertical outlet kit Ø 80   Cod.3.015256

For condensing boiler < 35 kW.

...

Twin pipes complete kit Ø 80/80   Cod.3.012002

For condensing boiler < 35 kW.

...

2 litres additional expansion vessel for VICTRIX SUPERIOR   Cod.3.032168

For VICTRIX SUPERIOR.

...

All-purpose connection kit for wall-hung combi boilers   Cod.3.011667

For wall-hung combi boilers and also for wall-hung with built-in storage tank.

...

Anti freeze protection kit -15 °C   Cod.3.017324

Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.

...

Anti-scale kit for VICTRIX SUPERIOR, MAIOR TT, TT ErP, TT, EXA ErP, TERA, TERA VIP and MAGIS COMBO V2   Cod.3.017323

For VICTRIX SUPERIOR, MAIOR TT ErP, TT ErP, TT, EXA ErP, TERA, TERA VIP and MAGIS COMBO V2.

...

Bottom cover kit for VICTRIX SUPERIOR   Cod.3.032167

for VICTRIX SUPERIOR

...

Condensate discharge pump kit   Cod.3.026374

For wall-hung boilers: compact condensate drain pump kit.

...

Condensate neutralizer kit   Cod.3.019857

Necessary to neutralize the acidity of the condensation. Inclusive of granulate.
...

Cover kit for VICTRIX SUPERIOR   Cod.3.032166

For partially protected area installation


...

DIM 2 ZONES ErP   Cod.3.025607

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
...

DIM 3 ZONES ErP   Cod.3.025608

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
...

DIM BASIC ErP   Cod.3.025606

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold and 1 low-consumption pump.
...

DIM H-2LT ErP   Cod.3.025610

Kit for mixed systems with 2 low temperature zones and 1 high temperature zone.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps, 2 mixing valves and electronic board.

...

DIM H-LT ErP   Cod.3.025609

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
...

Shut off knobs   Cod.3.5324

For wall-hung outdoor boilers.

...

Shut off knobs with filter   Cod.3.015854

For wall-hung boilers.
