HERCULES MINI 35
Condensing Boilers
Floor standing boilers with 54-litres stainless steel storage tank
- High sanitary comfort
- High hydraulic performances
- Wide modulating heat output
Hydrogen Ready efficiency and technology.
The customer service provides prompt answers within 24 hours.
HERCULES MINI 35
Condensing module

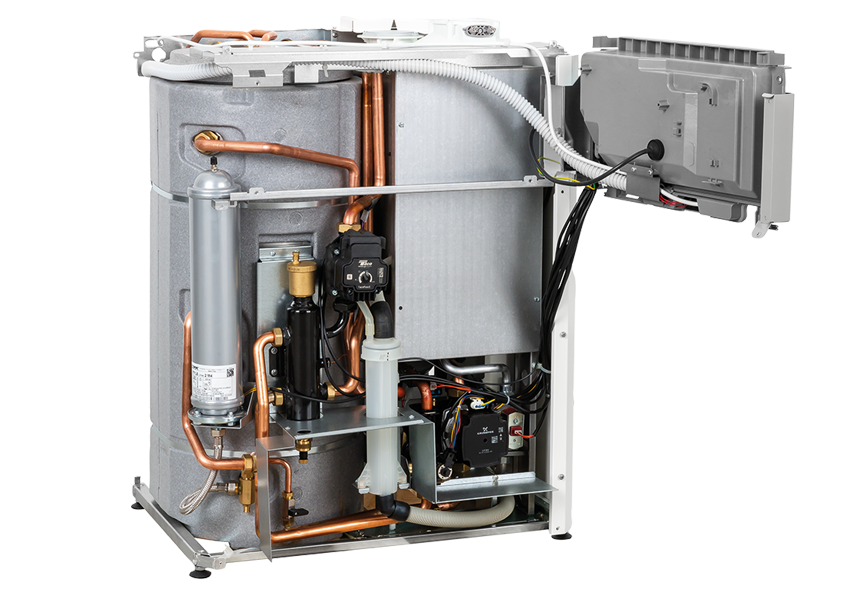

HERCULES MINI 35 open
| Technical data HERCULES MINI 35 | |
|---|---|
| Code | 3.035067 |
| Product plus | HYDROGEN READY 20% |
| C.H. Energy class | A |
| D.H.W. Energy class - Stated load profile | A / XL |
| Heat output C.H. kW | 28,2 |
| Heat output D.H.W. kW | 33,9 |
| Dimensions (HxWxD) mm | 850 x 650 x 600 |
| Type | storage tank of 54 litres |
| Modulating heat output | 10 - 100% |
| D.H.W. production (∆t 30 °C) Specific flow rate l/min | 19,0 |
| D.H.W. production (∆t 30 °C) Continuous service l/min | 16,3 |
Product presentation
New floor-standing boiler with integrated stainless steel storage tank characterised by high production and fast delivery of domestic hot water.
The variety of the range satisfies the different system needs: HERCULES MINI 35 compact with 54 litres storage tank, HERCULES 25, 35 and 35 ABT with 120 litres storage tank for large homes and HERCULES SOLAR 25 with 200 litres storage tank and "solar ready" thanks to the standard equipment for connection to the solar thermal system.
Wide modulation range (from 10% to 100% of the power) to save energy and large section condensing module to reduce the risk of clogging. All models in class 6, the most ecological and if combined with a modulating thermoregulator Immergas (such as CAR V2/Wireless Ambient Sensor plus external probe or SMARTECH PLUS) they reach an A+ energy classification.
Certified Hydrogen Ready they can work with a single code on methane, LPG, propane air and blend up to 20% hydrogen.
