AVIO ECO 24
Wall-hung with built-in storage tank, open chamber and conventional flue
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
3 star marking sanitary comfort
User-friendly interface
Ideal for connection to multiple inlet chimneys
Technical data AVIO ECO 24 |
|
|---|---|
| Code | 3.028383 |
| C.H. Energy class | C |
| D.H.W. Energy class - Stated load profile | B / XL |
| Heat output kW | 24 |
| Dimensions (HxWxD) mm | 900 x 580 x 410 |
| Type | storage tank of 45 litres |
| D.H.W. production (∆t 30°C) Specific flow rate l/min | 12,2 |
| D.H.W. production (∆t 30°C) Continuous service l/min | 11,2 |
Technical data AVIO ECO 24 |
|
|---|---|
| Code | 3.028383 |
| C.H. Energy class | C |
| D.H.W. Energy class - Stated load profile | B / XL |
| Heat output kW | 24 |
| Dimensions (HxWxD) mm | 900 x 580 x 410 |
| Type | storage tank of 45 litres |
| D.H.W. production (∆t 30°C) Specific flow rate l/min | 12,2 |
| D.H.W. production (∆t 30°C) Continuous service l/min | 11,2 |
Gallery

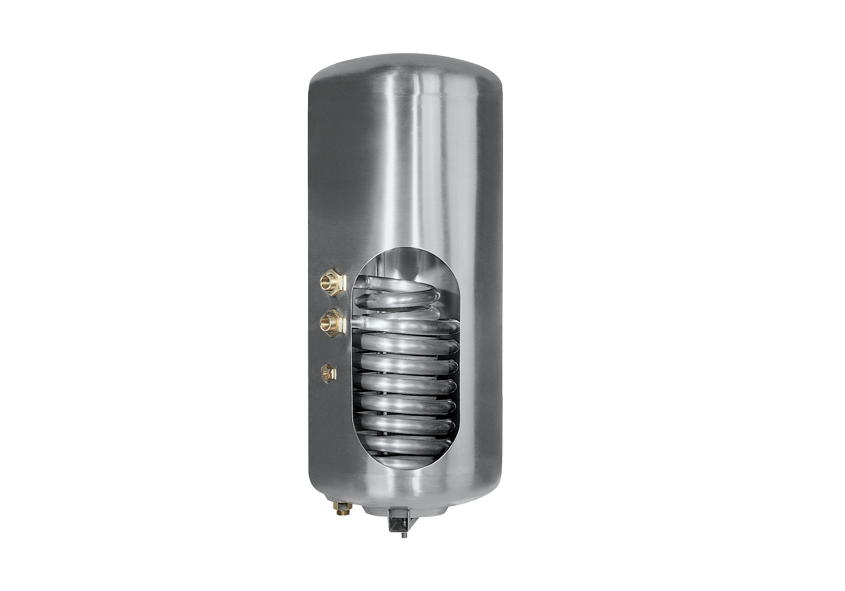

Wall-hung traditional with 45-liter stainless steel built-in storage tank, conventional flue boiler.
The 45 liters stainless steel storage tank guarantees a great production of domestic hot water, making AVIO ECO 24 the ideal solution in those installation systems where several domestic hot water withdrawals are required at the same time.
The compact dimensions allow for an easy installation also in case of boiler replacement.
The control board allows the set up of the delivery and domestic hot water temperature through hands-on knobs. 8 led permits the constant visualization of the boiler's working status and eventual error codes.
The advanced electronics allows the coupling of the boiler with the optional kits for the climatic thermoregulation.

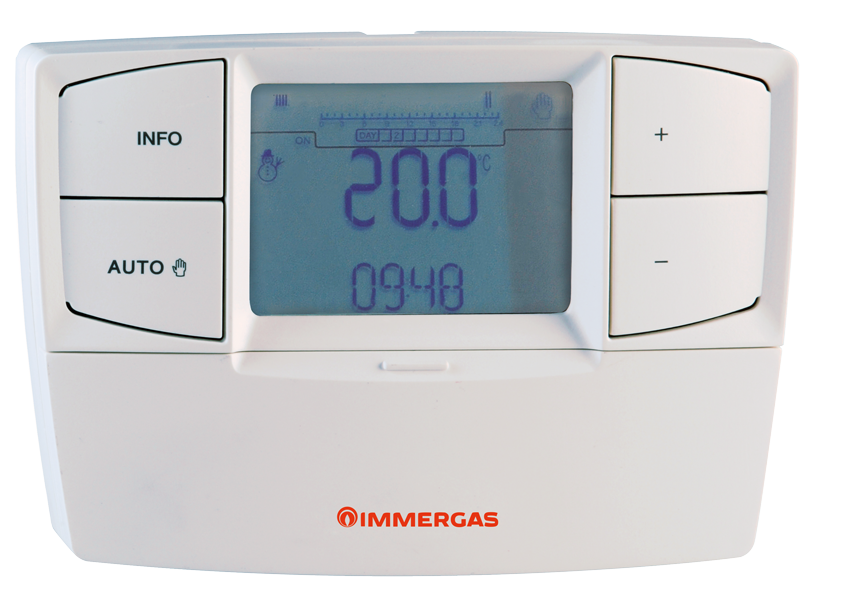

CARV2 (weekly chronothermostat and modulating remote control) Cod.3.021395
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
*as standard
CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control) Cod.3.021623
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%
* default settings
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating energy efficiency 2%* or 3,5%
* default settings
Control box for pumps and zone Cod.3.011668
Maximum three zones.
Available for all models except VICTRIX TERA VIP, VICTRIX TERA/X, MYTHOS HP. NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
DOMINUS interface kit Cod.3.026273
To control heat pumps, system or gas boilers and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the heat pump’s circuit board from any location.
External probe Cod.3.014083
Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%
* as standard
Multi-zone electronic board Cod.3.028444
It can manage 4 zones at the same temperature or 1 mixed and 1 direct zone by remote modulating controls (ie. CAR V2).
For VICTRIX ZEUS, VICTRIX MAIOR TT/X, VICTRIX TT ErP/X, VICTRIX EXA/X, VICTRIX TERA VIP, VICTRIX TERA/PLUS, VICTRIX OMNIA, MYTHOS HP, NIKE/AVIO ECO and NIKE STAR 24.
All-purpose connection kit for wall-hung combi boilers Cod.3.011667
For wall-hung combi boilers and also for wall-hung with built-in storage tank.
Clock kit for Recirculation Cod.3.015431
To be used to manage the recirculation pump.

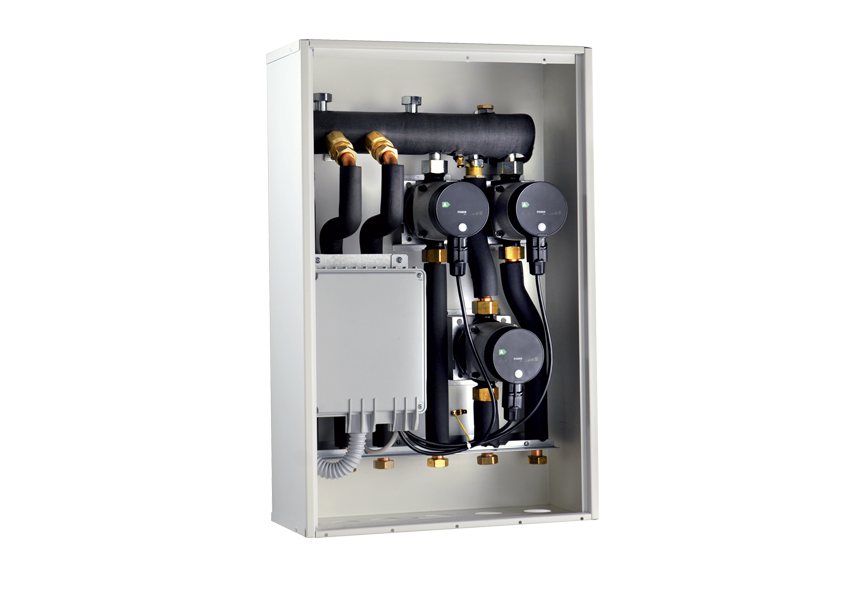

DIM 2 ZONES ErP Cod.3.025607
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
DIM 3 ZONES ErP Cod.3.025608
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
DIM BASIC ErP Cod.3.025606
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold and 1 low-consumption pump.
Hydraulic manifold and 1 low-consumption pump.
DIM H-2LT ErP Cod.3.025610
Kit for mixed systems with 2 low temperature zones and 1 high temperature zone.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps, 2 mixing valves and electronic board.
DIM H-LT ErP Cod.3.025609
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
Mixing valve kit Cod.3.027084
For multi-zone electronic board (code 3.028444)
Recirculation kit Cod.3.015380
Domestic hot water pump included.
Available for ZEUS kW, ZEUS SUPERIOR kW, VICTRIX ZEUS SUPERIOR ErP, VICTRIX ZEUS and AVIO ECO 24.
Recirculation kit for VICTRIX Zeus Cod.3.012944
Only probe pipe, not pump included.
Available for VICTRIX Zeus.
Wall-hung traditional with 45-liter stainless steel built-in storage tank, conventional flue boiler.
The 45 liters stainless steel storage tank guarantees a great production of domestic hot water, making AVIO ECO 24 the ideal solution in those installation systems where several domestic hot water withdrawals are required at the same time.
The compact dimensions allow for an easy installation also in case of boiler replacement.
The control board allows the set up of the delivery and domestic hot water temperature through hands-on knobs. 8 led permits the constant visualization of the boiler's working status and eventual error codes.
The advanced electronics allows the coupling of the boiler with the optional kits for the climatic thermoregulation.
CARV2 (weekly chronothermostat and modulating remote control) Cod.3.021395
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
*as standard
CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control) Cod.3.021623
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%
* default settings
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating energy efficiency 2%* or 3,5%
* default settings
Control box for pumps and zone Cod.3.011668
Maximum three zones.
Available for all models except VICTRIX TERA VIP, VICTRIX TERA/X, MYTHOS HP. NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
DOMINUS interface kit Cod.3.026273
To control heat pumps, system or gas boilers and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the heat pump’s circuit board from any location.
External probe Cod.3.014083
Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%
* as standard
Multi-zone electronic board Cod.3.028444
It can manage 4 zones at the same temperature or 1 mixed and 1 direct zone by remote modulating controls (ie. CAR V2).
For VICTRIX ZEUS, VICTRIX MAIOR TT/X, VICTRIX TT ErP/X, VICTRIX EXA/X, VICTRIX TERA VIP, VICTRIX TERA/PLUS, VICTRIX OMNIA, MYTHOS HP, NIKE/AVIO ECO and NIKE STAR 24.
All-purpose connection kit for wall-hung combi boilers Cod.3.011667
For wall-hung combi boilers and also for wall-hung with built-in storage tank.
Clock kit for Recirculation Cod.3.015431
To be used to manage the recirculation pump.
DIM 2 ZONES ErP Cod.3.025607
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
DIM 3 ZONES ErP Cod.3.025608
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
DIM BASIC ErP Cod.3.025606
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold and 1 low-consumption pump.
Hydraulic manifold and 1 low-consumption pump.
DIM H-2LT ErP Cod.3.025610
Kit for mixed systems with 2 low temperature zones and 1 high temperature zone.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps, 2 mixing valves and electronic board.
DIM H-LT ErP Cod.3.025609
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
Mixing valve kit Cod.3.027084
For multi-zone electronic board (code 3.028444)
Recirculation kit Cod.3.015380
Domestic hot water pump included.
Available for ZEUS kW, ZEUS SUPERIOR kW, VICTRIX ZEUS SUPERIOR ErP, VICTRIX ZEUS and AVIO ECO 24.
Recirculation kit for VICTRIX Zeus Cod.3.012944
Only probe pipe, not pump included.
Available for VICTRIX Zeus.
