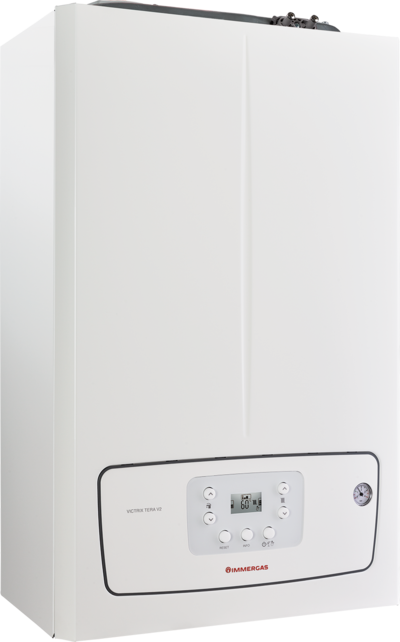

VICTRIX TERA V2 28 EU
Wall-hung combi condensing boiler
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Compact dimensions
Easy installation
User-friendly interface
Technical data VICTRIX TERA V2 28 EU |
|
|---|---|
| Code | 3.032930 |
| custom | Array |
| C.H. Energy class | A |
| D.H.W. Energy class - Stated load profile | A / XL |
| Heat output C.H. kW | 24,0 |
| Heat output D.H.W. kW | 28,0 |
| Dimensions (HxWxD) mm | 748 x 440 x 253 |
| Type | combi |
| Modulating heat output | 18 - 100 % |
| D.H.W. production (∆t 30°C) l/min | 14,1 |
Technical data VICTRIX TERA V2 28 EU |
|
|---|---|
| Code | 3.032930 |
| Product plus | HYDROGEN READY 20% |
| C.H. Energy class | A |
| D.H.W. Energy class - Stated load profile | A / XL |
| Heat output C.H. kW | 24,0 |
| Heat output D.H.W. kW | 28,0 |
| Dimensions (HxWxD) mm | 748 x 440 x 253 |
| Type | combi |
| Modulating heat output | 18 - 100 % |
| D.H.W. production (∆t 30°C) l/min | 14,1 |
Gallery
- Remarkable compactness
- Aesthetics with greater attention to details
- It works with methane, LPG or 20% hydrogen blend
- 94% seasonal efficiency to reach a higher energy classification (A+) in combination with Modulating Remote Controls (ie. CARV2 or SMARTECH PLUS)
- Wide range: 3 combi versions and 2 for heating only which can be combined with storage tanks of various capacities.
- It allows the renovation of old chimneys even in case of small diameters
- It can be connected to collective flues designed in positive pressure, thanks to safety devices equipment and by using a specific kit option
- NOx class 6
CARV2 (weekly chronothermostat and modulating remote control) Cod.3.021395
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
*as standard
CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control) Cod.3.021623
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%
* default settings
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating energy efficiency 2%* or 3,5%
* default settings
DOMINUS interface kit Cod.3.026273
To control heat pumps, system or gas boilers and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the heat pump’s circuit board from any location.
Electrical box cover plate kit for SMARTECH PLUS Cod.3.031013
It allows the covering of the wall hole for electrical boxes type 503.
Expansion kit for SMARTECH PLUS Cod.3.030911
For controlling the temperature in several areas of the house (example living and sleeping areas).
The kit includes: additional SMART thermostat and wi-fi relay (in this case the wi-fi network is required).
External probe Cod.3.014083
Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%
* as standard
GSM telephonic control Cod.3.017182
For buildings not equipped with telephone network. Available for all Immergas models.
Low temperature safety thermostat kit Cod.3.019229
For generators settled up with low temperature
MINI CRD (MINI weekly chronothermostat and modulating remote control) Cod.3.020167
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
Multi-zone electronic board Cod.3.028444
It can manage 4 zones at the same temperature or 1 mixed and 1 direct zone by remote modulating controls (ie. CAR V2).
For VICTRIX ZEUS, VICTRIX MAIOR TT/X, VICTRIX TT ErP/X, VICTRIX EXA/X, VICTRIX TERA VIP, VICTRIX TERA/PLUS, VICTRIX OMNIA, MYTHOS HP, NIKE/AVIO ECO and NIKE STAR 24.
SMARTECH PLUS - SMART remote control Cod.3.030909
Hi-tech smart wireless remote control with Bluetooth technology
The kit includes:
• Chronothermostat (to be placed where you want to adjust the temperature)
• Gateway (to be connected to the boiler or to the internet network at home - power supply 230 V)
• Wall fixing base (with leveling bubble integrated)
• Table stand
• 2 power batteries (as standard)
• Functioning room temperature: 0 - +40 °C
• Protection rating IP 20
Temperature control class: V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%
*default settings.
Solar probe kit Cod.3.021452
For VICTRIX TT SERIES, VICTRIX EXA, VICTRIX TERA, VICTRIX TERA VIP, NIKE ECO 24, MAIOR EOLO and MAGIS COMBO V2
Telephonic control Cod.3.013305
For buildings equipped with telephone network. Available for all Immergas models.
Zone control unit V2 kit Cod.3.030912
Control unit for external circulators/zone valves to manage 3 zones (2 mixed and 1 direct).
Anti-wind vertical terminal kit Ø 80 Cod.3.021721
For condensing boiler < 35 kW.
Concentric horizontal outlet Ø 60/100 Cod.3.016836
for condensing boilers < 35 kW.
Concentric vertical complete kit Ø 60/100 (red ocher colour) Cod.3.016833
for condensing boilers < 35 kW.
Cover kit for VICTRIX TERA V2/PLUS V2 Cod.3.032844
For external installations, in partially protected places
Flanged stub-pipe + bend + extension pipe Ø 80 for flue discharge Cod.3.016365
For condensing boilers < 35 kW.
Horizontal concentric complete kit Ø 60/100 Short Cod.3.024598
Max lenght 11,9 m.
For condensing boiler < 35 kW.
Horizontal concentric complete kit Ø 60/100 with swivel terminal Cod.3.024267
Max lenght 9,9 m.
For condensing boiler < 35 kW except HP models.
Horizontal concentric swivel outlet Ø 60/100 Cod.3.027408
for condensing boilers < 35 kW.
Terminal vertical outlet kit Ø 80 Cod.3.015256
For condensing boiler < 35 kW.
Twin pipes complete kit Ø 80/80 Cod.3.012002
For condensing boiler < 35 kW.
2 litres additional expansion vessel Cod.3.017514
Available for: VICTRIX, VICTRIX X.
All-purpose connection kit for wall-hung combi boilers Cod.3.011667
For wall-hung combi boilers and also for wall-hung with built-in storage tank.
Anti freeze protection kit -15 °C Cod.3.017324
Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.
Anti-scale kit for VICTRIX SUPERIOR, MAIOR TT, TT ErP, TT, EXA ErP, TERA, TERA VIP and MAGIS COMBO V2 Cod.3.017323
For VICTRIX SUPERIOR, MAIOR TT ErP, TT ErP, TT, EXA ErP, TERA, TERA VIP and MAGIS COMBO V2.
Condensate discharge pump kit Cod.3.026374
For wall-hung boilers: compact condensate drain pump kit.
Condensate neutralizer kit Cod.3.019857
Necessary to neutralize the acidity of the condensation. Inclusive of granulate.
DIM 2 ZONES ErP Cod.3.025607
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
DIM 3 ZONES ErP Cod.3.025608
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
DIM BASIC ErP Cod.3.025606
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold and 1 low-consumption pump.
Hydraulic manifold and 1 low-consumption pump.
DIM H-2LT ErP Cod.3.025610
Kit for mixed systems with 2 low temperature zones and 1 high temperature zone.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps, 2 mixing valves and electronic board.
DIM H-LT ErP Cod.3.025609
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
Magnetic cyclone filter kit Cod.3.024176
Magnetic cyclone filter kit to prevent system ferrous residual (only for internal installation).
Available for wall-hung condensing boilers.
Mixing valve kit Cod.3.027084
For multi-zone electronic board (code 3.028444)
Shut off knobs Cod.3.5324
For wall-hung outdoor boilers.
Solar valve Cod.3.018911
Allows the connection between combi boiler and solar system.
Available for: VICTRIX Superior TOP, VICTRIX, MAIOR EOLO, NIKE Mini 28 kW Special, MINI NIKE/EOLO and NIKE/EOLO Star.
kit containing bottom guard for condensing boilers Cod.3.027341
For wall-hung condensing boilers.
