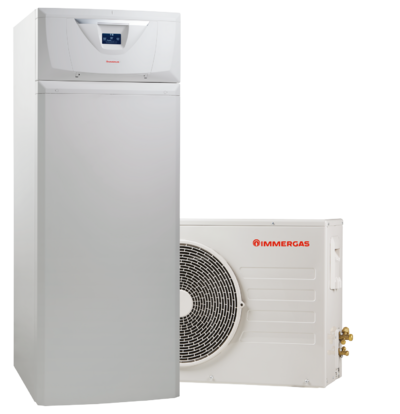

MAGIS HERCULES PRO MINI 6
Spilt type reversible air-to-water inverter driven heat pump system composed by an external unit and a floor standing internal unit
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
High sanitary comfort
Ideal for new buildings
Heating and cooling
Technical data MAGIS HERCULES PRO MINI 6 |
|
|---|---|
| Code | 3.030429 |
| C.H. Energy class at 55 °C | A++ |
| D.H.W. Energy class - Stated load profile | A+ / L |
| Heating output kW | 6,00 |
| Cooling output kW | 6,50 |
| Internal Unit (HxWxD) mm | 1970 x 650 x 913 |
| External Unit (HxWxD) mm | 638 x 880 x 361 |
| Refrigerant gas | R32 |
| COP | 4,92 |
| EER | 4,42 |
| Internal unit empty appliance weight (kg) | 150 |
| External unit empty appliance weight (kg) | 46,5 |
Technical data MAGIS HERCULES PRO MINI 6 |
|
|---|---|
| Code | 3.030429 |
| C.H. Energy class at 55 °C | A++ |
| D.H.W. Energy class - Stated load profile | A+ / L |
| Heating output kW | 6,00 |
| Cooling output kW | 6,50 |
| Internal Unit (HxWxD) mm | 1970 x 650 x 913 |
| External Unit (HxWxD) mm | 638 x 880 x 361 |
| Refrigerant gas | R32 |
| COP | 4,92 |
| EER | 4,42 |
| Internal unit empty appliance weight (kg) | 150 |
| External unit empty appliance weight (kg) | 46,5 |
Gallery
NEW "ALL-IN-ONE" COMPACT SOLUTION
MAGIS HERCULES PRO MINI is the new compact version available in single-phase models of 6 and
9 kW, with R32 refrigerant gas.
Designed for major renovations of medium-sized homes as well as for new buildings also where
the external temperatures can be particularly freezing. The casing of the indoor unit contains a
domestic hot water boiler with electric resistance in order to work simultaneously on DHW and the
system, inertial storage and circulator for one plant area. The "EH" versions are equipped with
CH electric heater as standard. The recirculation pump (optional) can also be integrated inside the
casing.
2 relays board kit Cod.3.031943
For TRIO PACK, TRIO HYDRO and MAGIS HERCULES PRO MINI
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating seasonal energy efficiency 2%* or 3,5%
* default settings
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
ON/OFF room thermostat.
Class of device IV* or VII
Contribution to the environmental heating energy efficiency 2%* or 3,5%
* default settings
DOMINUS interface kit Cod.3.026273
To control heat pumps, system or gas boilers and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the heat pump’s circuit board from any location.
External probe Cod.3.015266
To be used when external probe as standard in outdoor unit is not correctly exposed.
Temperature control class II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4 or 3,5%
* default settings
Low temperature safety thermostat kit Cod.3.019229
For generators settled up with low temperature
Mod-bus temperature and humidity sensor Cod.3.030992
To be used with radiant systems that also work in cooling mode
Temperature control class V or VI*
Contribution to seasonal space heating energy efficiency
3% or 4%*
* default settings
Remote Control Panel Cod.3.030863
Modulating chronotermostat, remote control with temperature/humidity sensor
Temperature control class V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%
* default settings
Room hygrostat Cod.3.023302
To be used with radiant systems that also work in cooling mode.
System delivery probe kit Cod.3.030913
To be positioned after the heating system manifold.
3 kW - Integration electric heater kit Cod.3.030899
For MAGIS HERCULES PRO and MAGIS HERCULES PRO MINI.
3-way valve kit Cod.3.020632
Dehumidifier back frame kit Cod.3.022146
Dehumidifier front grille kit Cod.3.022147
Dehumidifier kit Cod.3.021529
Only for recessed installation with codes 3.022146 and 3.022147
Distribution manifold for 1 direct and 1 mixed temperature zones Cod.3.026301
Kit to be used without system manager controller.
Dedicated to MAGIS PRO V2 4-6-9, MAGIS COMBO V2 4-6-9 and MAGIS HERCULES PRO MINI.
Double electronic anode kit Cod.3.025003
Double electronic anode kit for OMNISTOR, INOXSTOR V2, MAGIS HERCULES PRO and MAGIS HERCULES PRO MINI
External cover kit with acoustical insulation for ZENITAIR-MONO Cod.3.030636
Anti-insect net and anti-wind in pre-painted steel, alternative to the one available with ZENITAIR-MONO.
HYDRO 3 Cod.3.033625
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO 4 Cod.3.033626
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO FS 200 Cod.3.028500
Floor standing hydronic fancoil
HYDRO FS 400 Cod.3.028501
Floor standing hydronic fancoil
HYDRO FS 600 Cod.3.028502
Floor standing hydronic fancoil
HYDRO FS 800 Cod.3.028503
Floor standing hydronic fancoil
HYDRO FS 1000 Cod.3.028505
Floor standing hydronic fancoil
Integration electric resistance kit 2, 4 or 6 kW for heating system Cod.3.021525
For internal installation
Shut off knobs 1 Cod.3.030860
Shut off knobs, 1" connections (for zones 2 and 3 only).
ZENITAIR MONO Cod.3.030601
Decentralised mechanical ventilation unit, easy to install, with alternate flow and heat recovery core.
Multifunction remote controller, with LCD display to visualise the status of the unit supplied as standard.
